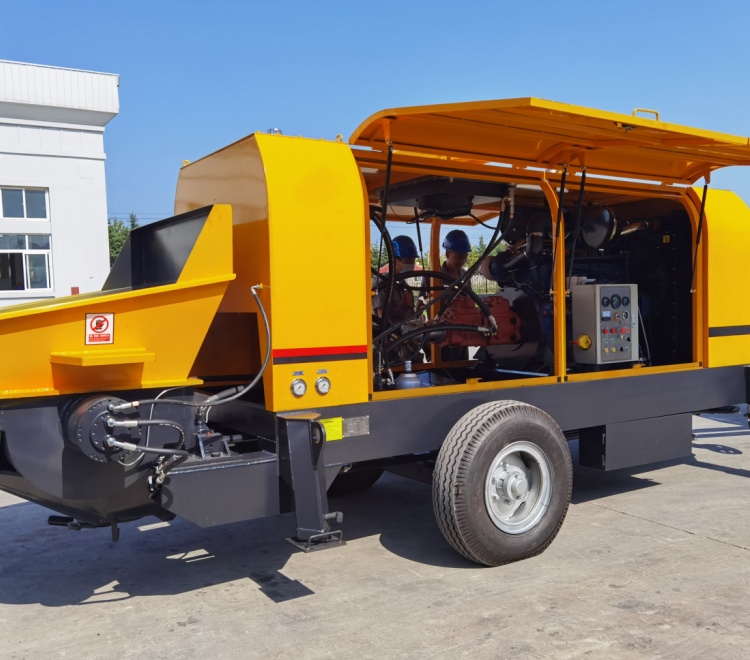

Concrete Trailer Pump For Sale
“Tow Anywhere, Pump Instantly. The Ultimate Concrete Placement Solution.“
Ideal for Rural Housing, High-Rise Buildings, Tunnels, and Remote Infrastructure Projects.
- Output Capacity: 30 ~ 120 m³/h
- Pumping Range: 120-500 m
- Engine: Diesel or Electric Optional
Concrete Trailer Pumps
Achieve high-volume, high-pressure concrete placement with our heavy-duty trailer pumps. Eliminate the need for cranes, hoists, and manual transport on complex job sites. Engineered to boost pouring efficiency, it allows you to pump concrete continuously to extreme heights and long distances with remarkable stability and minimal downtime.
Max. Output
Power
Pumping Distance
Max. Aggregate
30 – 120m³/h
Diesel (Weichai/Cummins) or Electric
200m Horizontal / 50m Vertical
≤50mm (Gravel/Pebble)
Using Applications:
High-rise apartment buildings / Tunnels and bridges / Commercial foundations / Large civil infrastructure / Remote and hard-to-reach construction sites.
2026-2030 Concrete Trailer Pump Market Outlook
As we move deeper into the 2026-2030 construction cycle, the global demand for concrete trailer pumps is experiencing a massive surge. Driven by rapid urbanization, mega-infrastructure projects, and shifting labor dynamics, the way we pour concrete is changing.
Here are the key market trends shaping the next five years, and how investing in a modern trailer pump secures your competitive edge:
1. The Mega-Infrastructure & High-Rise Boom
- The Trend: Cities are growing denser, and infrastructure is expanding underground. The next five years will see a heavy concentration of high-rise commercial buildings, subway systems, long-distance tunnels, and high-speed rail networks.
- The Impact: Traditional concrete pouring methods (like cranes or manual transport) are too slow and dangerous for these modern projects. Contractors now require equipment capable of extreme vertical and horizontal pumping distances (up to 360m high and 1200m far). High-pressure trailer pumps will be the mandatory backbone of any major civil engineering site.
2. Overcoming the Global Labor Shortage
- The Trend: Across the globe, the construction industry is facing an unprecedented shortage of skilled manual labor, driving up daily wage costs significantly.
- The Impact: Mechanization is the only way to protect your profit margins. A single trailer pump, operated by just 1-2 workers, can replace a dozen manual laborers pushing wheelbarrows. By boosting pouring efficiency by over 300%, contractors can deliver projects faster, avoid delayed-schedule penalties, and drastically lower their labor OPEX.
3. Stricter Environmental & Emission Standards
- The Trend: Governments worldwide are enforcing stricter noise and carbon emission regulations in urban construction zones.
- The Impact: The market is rapidly shifting toward cleaner power sources. While highly efficient, low-emission Diesel engines (like Cummins and Weichai) remain popular for remote sites, the demand for Electric-Powered Trailer Pumps is skyrocketing in city centers. Having the option to choose electric models ensures you win bids for strict government and green-building projects.
4. The Rise of “Smart” Pumping
- The Trend: Equipment buyers are looking for more than just raw power; they want reliability and data.
- The Impact: Modern trailer pumps equipped with advanced PLC control panels, automatic reverse-pumping (to prevent pipe blockages), and remote controls are becoming the industry standard. This smart technology minimizes downtime, reduces wear-part consumption, and ensures a continuous, smooth pour.
Strategic Advice for Contractors (2026-2030):
How to Future-Proof Your Fleet
To win the highly profitable contracts of tomorrow, you need equipment that won’t hold you back today. Investing in a high-capacity, high-pressure trailer pump now means you are ready to bid on everything from remote bridges to 50-story skyscrapers.
Don’t get left behind with outdated pouring methods.
Upgrade your fleet with our high-pressure concrete trailer pumps and secure your position in the next decade of construction.
Major Types For Sale
Best for remote infrastructure, road construction, and rugged sites where the power grid is completely inaccessible or highly unstable.

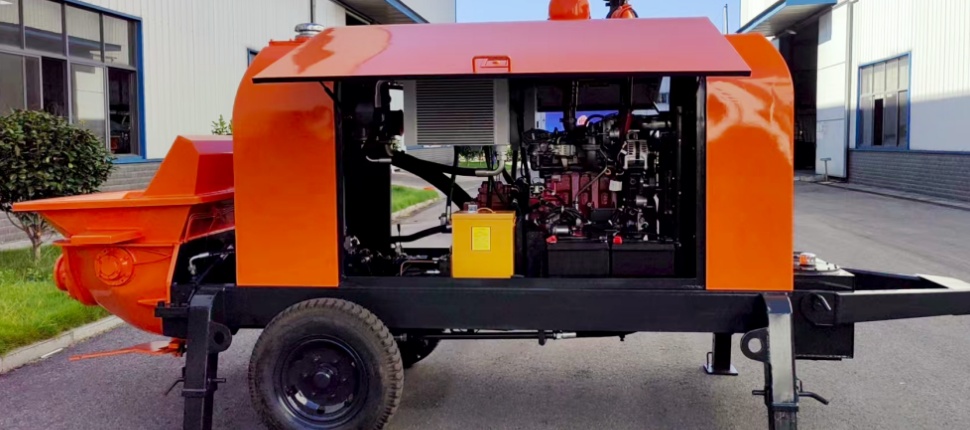

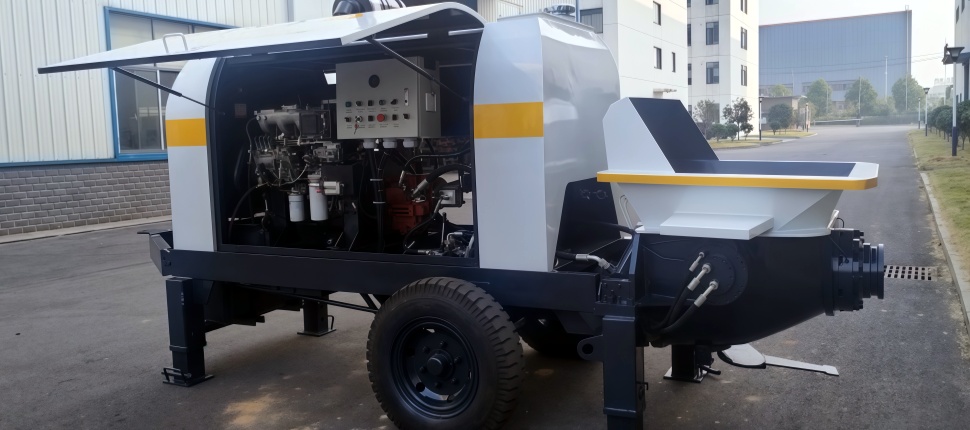

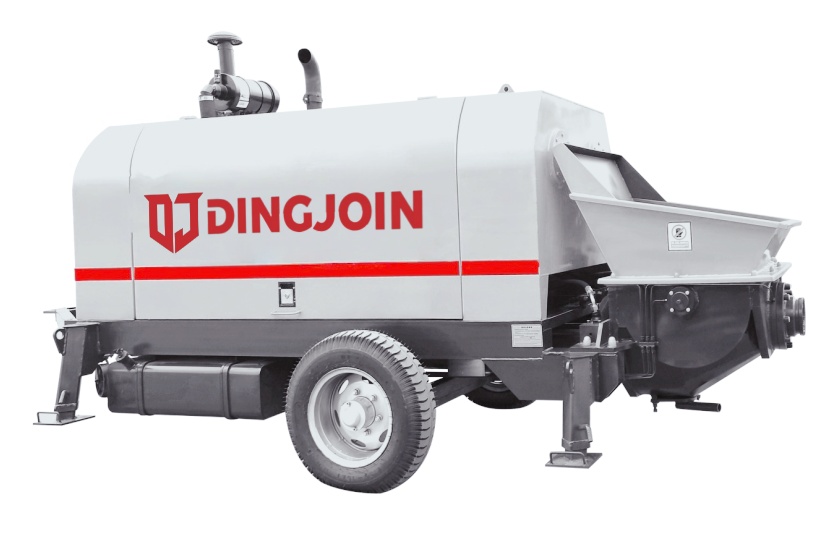

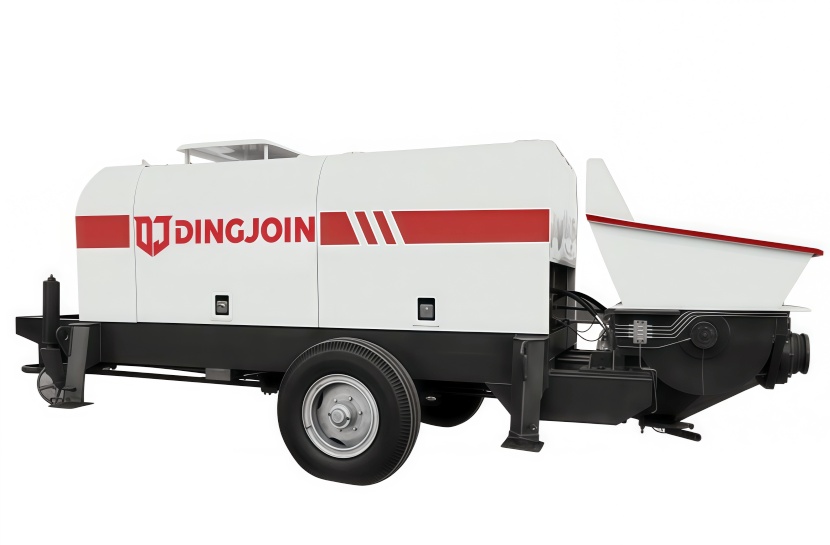

Diesel Concrete Trailer Pump
Models: HBTSB40 / HBTSB60/ HBT80 / HBT90C
Key Specs:
Output: 30-90m³/h
Power: Diesel Engine
The ultimate off-grid pouring solution. Powered by world-class Weichai or Cummins diesel engines, it guarantees continuous, high-pressure pumping performance and maximum reliability in the most remote and demanding environments.
Best for urban high-rise buildings, long tunnels, and commercial projects with a stable 3-phase power supply and strict emission limits.

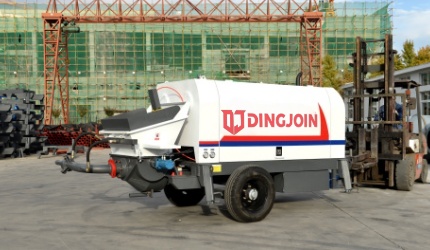

Electric Concrete Trailer Pump
Models: HBTS30 / HBTS40 / HBTS50 / HBTS60 / HBTS80
Key Specs:
Output: 30-90m³/h
Power: Electric Motor
The eco-friendly, cost-effective choice for modern city projects. Featuring ultra-low noise, zero carbon emissions, and significantly lower daily operational costs, it delivers powerful and highly stable concrete placement wherever grid electricity is available.
Specifications of Concrete Trailer Pumps
Specifications of Diesel Concrete Trailer Pump
| Model | HBTSB40-10-82R | HBTSB60-13-129R | HBT80-16-129C | HBT90C-18-176R | |
| Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/50 | 95/55 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/7.6 | 7月13日 | 16/8.6 | 18/9.3 |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve | |
| Concrete cylinder diameter x stroke | mm | Φ180 x 1200 | Φ200 x 1650 | Φ200 x 1800 | Φ200 x 1800 |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800 x 1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | Φ180 |
| Diesel engine model | Weifang Delier 6105ZB | Wechai | Weichai | Weichai | |
| Electrical engineering power | KW | 82 | 129 | 129 | 176 |
| Rotate speed | r/min | 2100 | 2200 | 2200 | 2200 |
| Circuit type | Open circuit | Open circuit | Open circuit | Open Circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | 32 |
| Mixing system pressure | MPa | 6-8 | 6-8 | 8 | 8 |
| Capacity of oil tank | L | 370 | 370 | 580 | 580 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/800 | 360/1200 | 360/1200 |
| Max. aggregate diameter | mm | Slick/scree:40/50 | Slick/scree:40/50 | Slick/scree:40/50 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | Φ125 |
| Dimensions: length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6000×2200×2250 | 6000×2200×2250 |
Specifications of Electric Powered Concrete Trailer Pump
| Item | HBTS30 | HBTS40 | HBTS50 | HBTS60 | HBTS80 |
| Max. Theoretical Throughput (m3/h) | 30 | 40 | 50 | 60 | 88 |
| Max. Pumping Pressure (MPa) | 10 | 10 | 10 | 13 | 16 |
| Max. Theoretical Vertical Conveying Distance (m) | 140 | 200 | 120 | 280 | 300 |
| Max. Theoretical Horizontal Conveying Distance (m) | 450 | 800 | 500 | 1000 | 1200 |
| Max. Aggregate Diameter (mm) | 30 | 40 | 50 | 30 | 30 |
| Conveying Pipe Radius (mm) | 100 | 160 | 160 | 180 | 180 |
| Number of Conveying Cylinder (piece) | 2 | 2 | 2 | 2 | 2 |
| Conveying Cylinder Bore X Piston Stroke (mm) | Φ140×1000 | Φ160×1000 | Φ200×1000 | Φ200×1600 | Φ200×1800 |
| Hydraulic Oil Tank Capacity (L) | 250 | 400 | 500 | 600 | 800 |
| Hopper Capacity (m3) | 0.35 | 0.4 | 0.5 | 0.6 | 0.8 |
| Power of Main Electric Motor (kw) | 45 | 45 | 55 | 90 | 110 |
Smooth Concrete Flow, Zero Blockages.
The core of our trailer pump features a heavy-duty S-tube valve with an automatic wear-clearance compensation mechanism. It ensures a seamless flow of concrete and effortlessly handles tough aggregates (up to 50mm). Equipped with an intelligent reverse-pumping function, operators can quickly clear temporary pipeline clogs, guaranteeing continuous and smooth pouring.
Unstoppable Power for Extreme Distances.
Utilizing an advanced open dual-pump, dual-circuit hydraulic system, the pumping and distribution valve circuits operate completely independently. This design drastically reduces system heat and guarantees highly stable, high-pressure output. Whether you are pumping 360 meters vertically or 1,200 meters horizontally, the power delivery remains consistent and reliable.
Precision Control at Your Fingertips.
Equipped with an intelligent Siemens/Omron PLC system, the pump monitors all operational data in real-time. The user-friendly control panel features automatic fault self-diagnosis to prevent costly downtime. It also includes an industrial-grade wireless remote control, allowing a single operator to manage the entire pouring process safely from a distance.
Less Manual Maintenance, Longer Lifespan.
Forget the hassle of manual greasing. Our smart centralized lubrication system automatically delivers the precise amount of grease to all critical moving parts at regular intervals during operation. This highly efficient design minimizes mechanical friction, prevents human error, and significantly extends the service life of the machine.
Built to Withstand the Toughest Abrasions.
The spectacle wear plate and cutting ring are forged from high-grade hard alloy materials, offering exceptional resistance to the intense friction of high-volume concrete pumping. By maximizing the lifespan of these critical components, we help you slash spare part replacement costs and dramatically lower your operational expenditure (OPEX).
Features of Concrete Mixer Pump
Advanced S-Valve
Smooth Concrete Flow, Zero Blockages.
The core of our trailer pump features a heavy-duty S-tube valve with an automatic wear-clearance compensation mechanism. It ensures a seamless flow of concrete and effortlessly handles tough aggregates (up to 50mm). Equipped with an intelligent reverse-pumping function, operators can quickly clear temporary pipeline clogs, guaranteeing continuous and smooth pouring.

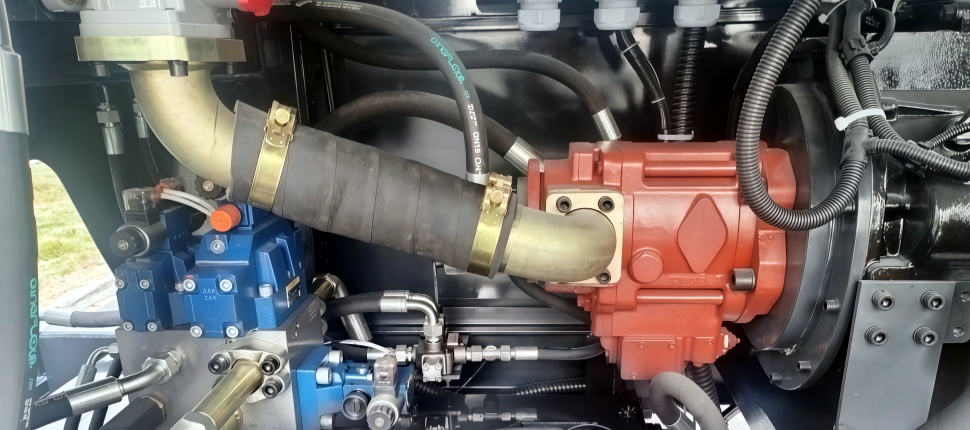

Dual Hydraulic System
Unstoppable Power for Extreme Distances.
Utilizing an advanced open dual-pump, dual-circuit hydraulic system, the pumping and distribution valve circuits operate completely independently. This design drastically reduces system heat and guarantees highly stable, high-pressure output. Whether you are pumping 360 meters vertically or 1,200 meters horizontally, the power delivery remains consistent and reliable.

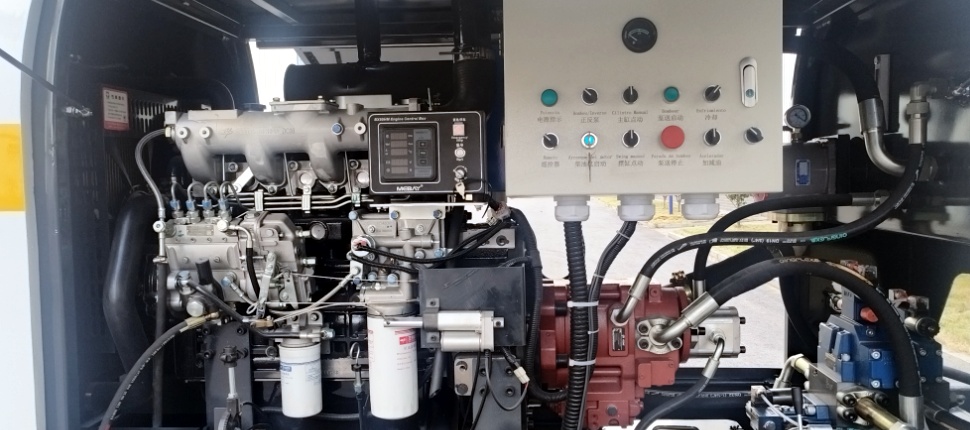

Smart PLC Control
Precision Control at Your Fingertips.
Equipped with an intelligent Siemens/Omron PLC system, the pump monitors all operational data in real-time. The user-friendly control panel features automatic fault self-diagnosis to prevent costly downtime. It also includes an industrial-grade wireless remote control, allowing a single operator to manage the entire pouring process safely from a distance.
Auto-Lubrication
Less Manual Maintenance, Longer Lifespan.
Forget the hassle of manual greasing. Our smart centralized lubrication system automatically delivers the precise amount of grease to all critical moving parts at regular intervals during operation. This highly efficient design minimizes mechanical friction, prevents human error, and significantly extends the service life of the machine.
Premium Wear Parts
Built to Withstand the Toughest Abrasions.
The spectacle wear plate and cutting ring are forged from high-grade hard alloy materials, offering exceptional resistance to the intense friction of high-volume concrete pumping. By maximizing the lifespan of these critical components, we help you slash spare part replacement costs and dramatically lower your operational expenditure (OPEX).
Dingjoin Concrete Trailer Pump Prices & ROI Analysis
Stop letting high labor costs and expensive equipment rentals eat into your profit margins. Discover how investing in a Dingjoin trailer pump minimizes your Total Cost of Ownership (TCO) and dramatically accelerates your project’s profitability.
The Investment: Estimated Price Ranges (CAPEX)
- Entry-Level (30 – 40 m³/h):
- Typical Range: $15,000 – $25,000
- Best for: Rural housing, 5 to 10-story buildings, and small civil projects.
- Mid-to-High Volume (60 – 90 m³/h):
- Typical Range: $25,000 – $45,000+
- Best for: High-rise commercial buildings (up to 60 floors), long-distance tunnels, and mega-infrastructure.
(Note: Electric motor models are generally more cost-effective upfront. Diesel models featuring premium Weichai or Cummins engines require a slightly higher initial investment but offer unmatched off-grid flexibility.)
The ROI Math: Where Dingjoin Actually Saves You Money
The initial purchase price is just a fraction of the financial picture. The true value of a Dingjoin trailer pump lies in how quickly it eliminates your daily operational bleed (OPEX):
A. Eliminate Expensive Boom Pump Rentals
- The Pain Point: Renting a boom pump truck costs anywhere from $800 to $1,500+ per day, plus operator fees. Over a 6-month high-rise project, rental fees become a massive financial drain.
- The Dingjoin Solution: Owning a trailer pump requires a one-time CAPEX. Once purchased, you can pump continuously every day for just the cost of fuel/electricity and basic wear parts. It pays for itself within the first few months of a major project.
B. Slashed Labor Costs
- The Pain Point: Moving concrete via tower cranes, buckets, or manual wheelbarrows requires a massive crew, slowing down progress and inflating daily wages.
- The Dingjoin Solution: A trailer pump requires only 1 machine operator and 2-3 workers at the hose end. You immediately cut your pouring crew size by 70%, solving the labor shortage problem while saving thousands of dollars a week.
C. Faster Project Completion = No Delay Penalties
Time is money. By pumping up to 90 cubic meters per hour continuously, you finish slabs and columns in record time. Faster project turnaround means earlier payouts from developers and zero risk of delayed-schedule penalties.
Expected Payback Period
Based on feedback from global contractors using Dingjoin trailer pumps, the return on investment is exceptionally fast:
Average ROI Timeframe: 3 to 6 Months
Thanks to the immediate elimination of heavy equipment rental fees and the drastic reduction in manual labor costs, your Dingjoin trailer pump stops being an expense and becomes a profit-generating asset in less than half a year.
Tailored Solutions For Every Industry
🏢 For High-Rise Construction
Boom pumps can’t reach beyond 60-70 meters, and using tower cranes with buckets is far too slow for massive floor slabs. Our high-pressure trailer pumps solve this by effortlessly pushing concrete vertically up to 360 meters (approx. 60+ floors). Ensure continuous, rapid pouring for multi-story apartments and commercial towers, drastically slashing your dependency on cranes and expensive manual labor.
🚇 For Underground & Tunneling
Pumping concrete in tight underground spaces requires extreme horizontal reach. With a maximum horizontal pumping distance of up to 1,200 meters, our trailer pumps eliminate the need for transit mixers to maneuver inside dangerous, confined shafts. It is the ultimate highly efficient solution for tunnel lining, subway stations, and underground mine backfilling.
🌉 For Large-Scale Infrastructure
Massive foundation slabs, highway overpasses, and bridge piers demand uninterrupted, high-volume concrete placement to prevent structural cold joints. Delivering an impressive output of up to 90m³/h, our heavy-duty trailer pumps are engineered for continuous 24/7 operation. They provide the relentless stability required for strict government and civil engineering standards.
⛰️ For Remote Site Construction
Building dams, wind turbine foundations, or industrial plants in mountainous areas poses huge logistical and power supply challenges. Equipped with world-class Cummins or Weichai diesel engines, our off-road-ready trailer pumps deliver unstoppable, high-pressure pumping power without relying on a local electrical grid. Built tough for the harshest environments.
🧱 For Precast & Concrete Supply
Perfect for precast yards or starting a micro-batching business. Unlike stationary plants that require high setup costs and land, our mobile unit offers precision weighing for specialized mix recipes (dry-mix or wet). It allows you to produce high-quality concrete blocks, pipes, or barriers on-demand, scaling your production volume without the heavy capital expenditure.
Tailored Solutions For Every Industry
High-Rise & Commercial Buildings
🏢 For High-Rise Construction
Boom pumps can’t reach beyond 60-70 meters, and using tower cranes with buckets is far too slow for massive floor slabs. Our high-pressure trailer pumps solve this by effortlessly pushing concrete vertically up to 360 meters (approx. 60+ floors). Ensure continuous, rapid pouring for multi-story apartments and commercial towers, drastically slashing your dependency on cranes and expensive manual labor.
Tunnels, Subways & Mining
🚇 For Underground & Tunneling
Pumping concrete in tight underground spaces requires extreme horizontal reach. With a maximum horizontal pumping distance of up to 1,200 meters, our trailer pumps eliminate the need for transit mixers to maneuver inside dangerous, confined shafts. It is the ultimate highly efficient solution for tunnel lining, subway stations, and underground mine backfilling.
Bridges & Civil Infrastructure
🌉 For Large-Scale Infrastructure
Massive foundation slabs, highway overpasses, and bridge piers demand uninterrupted, high-volume concrete placement to prevent structural cold joints. Delivering an impressive output of up to 90m³/h, our heavy-duty trailer pumps are engineered for continuous 24/7 operation. They provide the relentless stability required for strict government and civil engineering standards.
Remote & Off-Grid Projects
⛰️ For Remote Site Construction
Building dams, wind turbine foundations, or industrial plants in mountainous areas poses huge logistical and power supply challenges. Equipped with world-class Cummins or Weichai diesel engines, our off-road-ready trailer pumps deliver unstoppable, high-pressure pumping power without relying on a local electrical grid. Built tough for the harshest environments.
Why Dingjoin Concrete Trailer Pumps Outperforms the Competition
1. Global Tier-1 Components (No Compromise on Power)
The Competitors: Cut corners by using generic, unbranded hydraulic pumps and weak engines that lead to pressure drops and sudden breakdowns.
The Dingjoin Edge: We partner exclusively with industry giants. Equipped with Kawasaki or Rexroth main hydraulic pumps, and powered by genuine Cummins or Weichai engines, our trailer pumps guarantee relentless, stable high-pressure output—even when pumping 360 meters straight up.
2. Intelligent Anti-Blocking Technology (Zero Downtime)
The Competitors: Cut corners by using generic, unbranded hydraulic pumps and weak engines that lead to pressure drops and sudden breakdowns.
The Dingjoin Edge: Pipe blockages kill your daily profits. Our pumps feature an advanced Siemens/Omron PLC system with an Auto-Reverse Pumping Function. The moment sensors detect an abnormal pressure spike, the system automatically reverses the stroke to break up the aggregate jam, ensuring an uninterrupted, smooth pour.
3. Ultra-Durable Wear Parts (Slashing Your OPEX)
The Competitors: Use cheap steel for wear plates, forcing you to constantly buy replacement parts and halt production.
The Dingjoin Edge: Concrete is highly abrasive, so we over-engineer our wear parts. Our spectacle wear plates and cutting rings are forged from premium tungsten carbide alloys. They consistently outlast standard industry parts by up to 30%, drastically reducing your maintenance downtime and Cost-Per-Yard.
4. European Quality, Asian Pricing (The ROI Advantage)
The Competitors: Premium Western brands charge a massive premium just for the logo, destroying your ROI timeline.
The Dingjoin Edge: Why overpay? Dingjoin delivers the exact same pumping distances, volumes, and reliability as top-tier German brands, but at a fraction of the CAPEX. You get world-class performance with an exceptionally fast 3 to 6 months payback period. It is the smartest financial decision for ambitious contractors.
How Can Concrete Trailer Pumps Work With Other Construction Machinery

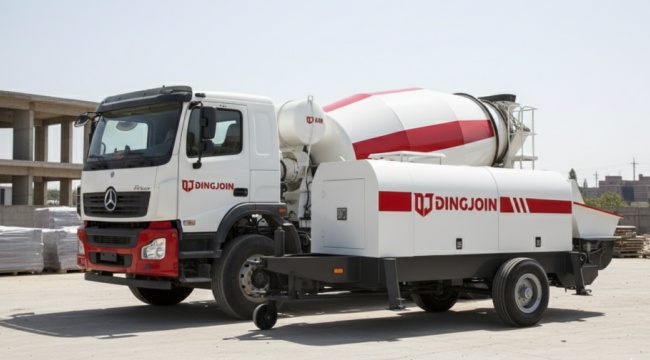

1. The Perfect Match: Concrete Transit Mixers
- The Workflow: The transit mixer truck backs directly up to the trailer pump and continuously discharges fresh concrete into the pump’s wide-mouth hopper.
- The Synergy Advantage: This is the most critical partnership on site. The trailer pump acts as a high-pressure relay station. By establishing a rotating schedule of 2 to 3 mixer trucks, you achieve a 100% continuous pouring cycle. This eliminates the risk of structural cold joints and maximizes the daily output of both your trucks and the pump.

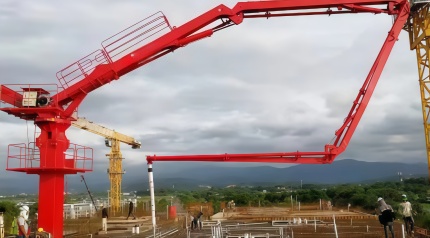

2. The High-Rise Combo: Concrete Placing Booms
- The Workflow: The Dingjoin trailer pump stays on the ground, pushing concrete hundreds of meters vertically through steel pipelines. At the top level of the building, a separate Mobile or Climbing Placing Boom (Spider Boom) connects to the pipe and distributes the concrete horizontally.
- The Synergy Advantage: This is the ultimate high-rise solution. The pump provides the brute vertical force, while the placing boom provides 360-degree precision distribution across massive floor slabs. Together, they completely eliminate the need for tower cranes and concrete buckets, slashing pouring time by over 50%.

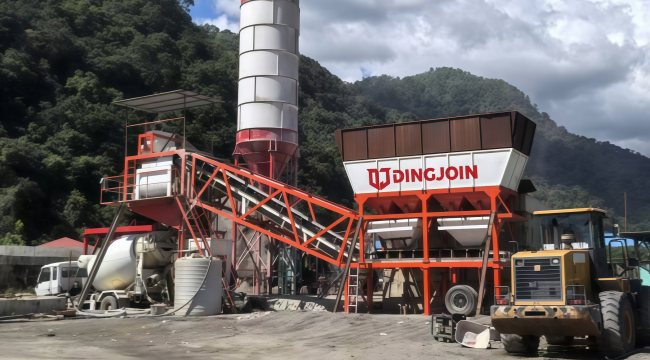

3. The Mega-Project Setup: On-Site Batching Plants
- The Workflow: For remote infrastructure (dams, long tunnels) or massive commercial builds, an on-site batching plant produces the concrete, which is immediately transferred to the trailer pump via a short mixer run or direct chute.
- The Synergy Advantage: This creates an unbeatable closed-loop production and pumping system. You gain absolute control over concrete quality and hydration time, while the trailer pump instantly transports the massive volume of produced concrete exactly where it’s needed. Zero transportation delays, maximum profitability.

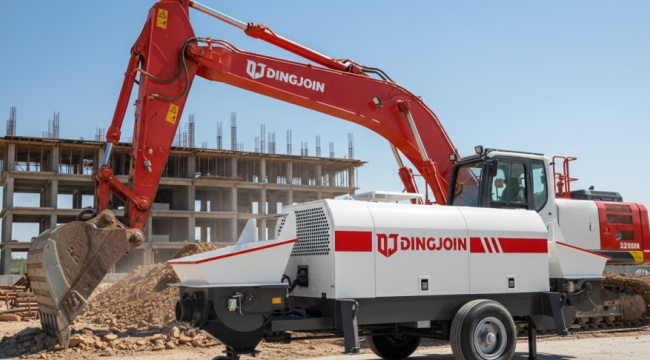

4. Auxiliary Support: Tower Cranes & Excavators
- The Workflow: While they don’t handle the concrete directly, tower cranes are essential for safely lifting and securing the vertical heavy-duty delivery pipes to the building’s scaffolding. Meanwhile, on the ground, a standard excavator or loader can quickly tow the wheeled trailer pump into the optimal working position within minutes.
- The Synergy Advantage: Fast setup and rapid site deployment. Your existing lifting and earthmoving fleet ensures the pumping infrastructure is established quickly and safely before the pour even begins.

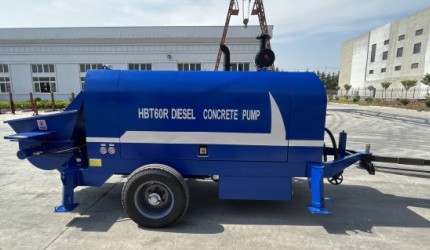

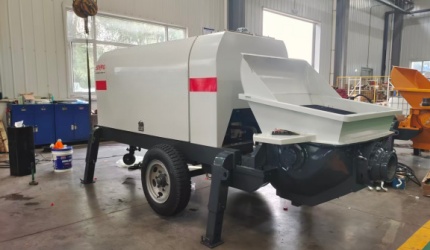

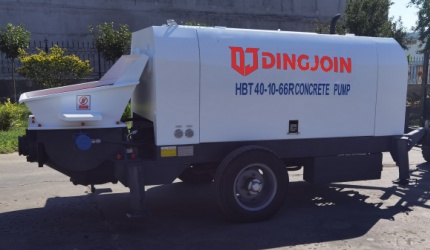

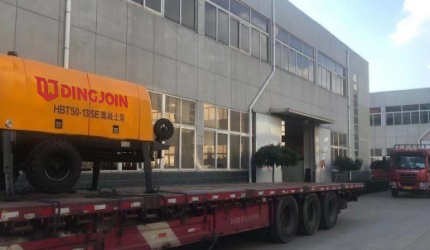

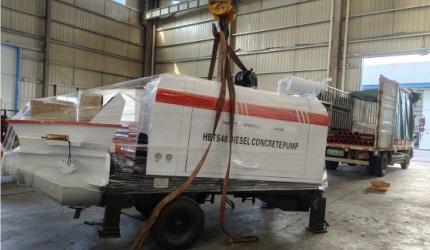

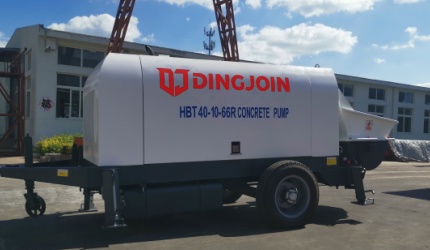

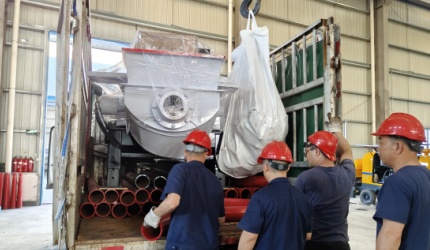

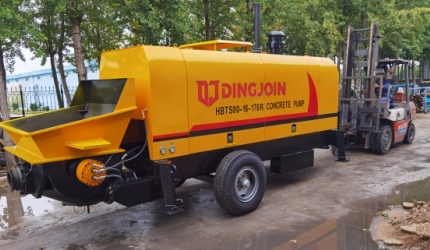

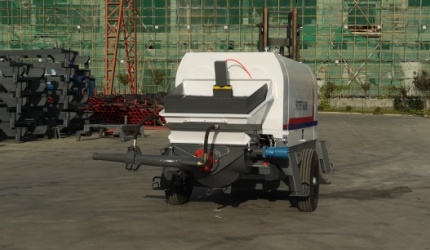

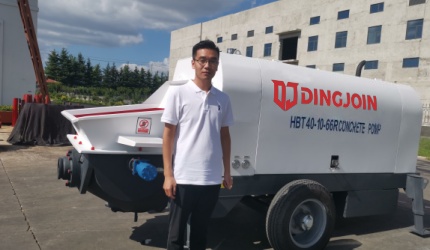

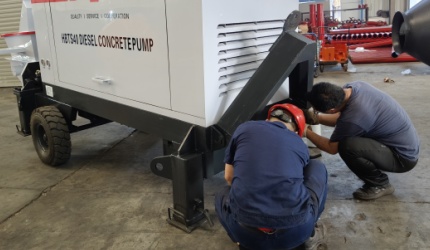

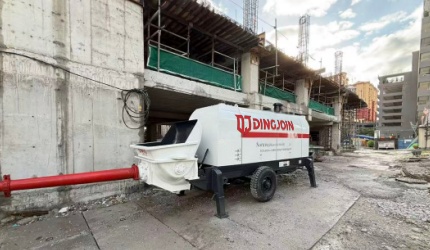

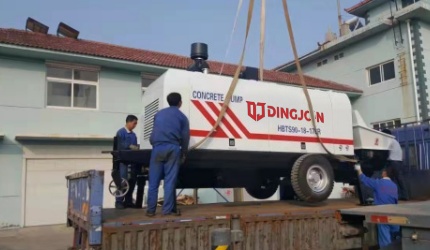

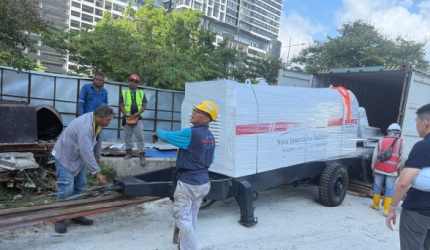

Global Cases of Concrete Mixer Pumps
While Dingjoin has established a commanding market leadership across Latin America and Africa—conquering some of the world’s toughest high-altitude and off-road environments—our success is truly global. Our concrete mixer pumps are also widely deployed and highly rated by contractors throughout Asia and beyond. No matter the continent, from remote mining sites to fast-paced urban projects, customers worldwide trust Dingjoin for uncompromised performance and seamless international logistics.
