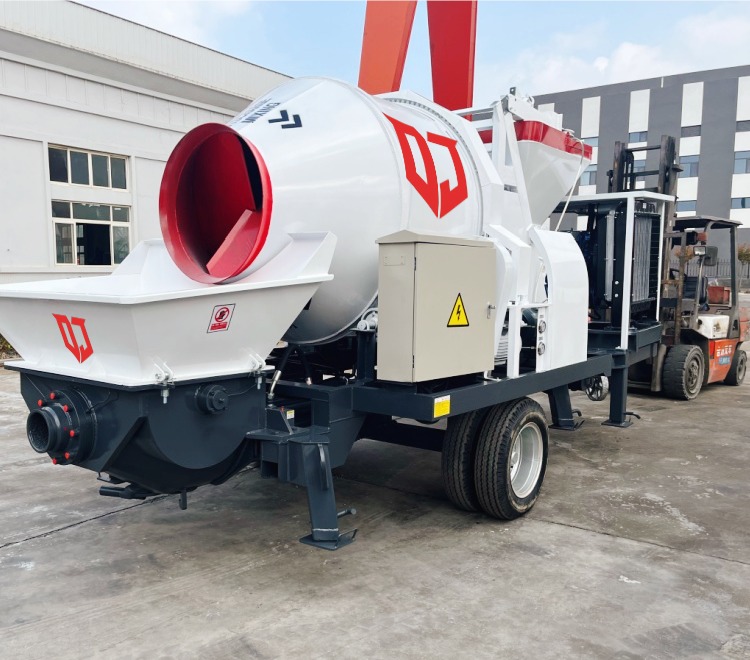

Concrete Mixer Pump For Sale
“Mix On-Site, Pump Instantly. The Ultimate 2-in-1 Concrete Solution.“
Ideal for Rural Housing, Mid-Rise Buildings, Tunnels, and Remote Infrastructure.
- Output Capacity: 30 ~ 40m³/h (Continuous Pouring)
- Pumping Range: 200m Horizontal / 50m Vertical (approx. 15 Floors)
- Engine: Diesel (Weichai/Cummins) or Electric Optional
Concrete Mixer Pumps
Seamlessly combine concrete mixing and high-pressure pumping in one compact unit. Eliminate manual transport and hoists forever. Designed to boost efficiency by 300% for rural housing and civil engineering, allowing you to mix and pump continuously with a single machine.
Max. Output
Power
Pumping Distance
Max. Aggregate
30 – 40m³/h
Diesel (Weichai/Cummins) or Electric
200m Horizontal / 50m Vertical
≤40mm (Gravel/Pebble)
Using Applications:
Rural housing construction (up to 12 floors) / Small bridges / Tunnel lining / Water conservancy / Floor heating projects.
2026-2030 Concrete Mixer Pump Market Outlook
The global concrete mixer and pump market is surging, projected to hit USD 76.3 billion by 2030 with a robust 8.41% CAGR. This growth signals a definitive industry shift: contractors are aggressively replacing manual labor with mobile mixer pumps, which are expected to dominate 62% of the market share by 2030.
Driven by rapid urbanization in Asia-Pacific and infrastructure booms, the ‘2-in-1’ mixer pump has become indispensable. It directly addresses the industry’s biggest pain point—labor shortage—by offering a high-efficiency alternative to traditional static plants.
Furthermore, the green transition is accelerating. The market penetration of electric models is forecast to double to 30%, driven by stricter environmental regulations. For contractors, the message is clear: investing in this automated, eco-friendly technology today is the only way to secure competitive margins in the coming decade.
Major Types For Sale
Best for rural housing and remote infrastructure where electricity is unavailable or unstable.

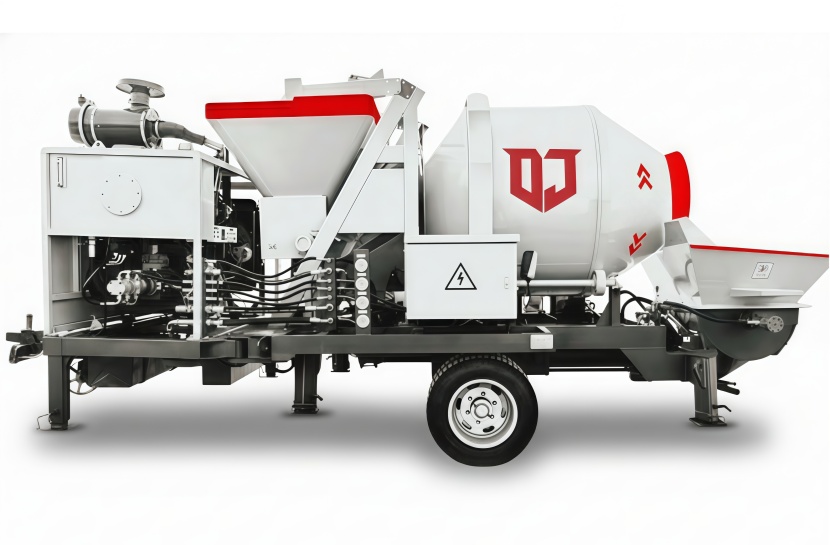

Diesel Concrete Mixer Pump
Models: JBS30 / JBS40 / JBS50
Key Specs:
Output: 30-50m³/h
Power: Diesel Engine
The ultimate off-grid solution. Powered by Weichai/Cummins engines for powerful performance in remote areas.
Ideal for urban construction, indoor flooring, and noise-sensitive sites with stable power access.

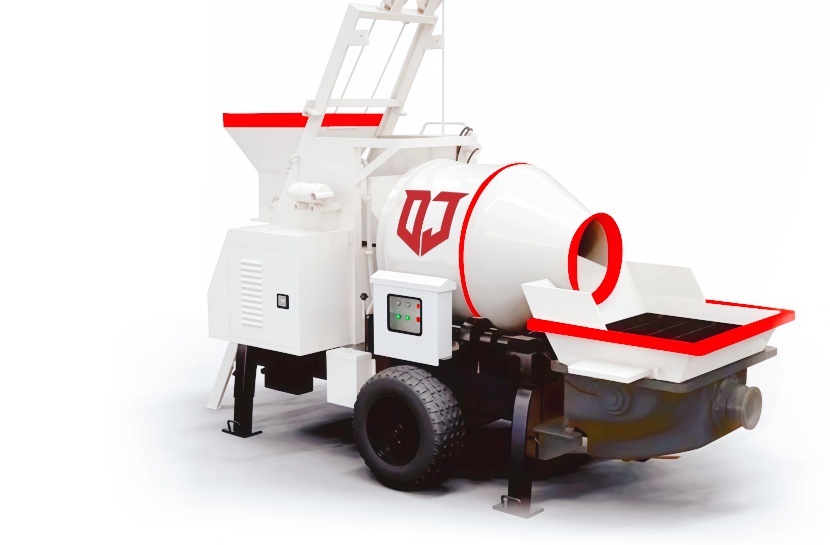

Electric Concrete Mixer Pump
Models: JBS30 / JBS40
Key Specs:
Output: 30-40m³/h
Power: 3-Phase Electric
The economical choice for urban sites. Zero emissions, low noise, and 40% lower running costs.
Specialized for tunnels, underground mines, and precast yards requiring low-profile equipment and uniform mixing.

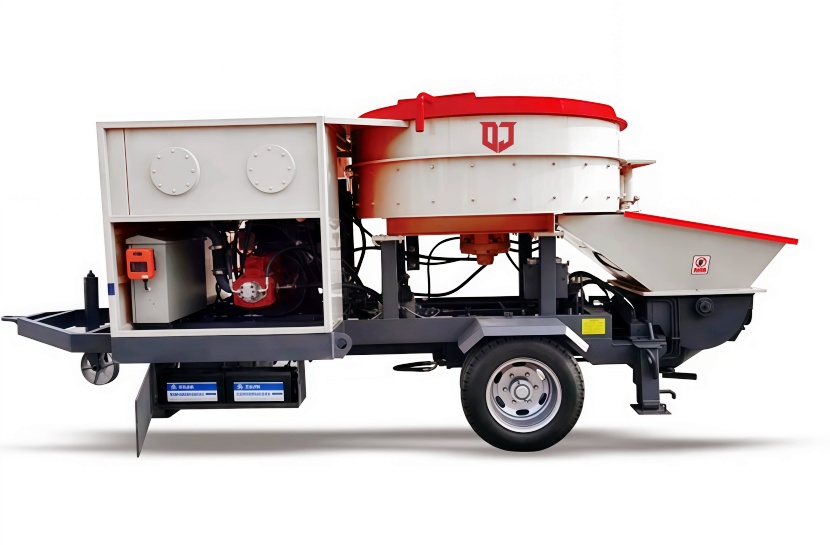

Concrete Mixer Pump with Vertical Shaft Mixer
Models: JW40C-750 / JW40C-1000
Key Specs:
Mixer Type: Flat Pan (Low Height)
Advantage: Easy Feeding & No Dead Corners
Features a flat pan design that ensures homogenous mixing with zero dead corners. Its unique low-profile structure makes it the perfect solution for height-restricted sites like narrow tunnels, culverts, and underground mines.
The professional choice for bridges, dams, and high-rise buildings requiring certified, structural-grade concrete quality.

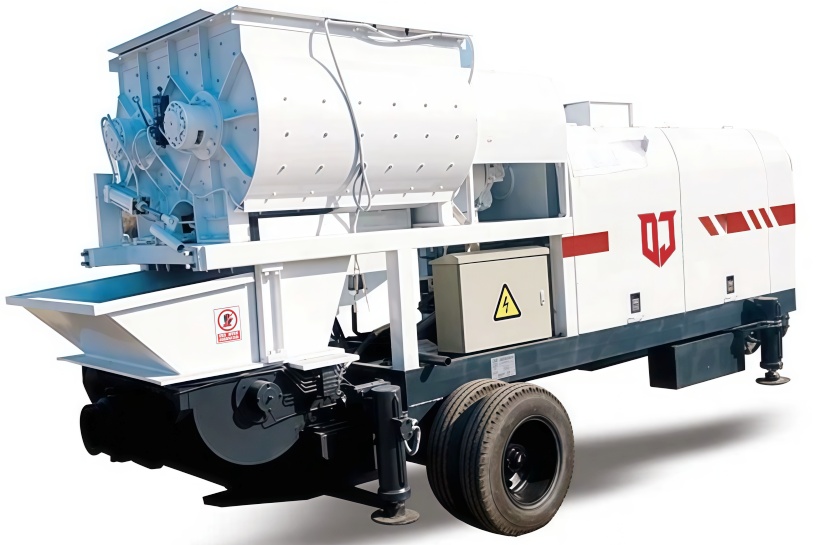

Concrete Mixer Pump with Twin Shaft Mixer
Models: JBS40C-500 / JBS40C-750 / JBS40D-JS500 / JBS40D-JS750
Key Specs:
Mixer Type: JS Twin-Shaft (Forced)
Advantage: Handles Hard Aggregate Easily
Equipped with a heavy-duty JS series forced mixer, widely regarded as the industry gold standard. It handles hard aggregates and dry-mix designs easily, delivering engineering-grade concrete quality that meets the strictest project standards.
Specifications of Concrete Mixer Pumps
Specifications of Diesel Powered Concrete Mixer Pump
| Item | Diesel Type JBS30-10-52R | Diesel Type JBS40-10-82R | Diesel Type JBS50-10-92R | |
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 | 50 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.45 | 0.45 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 6 | 10 | 10 |
| Distribution valve type | S Valve | S Valve | S Valve | |
| Concrete cylinder diameter x stroke | mm | Φ180*500 | Φ180*800 | Φ180*1000 |
| Diesel engine model | Yuchai/Weichai | Weichai Deutz WP4G110E220 | Yuchai 92KW | |
| Diesel engineering power | KW | 52 | 82 | 92 |
| Circuit type | Open circuit | Open circuit | Open circuit | |
| Max. theoretical vertical/horizontal conveying distance | m | 100/300 | 100/400 | 100/450 |
| Max. aggregate diameter | mm | Slick/scree:20~40 | Slick/scree:40/50 | Slick/scree:40/50 |
Specifications of Electric Powered Concrete Mixer Pump
| Item | Electric Type JBS30-10-37 | Electric Type JBS40-10-45 | |
| Max. theo. concrete output(L./H) | M3/h | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 |
| Mixer rated discharge capacity | m3 | 0.45 | 0.45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10 | 10 |
| Distribution valve type | S Valve | S Valve | S Valve |
| Winding motor power | KW | 5.5 | 5.5 |
| Stir the motor Power | KW | 4.5 | 4.5 |
| Water pump motor power | KW | 0.55 | 0.55 |
| Electrical engineering power | KW | 37 | 45 |
| Rotate speed | r/min | 1480 | 1480 |
| Circuit type | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 |
| Capacity of oil tank | L | 260 | 370 |
| Max. theoretical vertical/horizontal conveying distance | m | 120/300 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:20~40 | Slick/scree:40/50 |
Mix On-Site, Pump Immediately.
The unit ingeniously mounts a concrete mixer (Drum or Pan type) and a concrete pump on a single chassis. The discharge port of the mixer connects directly to the pump hopper. This integrated design minimizes material transfer time and allows a single machine to handle the entire “feeding-mixing-pumping” cycle efficiently.
Zero Blockage, Smooth Flow.
At the heart of our pumping system is the advanced S-tube distribution valve. Engineered with high-wear-resistant alloys and a floating cutting ring, it automatically compensates for wear to ensure a tight seal. This design guarantees smooth concrete flow even with harsh aggregates (up to 40mm) and drastically reduces the risk of pipe blockage, ensuring continuous pouring without downtime.
Automatic Maintenance Extension.
Maintenance is automated with a hydraulic centralized lubrication system. It delivers precise amounts of grease to key moving parts (like the S-valve and mixing shaft) at set intervals. This prevents dry friction, drastically reduces manual maintenance work, and extends the service life of wear components by over 50%.
Stable Pressure, High Efficiency.
At the core of the hydraulic system is a premium-grade Main Oil Pump (Kawasaki series technology). It features high volumetric efficiency and smooth suction. Unlike unstable gear pumps, this piston pump ensures constant system pressure even under heavy loads, ensuring the concrete can be pumped vertically to 50m without power loss.
Simple & Safe Operation.
The machine is managed by an integrated PLC electric control cabinet with a dust-proof and moisture-proof design. It features clear buttons for “Mixing,” “Pumping,” and “Reverse Pumping” (for blockage clearing). The intelligent logic protects the motor from overload and ensures the system operates within safe parameters.
24/7 Continuous Operation.
To prevent hydraulic overheating during long shifts, we install a high-power forced air cooling system (Radiator). It effectively dissipates heat from the hydraulic oil, keeping the oil temperature within the optimal range (below 60°C). This ensures the machine can work continuously around the clock, even in hot summer conditions.
Features of Concrete Mixer Pump

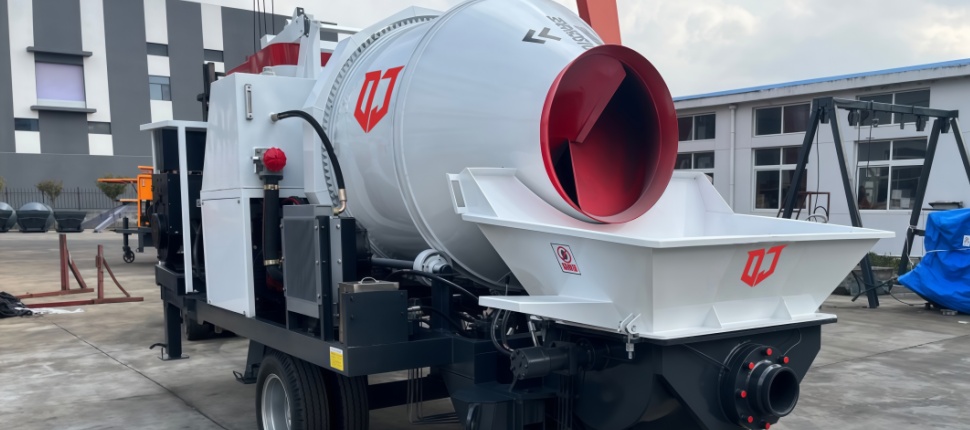

Integrated Mixing & Pumping
Seamless 2-in-1 Operation.
The unit ingeniously mounts a concrete mixer (Drum or Pan type) and a concrete pump on a single chassis. The discharge port of the mixer connects directly to the pump hopper. This integrated design minimizes material transfer time and allows a single machine to handle the entire “feeding-mixing-pumping” cycle efficiently.
Advanced S-Tube Valve
Leak-Proof & Anti-Blocking.
Equipped with a high-performance S-tube distribution valve, which is critical for smooth concrete flow. We use a floating wear-ring design that automatically compensates for gap wear, ensuring a tight seal. This allows the pump to handle aggregate sizes up to 40mm without leakage or blockage, maintaining consistent pumping pressure.
Centralized Lubrication System
Automatic Maintenance Extension.
Maintenance is automated with a hydraulic centralized lubrication system. It delivers precise amounts of grease to key moving parts (like the S-valve and mixing shaft) at set intervals. This prevents dry friction, drastically reduces manual maintenance work, and extends the service life of wear components by over 50%.

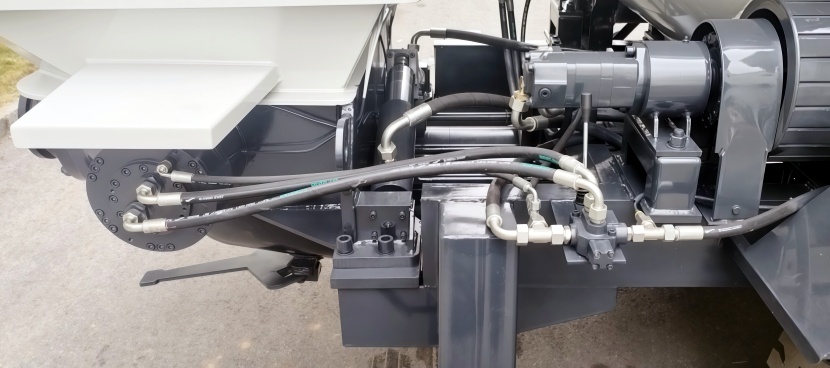

Reliable Main Oil Pump
Stable Pressure, High Efficiency.
At the core of the hydraulic system is a premium-grade Main Oil Pump (Kawasaki series technology). It features high volumetric efficiency and smooth suction. Unlike unstable gear pumps, this piston pump ensures constant system pressure even under heavy loads, ensuring the concrete can be pumped vertically to 50m without power loss.
Smart PLC Control System
Simple & Safe Operation.
The machine is managed by an integrated PLC electric control cabinet with a dust-proof and moisture-proof design. It features clear buttons for “Mixing,” “Pumping,” and “Reverse Pumping” (for blockage clearing). The intelligent logic protects the motor from overload and ensures the system operates within safe parameters.

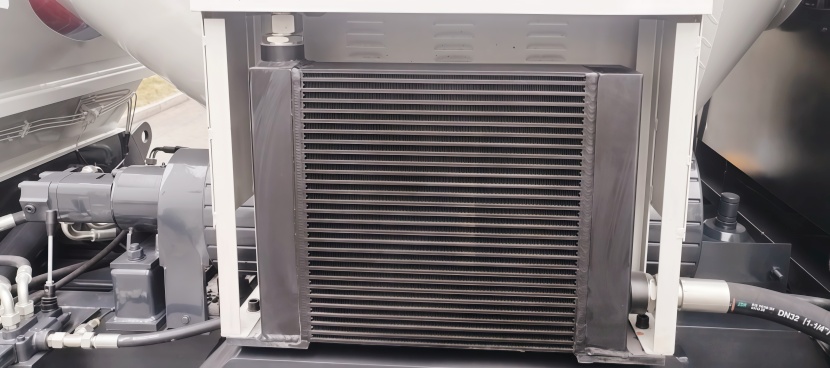

Forced Air Cooling System
24/7 Continuous Operation.
To prevent hydraulic overheating during long shifts, we install a high-power forced air cooling system (Radiator). It effectively dissipates heat from the hydraulic oil, keeping the oil temperature within the optimal range (below 60°C). This ensures the machine can work continuously around the clock, even in hot summer conditions.
Dingjoin Concrete Mixer Pump Prices & ROI Analysis
Factory-Direct Pricing Structure
Why pay for a separate mixer and a separate pump? Dingjoin offers a “2-in-1” Factory-Direct solution that costs 40% less than buying two separate machines.
By manufacturing key components (like the drum and chassis) in-house, we eliminate dealer markups.
- Diesel Series: The best value for remote off-grid projects.
- Electric Series: Lower purchase price and 50% lower daily running costs.
ROI Breakdown: The “Profit Formula”
The Dingjoin Concrete Mixer Pump is engineered to pay for itself within 1 to 3 projects (approx. 4-6 months). Here is the math based on a typical 3-story housing project:
A. Slash Labor Costs by 60%
Traditional hoisting requires mixing crews, wheelbarrow runners, and lifting operators (approx. 8-10 people).
- Dingjoin Method: 1 feeding loader + 1 machine operator + 2 hose men = 4 People Total.
- Savings: You save 4-6 daily wages every single day. That’s thousands of dollars saved per month.
B. 3x Faster Construction Speed
Manual pouring limits you to one floor every 3-4 days. With a continuous output of 30-40m³/h, a Dingjoin pump can finish a 150m² floor slab in just 2-3 hours.
- Result: Finish projects weeks ahead of schedule, allowing you to take on more contracts per year.
Cost Comparison Table
Project Scenario: 500m³ Rural Housing Project
| Cost Factor | Traditional Method (Mixer + Hoist + Manual) | Dingjoin Mixer Pump (JBT40) | Your Profit |
| Crew Size | 8 – 10 Workers | 3 – 4 Workers | Save 5 Wages/Day |
| Pouring Speed | 5 – 8 m³/h | 30 – 40 m³/h | 300% Faster |
| Labor Intensity | Extremely High (Back-breaking) | Low (Machine Pumping) | Easy Recruitment |
Tailored Solutions For Every Industry
🏠 For Residential Construction
The #1 choice for building rural houses, villas, and multi-story apartments (up to 12 floors). Traditional hoisting methods are slow and dangerous. Our mixer pump solves this by pumping concrete vertically directly to the pour site. It replaces the need for lifting hoists and manual wheelbarrows, allowing a small team of 3-4 people to pour a floor slab in just a few hours.
🏢 For Urban & Commercial Projects
Perfect for warehouse flooring, underground parking lots, and urban renovation where space is limited. Our Electric Series is especially valued here for its low noise and zero emissions. The compact design allows the machine to be set up in narrow alleys or indoor spaces, delivering a continuous flow of concrete for smooth, high-quality floor screeding and column pouring.
🚇 For Tunnel Lining & Mining
Engineered for restricted environments. In narrow tunnels, mine shafts, or culverts where transit mixer trucks cannot enter, the Dingjoin mixer pump is the solution. It can be towed easily into the tunnel and pumps concrete horizontally over long distances (200m+) for wall lining, slope protection, and structural support, ensuring safety and efficiency underground.
🌊 For Canals & Water Projects
Ideal for linear projects like river embankments, irrigation channels, and ditch lining. Since heavy trucks often cannot drive on soft riverbanks, our pump uses long delivery hoses to transport concrete from a safe distance. This horizontal reach capability makes it indispensable for agricultural infrastructure and water conservancy projects spanning long distances.
🧱 For Precast & Concrete Supply
Perfect for precast yards or starting a micro-batching business. Unlike stationary plants that require high setup costs and land, our mobile unit offers precision weighing for specialized mix recipes (dry-mix or wet). It allows you to produce high-quality concrete blocks, pipes, or barriers on-demand, scaling your production volume without the heavy capital expenditure.
Tailored Solutions For Every Industry
Rural Housing & Civil Builders
🏠 For Residential Construction
The #1 choice for building rural houses, villas, and multi-story apartments (up to 12 floors). Traditional hoisting methods are slow and dangerous. Our mixer pump solves this by pumping concrete vertically directly to the pour site. It replaces the need for lifting hoists and manual wheelbarrows, allowing a small team of 3-4 people to pour a floor slab in just a few hours.
Urban Renovation & Flooring
🏢 For Urban & Commercial Projects
Perfect for warehouse flooring, underground parking lots, and urban renovation where space is limited. Our Electric Series is especially valued here for its low noise and zero emissions. The compact design allows the machine to be set up in narrow alleys or indoor spaces, delivering a continuous flow of concrete for smooth, high-quality floor screeding and column pouring.
Tunnel & Mine Lining
🚇 For Tunnel Lining & Mining
Engineered for restricted environments. In narrow tunnels, mine shafts, or culverts where transit mixer trucks cannot enter, the Dingjoin mixer pump is the solution. It can be towed easily into the tunnel and pumps concrete horizontally over long distances (200m+) for wall lining, slope protection, and structural support, ensuring safety and efficiency underground.
Water Conservancy & Canals
🌊 For Canals & Water Projects
Ideal for linear projects like river embankments, irrigation channels, and ditch lining. Since heavy trucks often cannot drive on soft riverbanks, our pump uses long delivery hoses to transport concrete from a safe distance. This horizontal reach capability makes it indispensable for agricultural infrastructure and water conservancy projects spanning long distances.
Why Dingjoin Concrete Mixer Pumps Outperforms the Competition
1. Anti-Blocking S-Valve Technology
Non-Stop Pumping, Even with Rough Stone.
Blockage is the #1 headache in rural construction where stone quality varies. Dingjoin uses a widened Streamlined S-Tube Valve. Combined with our high-pressure reversing system, it smoothly passes aggregates up to 40mm (gravel/pebble). While cheap pumps clog with rough stones, ours keeps flowing, saving you hours of pipe-cleaning time.
2. Stable Pressure for Multi-Story Builds
Real Power for Rural Housing.
We equip our pumps with Kawasaki-series Main Oil Pumps featuring high volumetric efficiency. This ensures consistent outlet pressure (8-10 MPa). Whether you are building a 3-story villa or a 10-story civil building, the pump delivers concrete vertically through the pipeline smoothly, without the “power loss” or engine stalling common in lower-tier brands.
3. Cemented Carbide Wear Parts
3x Longer Service Life.
Standard mixers use cheap steel plates that wear out quickly. Dingjoin uses Tungsten Carbide (Alloy) for the spectacle plate and cutting ring. This ultra-hard material withstands the constant abrasion of sand and stone, extending the replacement interval by 300%. Spend less time repairing and more time pouring.
4. Oversized Cooling System
Run All Day Without Overheating.
Rural pouring jobs often last from dawn till dusk. We upgraded the hydraulic cooling system with an Oversized Air-Cooled Radiator. This keeps the hydraulic oil temperature strictly below 60°C, ensuring the machine can work continuously for 10+ hours in hot summer weather without shutting down.
Dingjoin vs. Generic Brands
| Feature | Dingjoin Mixer Pump | Generic / Cheap Brands |
| Wear Plate | Tungsten Carbide(Alloy) | Standard steel |
| Max Aggregate | Up to 40mm | <30mm (Clogs easily) |
| Hydraulic Hose | Manuli / Paker (4-Layer) | Generic(Prone to bursting) |
| Electric Box | PLC + Dustproof | Simple Relay(Fail in rain) |
How Can Concrete Mixer Pumps Work With Other Construction Machinery

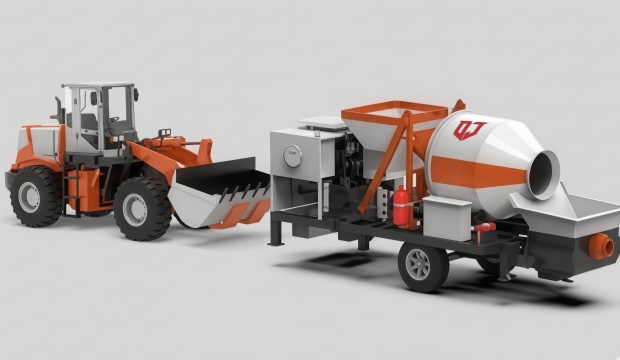

1. Mixer Pump + Mini Wheel Loader
Best for: Maximizing Daily Output
Manual feeding with wheelbarrows is the biggest bottleneck for a mixer pump. Pairing it with a Mini Wheel Loader (0.8 – 1.5 ton) ensures the hopper is always full.
- The Benefit: Reduces loading time from 3 minutes to 45 seconds per batch. This allows the pump to run at full capacity (40m³/h), doubling your daily square meterage.

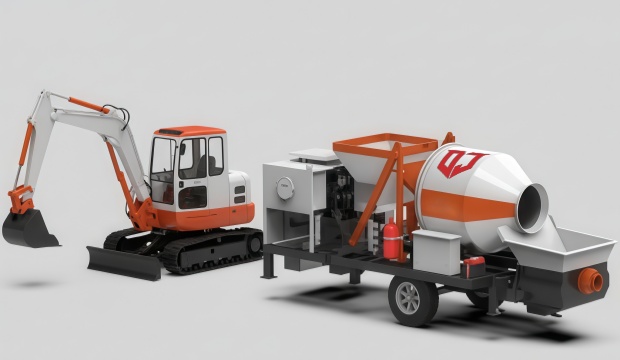

2. Mixer Pump + Mini Excavator
Best for: Rural Foundations, Trenching
For rural housing foundations or pipe bedding, the Excavator digs the trench, and the Mixer Pump follows immediately to fill it with concrete via pipelines.
- The Benefit: No need to maneuver concrete trucks around messy trenches. The pump stays on solid ground while the pipe reaches the exact pouring spot, speeding up foundation work by 50%.

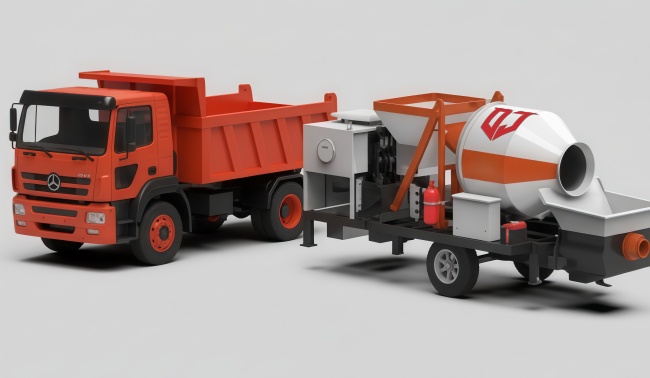

3. Mixer Pump + Dump Truck
Best for: Remote/Road Projects
The mixer pump is a hungry beast. Use Light Dump Trucks to stockpile sand, cement, and aggregate right next to the machine before the shift starts.
- The Benefit: Ensures the “Raw Material -> Mixing -> Pumping” chain never stops due to material shortage. Ideal for road repair projects where the station moves every few kilometers.

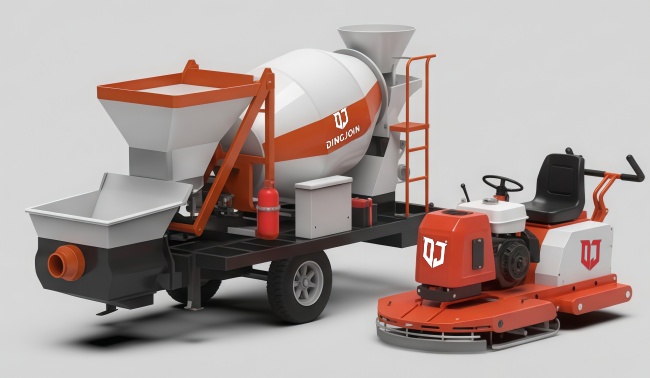

4. Mixer Pump + Power Trowel
Best for: Floor Slabs, Warehouses
The mixer pump delivers concrete rapidly to the floor. As the pipe crew spreads it, a Power Trowel (or Laser Screed) follows behind to level and polish the surface.
- The Benefit: The high output of the pump ensures the concrete is fresh and workable for the finishing crew, resulting in a crack-free, professional-grade floor surface.

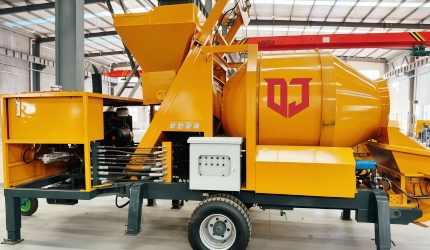

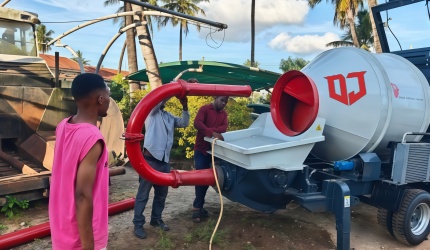

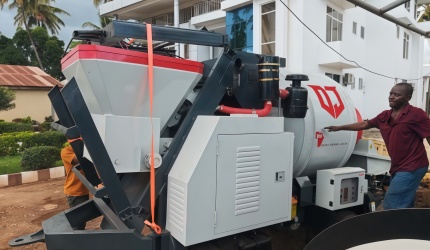

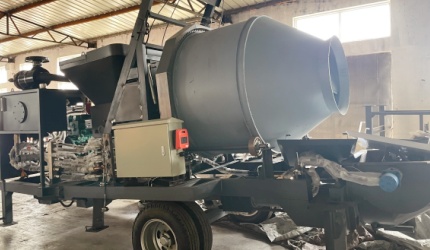

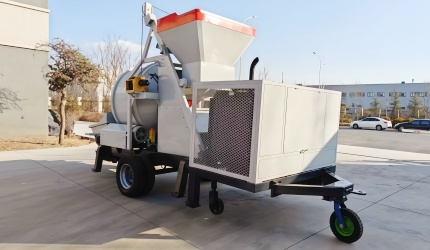

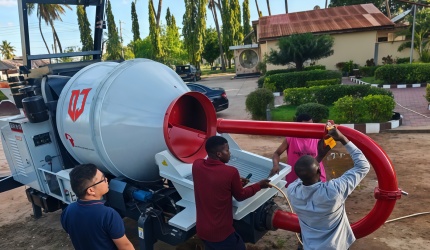

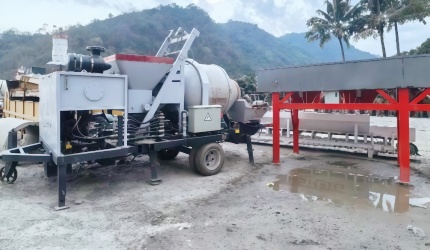

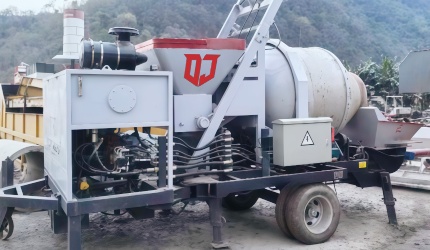

Global Cases of Concrete Mixer Pumps
While Dingjoin has established a commanding market leadership across Latin America and Africa—conquering some of the world’s toughest high-altitude and off-road environments—our success is truly global. Our concrete mixer pumps are also widely deployed and highly rated by contractors throughout Asia and beyond. No matter the continent, from remote mining sites to fast-paced urban projects, customers worldwide trust Dingjoin for uncompromised performance and seamless international logistics.
