Mobile Crushing Plant For Sale
“Maximize Aggregate Yield. Flexible & High-Performance Crushing Solutions for Any Site.“
Ideal for Aggregate Production, Hard Rock Mining, Quarrying, and Construction Demolition Waste Recycling.
- Output Capacity: 5 ~ 1000 TPH (Fully customizable plant layouts based on your raw materials).
- Configurations: Wheeled Mobile Plants Available. Quick setup with zero foundation required.
- Core Equipment: Premium Jaw, Cone Crushers, Sand Making Machines (VSI), Screens & Conveyors.
- Turnkey Service: From raw material analysis & customized 3D design to on-site installation.

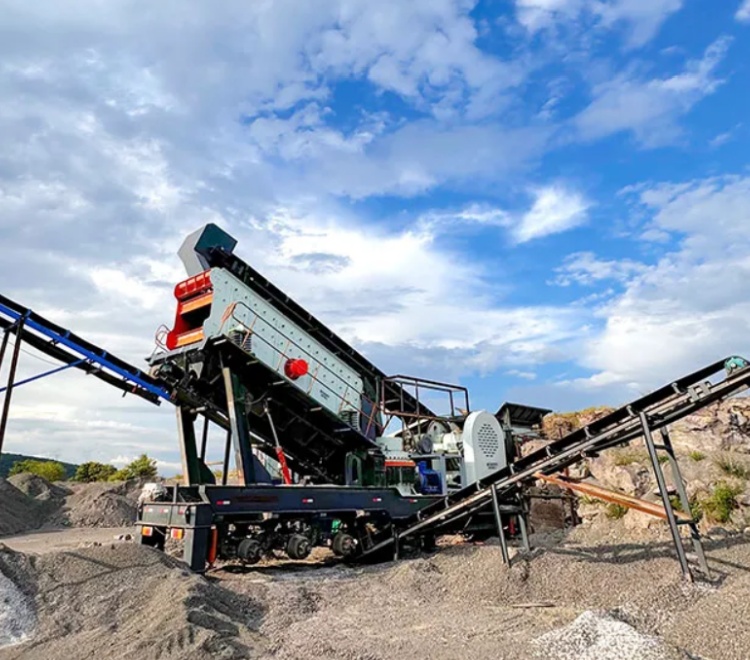

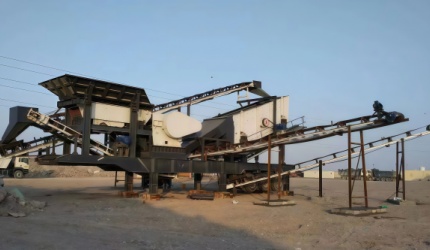

Mobile Crushing Plants
We built the feeder, crusher, and screen onto a single heavy-duty chassis. You don’t need to pour concrete foundations, and you can stop paying trucks to haul raw material across the site. Just drive the plant directly to the rock face or demolition pile, deploy it in a few hours, and start producing aggregate. It is designed for maximum mobility and continuous crushing in tough environments.
Max. Output
Power
Max. Feed Size
Final Product
50 ~ 1000 TPH
Diesel Engine (Cummins/Volvo) or Electric Driven
≤ 600mm
0-5mm / 5-10mm / 10-20mm (Adjustable Screen)
Using Applications:
Quarrying & Hard Rock Mining / Construction Demolition Waste Recycling / Highway & Railway Construction / Urban Infrastructure Projects.
What Materials Can Our Mobile Crushing Plant Process?
A high-performance crushing plant is defined by its versatility. Whether you are dealing with ultra-hard abrasive rocks, medium-soft minerals, or urban construction waste, Dingjoin crushing plants are engineered to process a vast spectrum of materials with precision and efficiency.
Based on material characteristics and industry applications, our crushing plants can effectively handle the following categories:
1. Hard and Abrasive Rocks
- Materials: Granite, Basalt, Quartz, Diabase, Gabbro, etc.
- Overview: These materials have high compressive strength and are highly abrasive. They require heavy-duty equipment like Jaw Crushers and Cone Crushers. Once processed, they provide excellent, durable aggregates for highway, railway, and high-strength concrete construction.
2. Medium-Hard and Soft Minerals
- Materials: Limestone, Dolomite, Gypsum, Calcite, Shale, Coal, etc.
- Overview: Often used in the cement, chemical, and building material industries. Because these materials are softer, Impact Crushers (PF series) are typically used to process them, delivering a high crushing ratio and excellent cubic-shaped end products.
3. Metal Ores (Mining & Beneficiation)
- Materials: Iron ore, Copper ore, Gold ore, Manganese ore, Bauxite, etc.
- Overview: In the mining sector, crushing is the critical first step before grinding. Dingjoin crushing plants effectively break down large ore blocks into smaller, uniform sizes, adopting the “more crushing, less grinding” principle to save energy in downstream processing.
4. Natural River Pebbles & Cobblestones
- Materials: River stone, Cobblestone, Gravel.
- Overview: River pebbles are widespread and inherently smooth but extremely hard. Using a combination of Cone Crushers and VSI (Vertical Shaft Impact) Sand Making Machines, these stones are reshaped and crushed into premium manufactured sand (M-Sand) to replace natural river sand.
5. Construction and Demolition (C&D) Waste
- Materials: Crushed concrete, asphalt rubble, old bricks, and glass.
- Overview: Sustainability is the future of construction. Equipped with magnetic separators to remove steel rebars, our mobile and stationary crushing plants can recycle C&D waste into reusable aggregates for road base and eco-friendly brick production.
2026-2030 Mobile Stone Crushing Plant Market Outlook
Why the Shift to Mobile is Accelerating
Between 2026 and 2030, the global demand for mobile crushing plants is surging, heavily driven by rising operational costs and stricter environmental regulations. For aggregate producers and contractors, the math is simple: hauling raw rock is getting too expensive, and securing permits for new stationary quarries takes too long.
Here is what is driving the market over the next five years:
- Soaring Haulage & Fuel Costs: Paying dump trucks to haul raw materials to a fixed plant eats directly into your profit margins. Mobile units bring the crusher directly to the rock face or demolition site, cutting out the middleman transport costs.
- The C&D Recycling Boom: Stricter landfill laws worldwide are forcing contractors to recycle Construction and Demolition (C&D) waste on-site. Mobile crushers instantly turn concrete rubble and asphalt into usable base material right where the demolition happens.
- Bypassing Red Tape & Permitting: Setting up a stationary crushing plant requires massive concrete foundations and years of environmental impact approvals. Tracked and wheeled mobile plants are classified as temporary equipment, allowing you to bypass heavy red tape and start producing within days.
- Rapid Infrastructure Push in Emerging Markets: Highway and railway expansions across Africa, Southeast Asia, and Latin America require aggregate on the go. Mobile plants can move along with the road subgrade construction, maintaining a steady supply of materials.
The contractors and mine owners who invest in mobility now will outbid those stuck with high transport overheads and fixed-location limits.
Major Types For Sale
Best for multi-site contractors, C&D recycling, and short-term quarry projects requiring frequent highway relocations and rapid deployment.

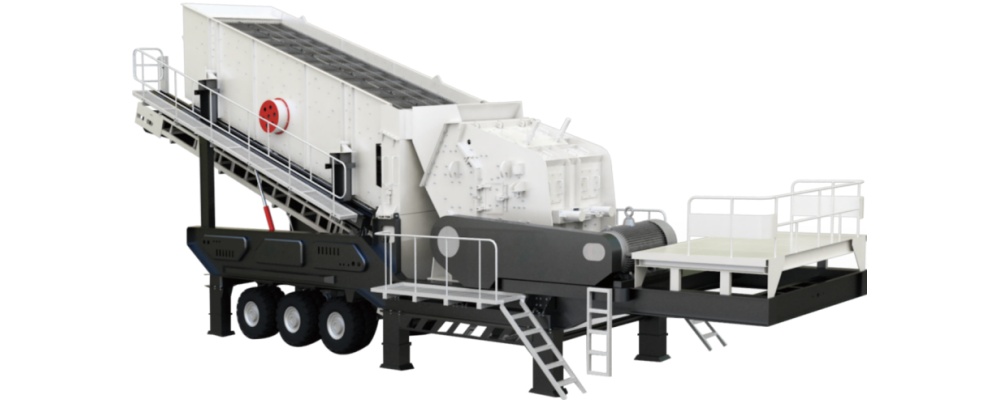

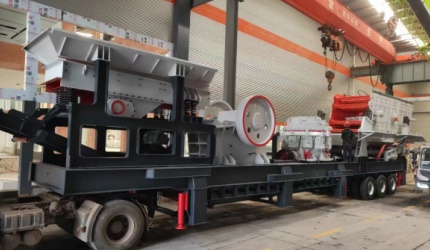

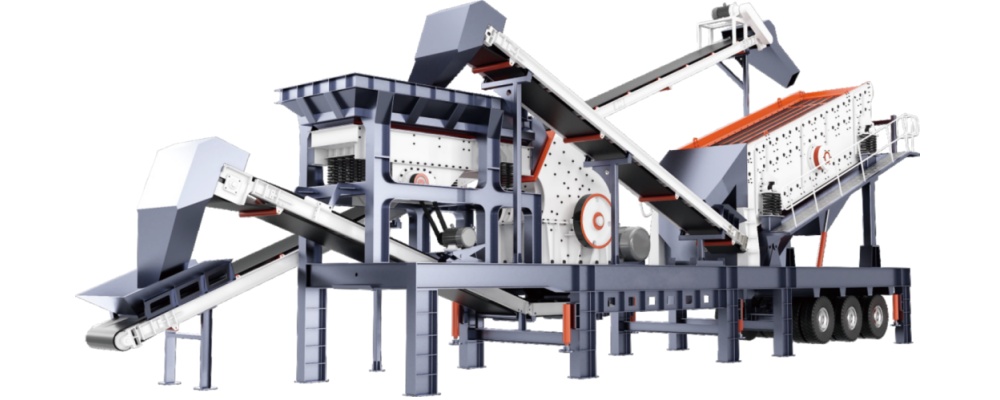

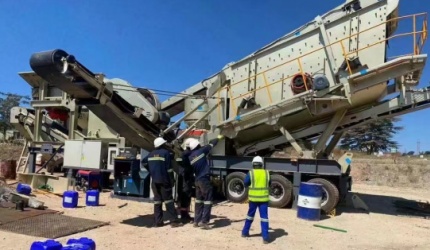

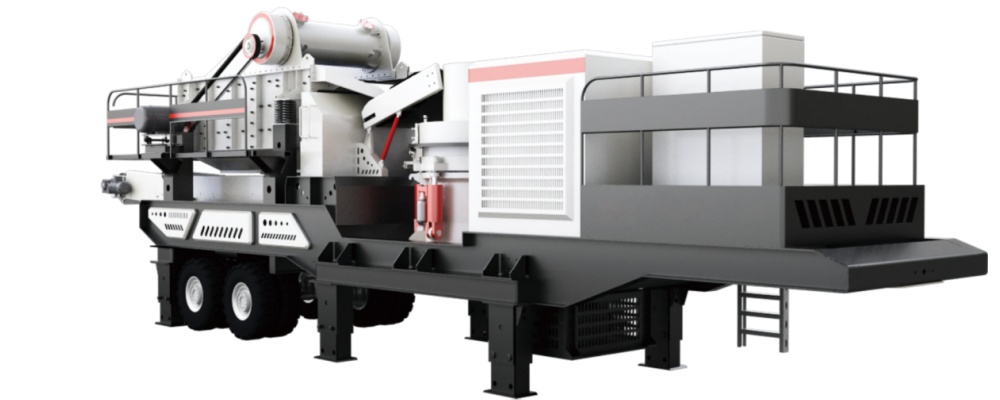

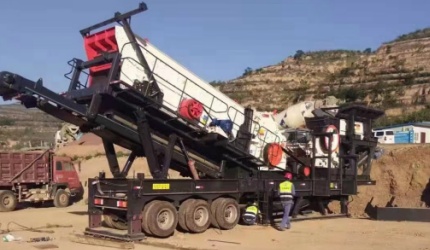

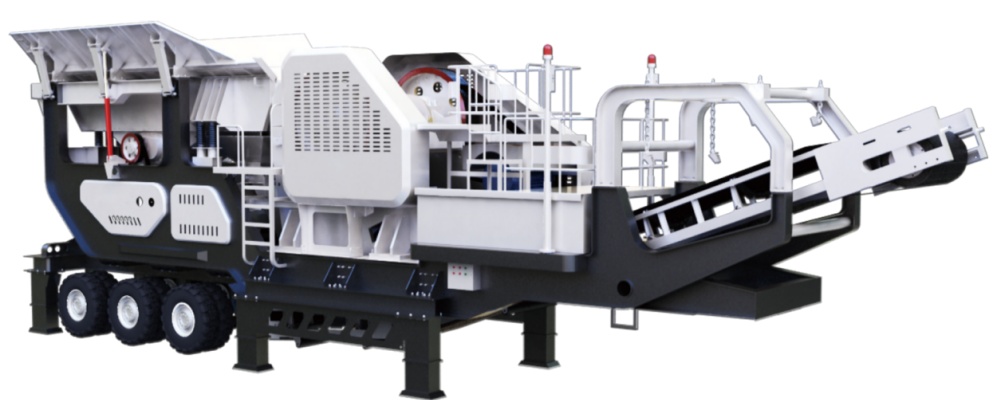

Wheeled Mobile Crushing Plant
Configurations: Wheeled Primary Jaw / Wheeled Secondary Cone & Impact / Wheeled Screen
Key Specs:
Output: 50 – 650 TPH
Feeding Size: 350-800mm
Built on a heavy-duty semi-trailer chassis for easy towing by standard trucks. It arrives on-site and starts crushing within hours. No concrete foundations, no complex wiring—just a reliable, plug-and-play aggregate solution designed to slash your setup costs and material transport overhead.
Best for rugged terrain, heavy-duty mining, and confined demolition sites where independent mobility and climbing capability are non-negotiable.

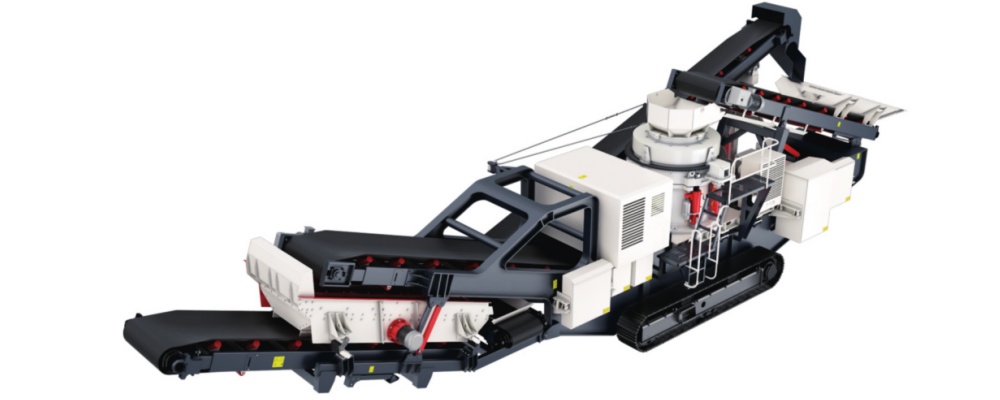

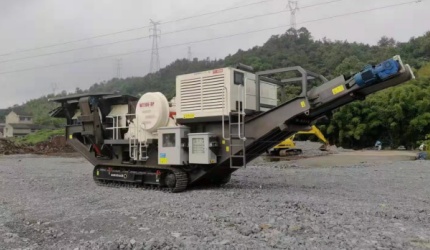

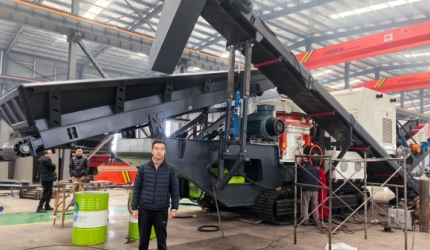

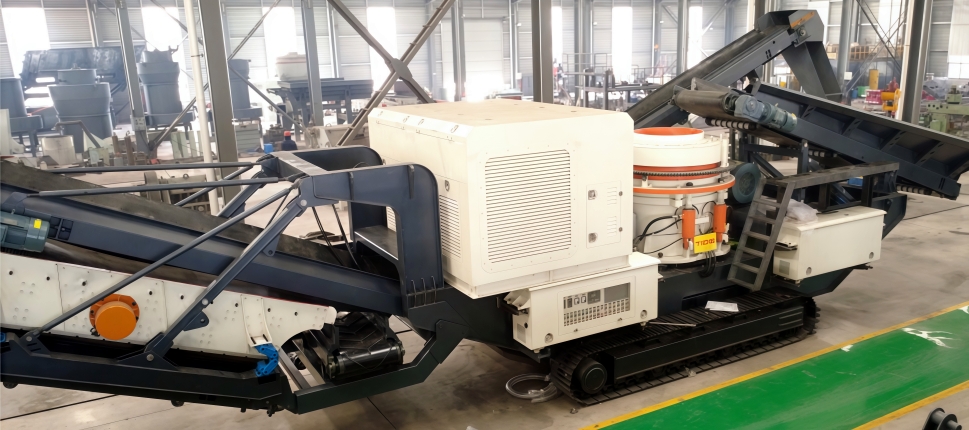

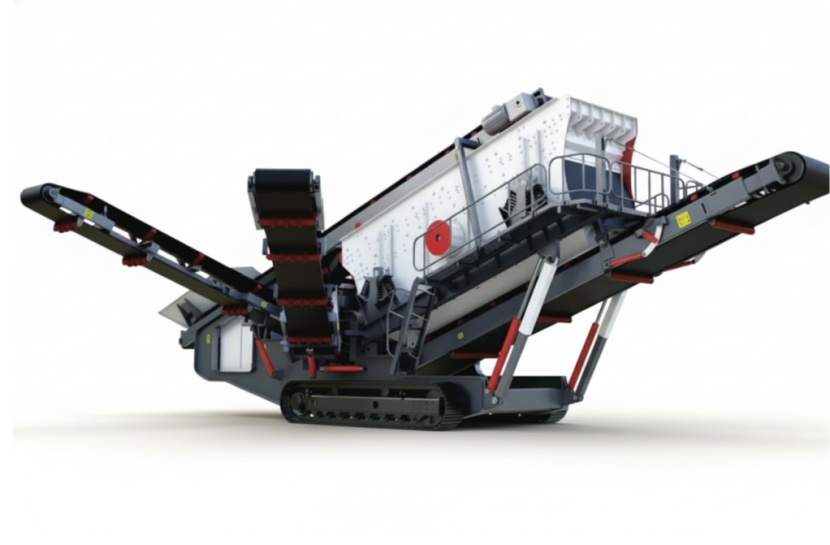

Crawler Mobile Crushing Plant
Models: Tracked Jaw Series / Tracked Cone Series / Tracked Impact Series
Key Specs:
Output: 50 – 650 TPH
Feeding Size: 350-800mm
Driven by a heavy-duty hydraulic track system, this plant is entirely self-propelled. Navigate steep quarry grades, mud, and uneven floors using a wireless remote control. By tracking the crusher directly to the rock face or blast zone, you eliminate excavator tramming times and loader fuel costs. Engineered for aggressive, continuous crushing in the most unforgiving environments.
Transform Any Rock into High-Profit Aggregates: Find Your Perfect Crushing Match
Don’t let the wrong equipment bottleneck your production and eat into your profits. At Dingjoin, we don’t just sell machines—we design high-ROI (Return on Investment) crushing circuits.
Whether you need to conquer 1,500mm massive boulders or produce premium 0-5mm manufactured sand, we supply the exact powerhouse to match your feed size, output goals, and budget.
Step 1: Primary Crushing — Unstoppable Power for Massive Boulders
Tackle the toughest blasting materials straight from the quarry face. Built for brutal environments, our primary crushers guarantee maximum uptime and continuous large-feed intake.
- Max Feed Size: Up to 1,500 mm (60″)
- Target Output: 100 mm – 300 mm
- Your Profit Machines: Dingjoin Heavy-Duty Mobile Jaw Crushers (High crushing force, low maintenance).
Step 2: Secondary Crushing — High Tonnage, Perfect Shaping
Turn coarse stones into highly marketable, standard construction aggregates. Our secondary crushers are engineered to minimize wear-part costs while maximizing your daily production volume.
- Max Feed Size: 100 mm – 300 mm
- Target Output: 20 mm – 60 mm
- Your Profit Machines:
- Dingjoin Hydraulic Cone Crushers (Best for hard rock like granite & iron ore).
- Dingjoin Impact Crushers / HSI (Best for soft rock & perfect cubical shapes).

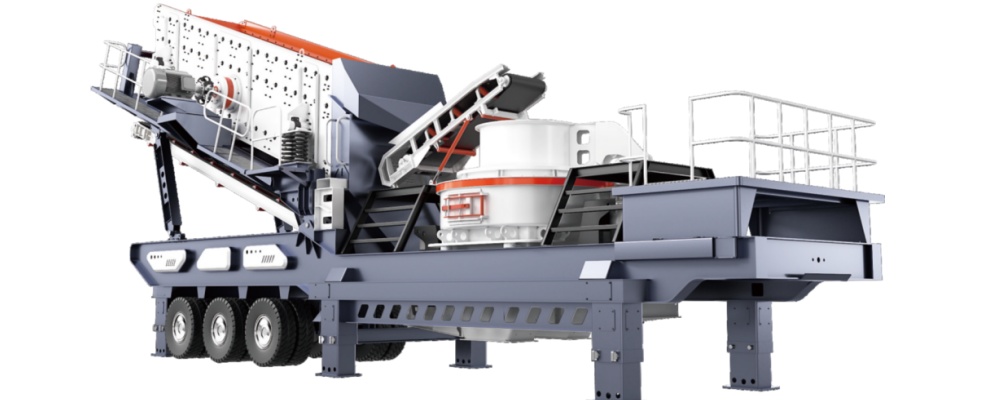

Step 3: Sand Making & Fine Crushing — Unlock Premium Profit Margins
Capitalize on the booming global demand for high-quality manufactured sand (M-Sand). Reshape and crush your aggregates into premium products that sell at top market prices.
- Max Feed Size: Under 50 mm (2″)
- Target Output: 0 – 5 mm (Premium M-Sand) or 5 – 20 mm (Fine Chips)
- Your Profit Machines: Dingjoin VSI Sand Makers (Advanced rock-on-rock technology for superior shaping).
Not Sure Which Setup Fits Your Quarry? Let Us Do the Math!
Stop guessing and start profiting. Tell us your raw material, maximum feed size, and desired hourly capacity. Our senior engineers will design a customized, cost-effective crushing plant layout for you—100% Free of Charge.
Specifications of Mobile Crushing Plants
Specifications of Wheeled Jaw Crushing Plant:
| Model | DJ-938HD86 | DJ-1149HD98 | DJ-1349HD110 | DJ-1349HD125 |
| Transportation Length(mm) | 12600 | 13500 | 14500 | 15200 |
| Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
| Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
| Maximum Length(mm) | 12500 | 14000 | 16100 | 16700 |
| Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
| Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
| Weight(t) | 39 | 57 | 62 | 67 |
| Tire Configuration | Dualaxial | triaxial | triaxia | triaxial |
| Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
| Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
| Discharge opening range(mm) | 50-150 | 75-175 | 100-200 | 125-225 |
| Capacity (tn) | 85-275 | 110-350 | 215-510 | 280-650 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | 3800×8.5M | B1000×9.5M | B1000×11M | B1200×11M |
| side-opening Belt conveyor(optional) | B500×3M | B650×3.5M | B650×4M | B650×4M |
| Genset(optional) | 200KW | 250KW | 270KW | 400KW |
| Iron remover(optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
Specifications of Crawler Jaw Crushing Plant
| Model | DJ-96 | DJ-106 |
| Bin Volume | 5m | 8m |
| Feeder | GZDT9538 | GZDT1145 |
| Jaw Crusher | CJ96 | CJ106 |
| Main Conveyor | B800X10m | B1000X11.5m |
| side conveyor(optional) | B500X3.2m | B650X3.5m |
| Iron Remover (optional) | RCYD650 | RCYD800 |
| Caterpillar | 400X3.8m | 500X3.8m |
| Speed | 0-20m/min | 0-20m/min |
| Climbing Ability | ±30 | ±30 |
| Engine Power | 96kw | 106kw |
| Total power | 112.9kw | 141.4kw |
| Overall Dimensions | 3.5mx3.4mx2.8m | 14.4mx3.6mx3.0m |
| Weight | 38t | 52.5t |
| Capacity | 300tph | 450tph |
Specifications of Crawler Impact Crushing Plant
| Model | DJ-96 | DJ-106 |
| Bin Volume | 5m | 8m |
| Feeder | GZDT9538 | GZDT1145 |
| Jaw Crusher | CJ96 | CJ106 |
| Main Conveyor | B800X10m | B1000X11.5m |
| side conveyor(optional) | B500X3.2m | B650X3.5m |
| Iron Remover (optional) | RCYD650 | RCYD800 |
| Caterpillar | 400X3.8m | 500X3.8m |
| Speed | 0-20m/min | 0-20m/min |
| Climbing Ability | ±30 | ±30 |
| Engine Power | 96kw | 106kw |
| Total power | 112.9kw | 141.4kw |
| Overall Dimensions | 3.5mx3.4mx2.8m | 14.4mx3.6mx3.0m |
| Weight | 38t | 52.5t |
| Capacity | 300tph | 450tph |
Discover Your Tailored Crushing Solution
No matter how complex your site or how tough your material is, we have the perfect mobile crushing plant for you. Select your project type below to find your optimal equipment configuration.
1. Construction & Demolition (C&D) Waste Recycling
Your Challenge: Limited working space in urban areas, frequent site relocations, concrete mixed with tough rebars (which easily damages equipment), and strict environmental/noise regulations.
Applicable Materials: Waste concrete, bricks, asphalt, demolition debris.

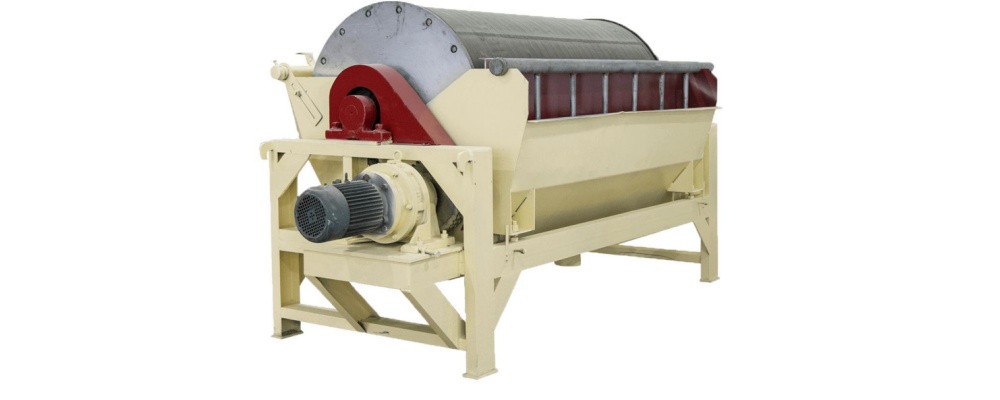

Our Solution: Mobile Impact Crusher + Magnetic Separator
Configuration Insights: Impact crushers are highly effective at crushing rebar-reinforced concrete. The integrated magnetic separator automatically extracts steel rebars to prevent belt damage. Combining feeding, crushing, screening, and conveying into one compact unit, it requires a minimal footprint—ready to crush as soon as it arrives on-site.

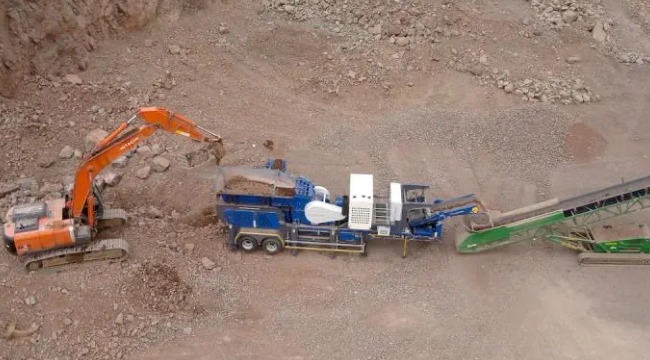

2. Hard Rock Mining & Quarrying
Your Challenge: Highly abrasive and hard materials that cause rapid wear on crusher parts. You require continuous, stable operation with high throughput.
Applicable Materials: Granite, basalt, river pebbles, iron ore, gold ore, etc.

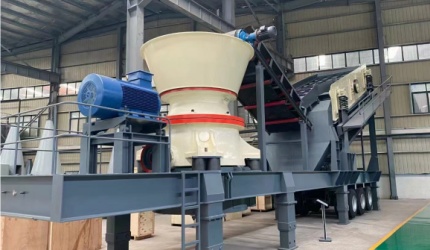

Our Solution: Primary Mobile Jaw Crusher + Secondary Mobile Cone Crusher + Mobile Screening Plant
Configuration Insights: The classic “Jaw + Cone” combination is born for hard rock. The jaw crusher provides aggressive primary crushing, while the cone crusher utilizes lamination crushing to significantly reduce the wear and tear of spare parts. This guarantees high output while keeping operational costs and maintenance to a minimum.
3. Infrastructure Construction (Highways, Railways, Bridges)
Your Challenge: The crushing site needs to move flexibly as the project progresses. High-grade infrastructure projects demand excellent aggregate shapes (cubical, with minimal flaky or elongated particles).
Applicable Materials: Aggregates for high-grade highways, high-speed railways, and commercial concrete.
Our Solution: Mobile Jaw/Impact Crusher + Mobile VSI Crusher (Sand Making & Shaping Plant)
Configuration Insights: The VSI (Vertical Shaft Impact) mobile plant is engineered specifically for aggregate shaping and manufactured sand production. It moves seamlessly with your project progress, drastically cutting material transportation costs, while producing premium, cubical aggregates that meet the strictest infrastructure standards.
4. Medium-Soft Rock High-Capacity Crushing
Your Challenge: The material is moderately soft but requires massive capacity. You want to simplify the crushing process, reduce initial investment, and achieve a fast ROI.
Applicable Materials: Limestone, coal, gypsum, dolomite, etc.
Our Solution: 4-in-1 Mobile Hammer Crusher Plant OR Mobile Impact Crusher
Configuration Insights: Achieve “One-Step Crushing.” There is no need for complex primary and secondary stages. A single machine integrates feeding, primary & secondary crushing, and screening. It delivers massive capacity, low investment, and a streamlined process—making it the ultimate cost-effective choice for limestone projects.
5. Remote Mining & Rugged Terrain
Your Challenge: The site is located at high altitudes or mountainous areas with no paved roads. There is no industrial power grid, or the electricity supply is highly unstable.
Applicable Materials: Various ores, mountain leveling, pioneering works.
Our Solution: Tracked Mobile Crusher + Diesel-Electric Dual Power System
Configuration Insights: Featuring a heavy-duty hydraulically driven track chassis, it offers exceptional climbing and off-road capabilities—controlled easily via remote without a towing truck. The built-in high-power diesel generator ensures full-capacity operation off the grid. Once grid power is available, seamlessly switch to electricity mode to save on energy costs.
Crush On-Site, Rapid Deployment.

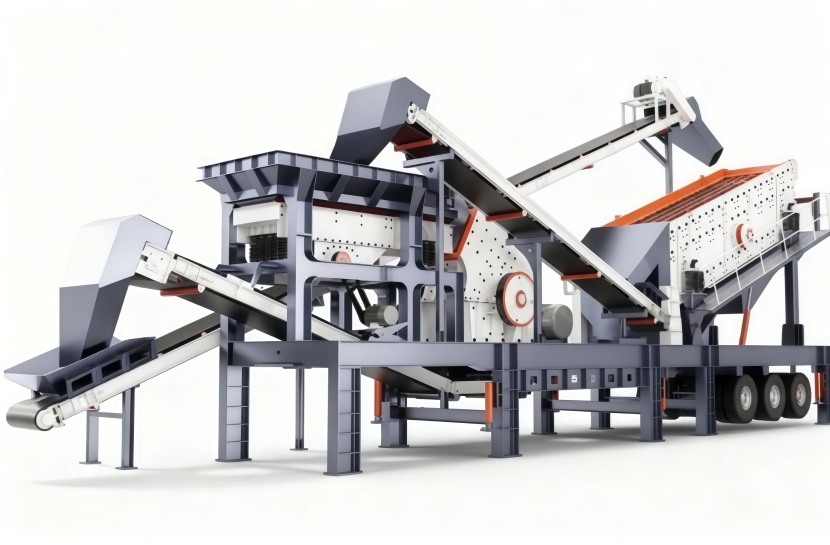

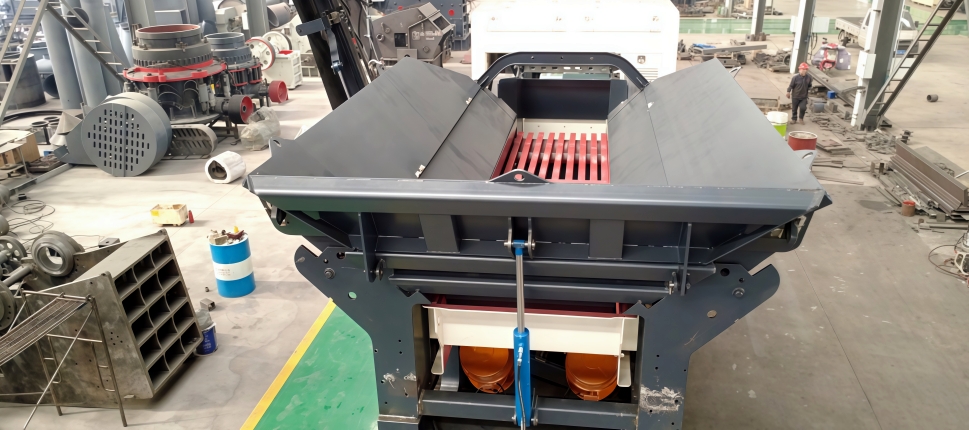

The unit ingeniously mounts the vibrating feeder, main crusher, and folding conveyors onto a single robust chassis (wheeled or tracked). This integrated design completely eliminates the need for expensive concrete foundations, minimizing setup time and allowing rapid transition between different quarry and recycling sites.
Maximum Aggregate Yield, Minimal Wear.
Equipped with a premium jaw or impact crusher featuring an optimized V-shaped crushing cavity. This deep-cavity design ensures a massive bite angle and high reduction ratio, effortlessly processing hard rocks while significantly extending the lifespan of the wear liners (jaw plates/blow bars).
Lower Fuel Consumption, Higher Profit.
Offers flexible power options including high-torque diesel engines (Cummins/Weichai) and electric grid plug-ins. The dual-power capability guarantees uninterrupted operation in off-grid remote mining areas while massively reducing energy costs when commercial commercial power is available.
One-Button Operation & Remote Monitoring.
Features an advanced Siemens/Schneider PLC touchscreen panel with remote control capabilities. Operators can easily adjust the discharge opening (CSS), monitor hydraulic pressure, and track production rates from a safe distance, ensuring both maximum efficiency and site safety.
Cut Daily Maintenance Time by 50%.
Engineered with an automated, centralized grease lubrication system covering all critical bearings and pivot points. This significantly reduces daily maintenance labor, prevents premature part failures due to missed greasing, and ensures continuous, high-intensity crushing operations.
Fast Transport & High Stockpiling.

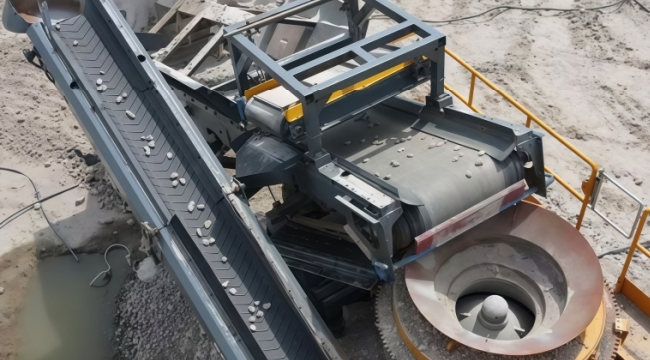

Integrated with high-strength discharge belts that feature a hydraulic folding mechanism for easy highway transport. Once on site, the extended conveyors deploy in minutes, providing massive aggregate stockpiling capacity and reducing the frequent need for wheel loaders.
Features of Crushing Plants

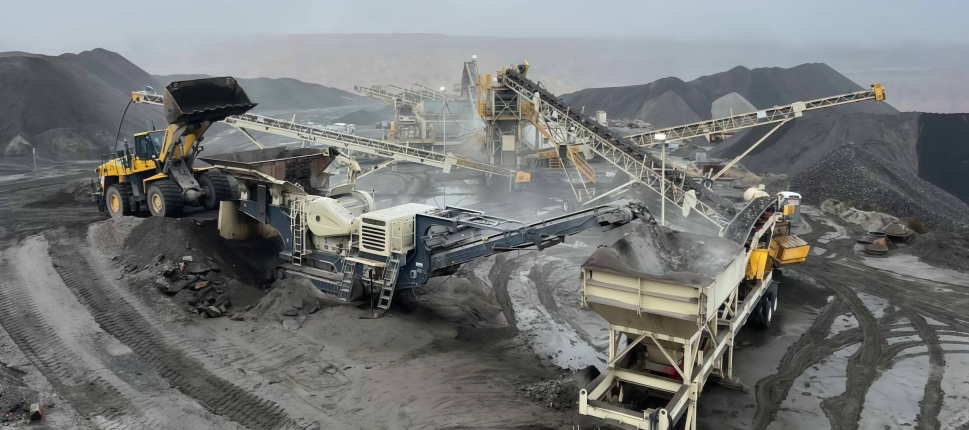

Integrated Portable Design
Crush On-Site, Rapid Deployment.
The unit ingeniously mounts the vibrating feeder, main crusher, and folding conveyors onto a single robust chassis (wheeled or tracked). This integrated design completely eliminates the need for expensive concrete foundations, minimizing setup time and allowing rapid transition between different quarry and recycling sites.
High-Reduction Crushing Chamber
Maximum Aggregate Yield, Minimal Wear.
Equipped with a premium jaw or impact crusher featuring an optimized V-shaped crushing cavity. This deep-cavity design ensures a massive bite angle and high reduction ratio, effortlessly processing hard rocks while significantly extending the lifespan of the wear liners (jaw plates/blow bars).

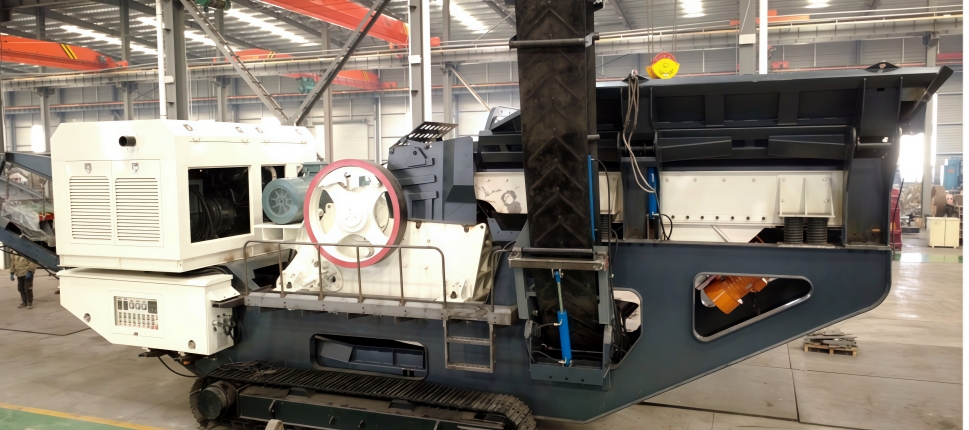

Dual-Power Drive System
Lower Fuel Consumption, Higher Profit.
Offers flexible power options including high-torque diesel engines (Cummins/Weichai) and electric grid plug-ins. The dual-power capability guarantees uninterrupted operation in off-grid remote mining areas while massively reducing energy costs when commercial commercial power is available.

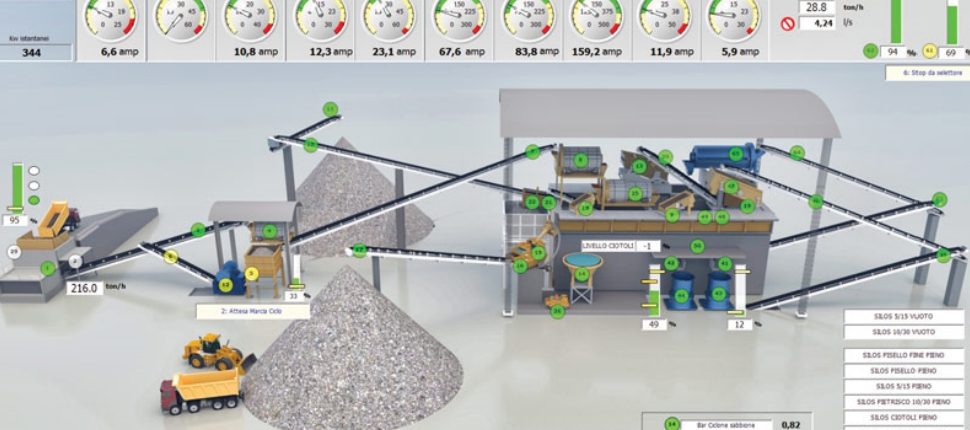

Smart PLC Control System
One-Button Operation & Remote Monitoring.
Features an advanced Siemens/Schneider PLC touchscreen panel with remote control capabilities. Operators can easily adjust the discharge opening (CSS), monitor hydraulic pressure, and track production rates from a safe distance, ensuring both maximum efficiency and site safety.
Centralized Lubrication System
Cut Daily Maintenance Time by 50%.
Engineered with an automated, centralized grease lubrication system covering all critical bearings and pivot points. This significantly reduces daily maintenance labor, prevents premature part failures due to missed greasing, and ensures continuous, high-intensity crushing operations.

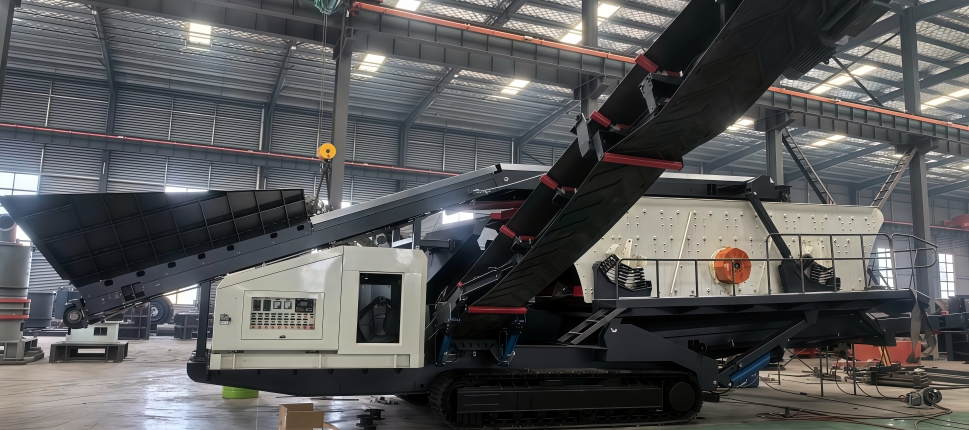

Forced Air Cooling System
Fast Transport & High Stockpiling.
Integrated with high-strength discharge belts that feature a hydraulic folding mechanism for easy highway transport. Once on site, the extended conveyors deploy in minutes, providing massive aggregate stockpiling capacity and reducing the frequent need for wheel loaders.
Dingjoin Mobile Crushing Plants: Real Costs & ROI Breakdown
We know what matters to your bottom line: Capital Expenditure (CAPEX), Operational Cost per Ton (OPEX), and Payback Period. Here is a transparent breakdown of what it takes to invest in a Dingjoin mobile plant and how fast you can expect to get your money back.
The Investment: Estimated Price Ranges (CAPEX)
Stop guessing the price. While exact quotes depend on your specific configuration, here is a realistic baseline of what you can expect when investing in Dingjoin equipment. We deliver Tier-1 performance at a fraction of the cost of premium European brands.
Entry-Level (Small to Medium Wheeled Plants):
- Capacity: 50 – 150 TPH
- Typical Range: $80,000 – $150,000
- Best for: Startup contractors, urban C&D waste recycling, and small quarries.
Mid-to-High Volume (Standard Tracked/Wheeled Plants):
- Capacity: 150 – 300 TPH
- Typical Range: $150,000 – $350,000
- Best for: Highway construction, medium-sized hard rock mining, and commercial aggregate production.
Heavy-Duty Multi-Stage Systems (Complete Tracked Trains):
- Capacity: 300 – 500+ TPH (e.g., Jaw + Cone + Screen combo)
- Typical Range: $400,000+
- Best for: Large-scale mining operations and mega-infrastructure projects requiring 24/7 continuous operation.
(Note: Prices vary based on generator brands, crusher types, and optional add-ons like dust suppression or metal separation systems.)
The ROI Math: Where Dingjoin Actually Saves You Money
The initial price tag is only half the story. The true ROI of a Dingjoin mobile plant comes from drastically cutting your hidden operational costs (OPEX). Let’s do the math:
A. Zero Civil Engineering & Setup Costs
- Stationary Plant: Requires concrete foundations, steel structures, and 30-45 days of installation. (Cost: $20,000 – $50,000+).
- Dingjoin Mobile Plant: $0 Foundation cost. Arrives on a flatbed, unfolds via hydraulics, and starts crushing in 24 hours.
B. Eliminating Haulage Costs (The Biggest Game Changer)
- The Scenario: Moving raw rock from the blasted face to a stationary plant 2 miles away.
- The Cost: At an average short-haul trucking cost of
1.50/ton,a2,000−ton/dayoperationwastes∗∗
3,000 daily** just moving rocks. - The Dingjoin Solution: Drive the tracked crusher directly to the rock face. You eliminate the transport of raw materials entirely. Savings: Over $80,000/month.
C. Lower Cost Per Ton (CPT)
Thanks to our Dual-Power System (Diesel/Electric), you can plug into the local grid when available. Crushing with grid electricity is typically 40%-60% cheaper than running purely on diesel fuel, driving your Cost Per Ton down to rock bottom.
A Real-World ROI Calculation (Example)
Let’s look at a typical 200 TPH Limestone Crushing Project using a Dingjoin Mobile Impact Crusher:
- Daily Production: 200 TPH × 10 hours = 2,000 tons/day.
- Market Value of Aggregates: $8.00 / ton (Varies by region).
- Gross Daily Revenue: $16,000.
- Estimated OPEX (Labor, Fuel/Power, Wear Parts, Maintenance): ~$1.50 – $2.00 / ton.
- Net Daily Profit: ~$12,000.
- Payback Period: Even factoring in downtime and market fluctuations, most Dingjoin customers recover their full CAPEX within 6 to 10 months. After that, it’s pure profit.
Tailored Solutions For Every Industry
⛰️ For Quarry Owners & Aggregate Suppliers
Produce premium, cubical aggregates that meet strict concrete and asphalt standards. Designed for quarry owners focused on maximizing daily output and profitability. Our heavy-duty crushing lines (stationary or mobile) reduce your cost-per-ton and ensure continuous uptime, even when processing highly abrasive rocks like granite and basalt.
♻️ For Demolition & Recycling Contractors
Turn urban demolition waste, bricks, and concrete into a profitable new revenue stream. Our portable crushers—equipped with powerful magnetic separators for rebar—allow demolition contractors to crush directly on-site. Eliminate exorbitant landfill tipping fees and heavy haulage costs while selling 100% recycled aggregates.
⛏️ For Mine Operators & Project Investors
Engineered for the extreme demands of gold, iron, and copper ore extraction. Equipment failure is not an option for mine investors. Our crushers feature massive bite angles and ultra-thick wear liners to crush the hardest ores 24/7, accelerating mineral liberation and securing a faster return on your heavy-asset investment.
🚧 For Civil & Earthmoving Contractors
The ultimate off-grid solution for remote road, bridge, and civil projects. Stop paying premium prices for third-party aggregate delivery. Civil contractors can deploy our mobile plants directly to the job site to crush excavated rocks into sub-base materials instantly, speeding up project timelines and drastically improving bidding margins.
🧱 For Precast & Concrete Supply
Perfect for precast yards or starting a micro-batching business. Unlike stationary plants that require high setup costs and land, our mobile unit offers precision weighing for specialized mix recipes (dry-mix or wet). It allows you to produce high-quality concrete blocks, pipes, or barriers on-demand, scaling your production volume without the heavy capital expenditure.
Tailored Solutions For Every Industry
Commercial Quarrying & Aggregates
⛰️ For Quarry Owners & Aggregate Suppliers
Produce premium, cubical aggregates that meet strict concrete and asphalt standards. Designed for quarry owners focused on maximizing daily output and profitability. Our heavy-duty crushing lines (stationary or mobile) reduce your cost-per-ton and ensure continuous uptime, even when processing highly abrasive rocks like granite and basalt.
C&D Waste Recycling
♻️ For Demolition & Recycling Contractors
Turn urban demolition waste, bricks, and concrete into a profitable new revenue stream. Our portable crushers—equipped with powerful magnetic separators for rebar—allow demolition contractors to crush directly on-site. Eliminate exorbitant landfill tipping fees and heavy haulage costs while selling 100% recycled aggregates.
Hard Rock & Mineral Mining
⛏️ For Mine Operators & Project Investors
Engineered for the extreme demands of gold, iron, and copper ore extraction. Equipment failure is not an option for mine investors. Our crushers feature massive bite angles and ultra-thick wear liners to crush the hardest ores 24/7, accelerating mineral liberation and securing a faster return on your heavy-asset investment.
Highway & Infrastructure
🚧 For Civil & Earthmoving Contractors
The ultimate off-grid solution for remote road, bridge, and civil projects. Stop paying premium prices for third-party aggregate delivery. Civil contractors can deploy our mobile plants directly to the job site to crush excavated rocks into sub-base materials instantly, speeding up project timelines and drastically improving bidding margins.
Why Dingjoin Mobile Crushing Plants Outperforms the Competition
We don’t just build machinery; we engineer profitable aggregate solutions. While others compromise on steel quality to cut prices, Dingjoin focuses on what truly matters to your bottom line: Maximum Uptime and Lowest Cost-Per-Ton.
1. Armor-Grade Wear Resistance
We use premium high-manganese steel for jaw plates, blow bars, and cone mantles. Our wear parts last up to 30% longer than standard market alternatives, drastically reducing your replacement frequency and maintenance costs.
2. Up to 25% Lower Operating Costs
Optimized hydraulic systems and intelligent Dual-Power (Diesel/Electric) drives ensure maximum crushing force with minimal energy waste. Crush more tons per gallon of diesel compared to legacy equipment.
3. Zero-Downtime Reliability
In the mining and aggregate business, downtime kills profits. Dingjoin plants feature centralized lubrication and smart PLC monitoring to prevent breakdowns before they happen, keeping your operation running 24/7.
4. Rapid Global Parts & Support
Buying a Dingjoin means you are never left in the dark. We maintain a robust inventory of critical spare parts ready for immediate global dispatch, backed by expert online technical support to keep your project on track.

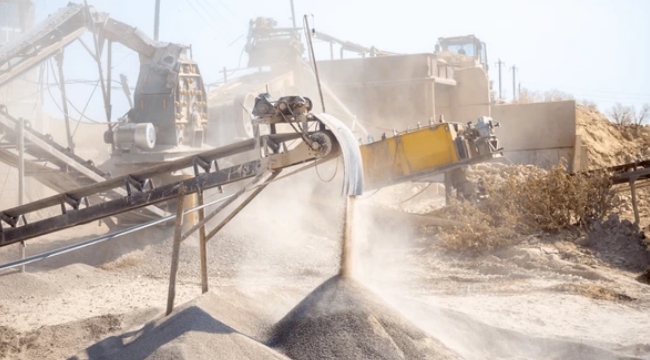

How Can Mobile Crushing Plants Work With Other Mining Machinery
A crushing plant is the processing heart of any mining or aggregate operation, but it never works in isolation. To achieve maximum productivity, reduce downtime, and lower operating costs, a crushing plant must integrate seamlessly with various other mining equipment. Together, they form a highly efficient, continuous production loop.
Here is how crushing plants collaborate with other key mining machinery:
1. Excavators and Haul Trucks: The Upstream Feeders
The entire process begins at the mining face. Excavators load blasted raw ores into heavy-duty haul trucks, which transport the materials to the crushing plant’s hopper. For optimal synergy, the payload capacity and frequency of the trucks must match the crusher’s hourly throughput. In the case of mobile crushing plants, excavators or wheel loaders can feed materials directly into the crusher, eliminating the need for haul trucks entirely.
2. Vibrating Feeders: Regulating the Flow
Situated between the hopper and the crusher, vibrating feeders play a crucial role in machine coordination. They prevent the crusher from choking or idling by feeding raw stones into the crushing chamber evenly and continuously. Advanced feeders can automatically adjust their vibration frequency based on the crusher’s real-time load, ensuring the crushing plant always operates at peak efficiency.

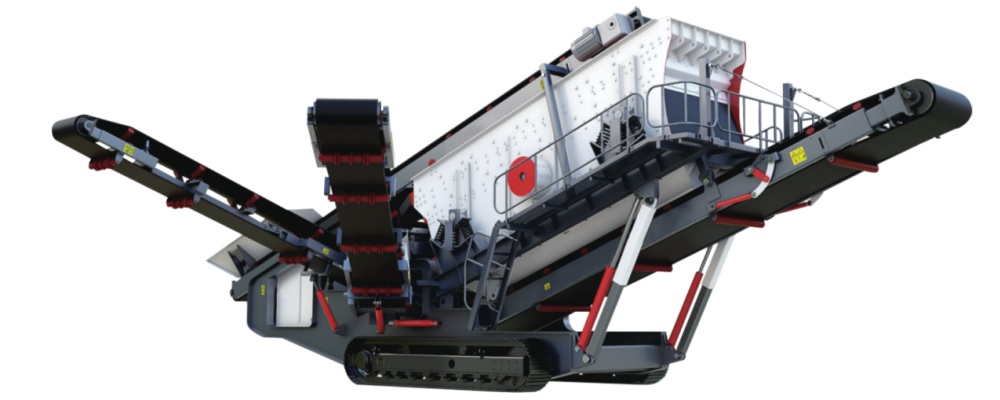

3. Screening Equipment: The Perfect Partners
Crushing and screening always go hand-in-hand. After primary or secondary crushing, the material is sent to a vibrating screen. The screen sorts the crushed stones by size: properly sized products move to the finished stockpile, while oversized materials are sent back to the crusher. This collaboration forms a closed-circuit crushing system, ensuring strict product size control and zero material waste.

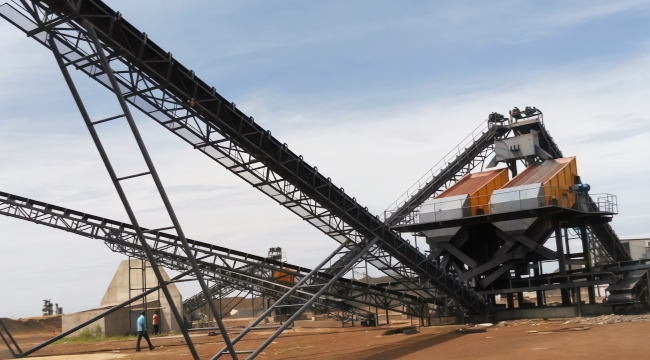

4. Belt Conveyors: The Circulatory System
If the crusher is the heart, belt conveyors are the veins of the mining site. They connect crushers, screens, washing plants, and stockpiles. Modern conveyors are synchronized with the crushing plant; if the crusher stops or overloads, the upstream conveyors automatically pause to prevent material spills, showcasing a high level of mechanical coordination.

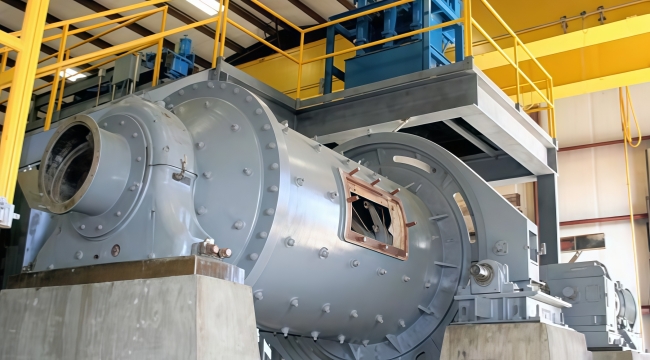

5. Grinding Mills: Downstream Processing
In metal mining (such as gold, copper, or iron ore), crushing plants act as the preliminary stage. By following the “more crushing, less grinding” principle, crushers reduce the ore to a specific fine size before sending it to ball mills or vertical roller mills. This synergistic workflow significantly reduces the energy consumption of the downstream grinding process.
6. Intelligent Automation Systems: The Brain of the Operation
Today, crushing plants and other machinery are unified under centralized smart control or IoT (Internet of Things) systems. Sensors monitor oil temperature, vibration, and motor loads across all equipment. This allows for one-button sequential start/stop of the entire production line and enables machines to “communicate” with each other, automatically adjusting processing speeds to avoid bottlenecks.

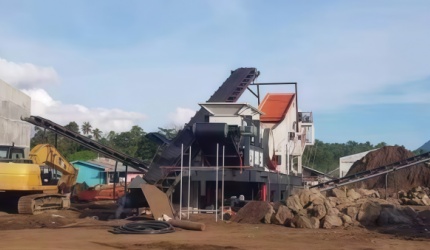

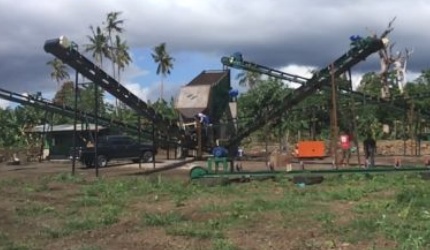

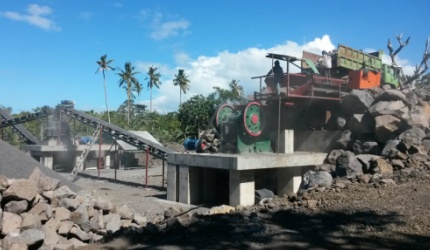

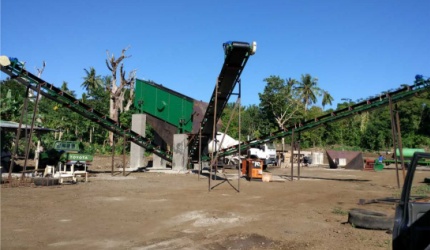

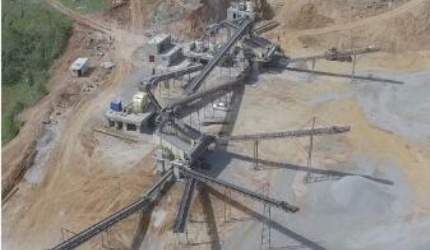

Global Cases of Mobile Crushing Plants
A global footprint built on proven results. Dingjoin’s crushing equipment has empowered countless aggregate producers and mining operators across continents. Every project represents our commitment to customized solutions, robust machinery, and seamless service. Dive into our global success stories to see how Dingjoin crushing plants are driving productivity worldwide.
Built to Perform. Proven to Profit.
Don’t just take our word for it. See how Dingjoin crushing plants are delivering measurable results for site owners worldwide:
- 30% Lower Maintenance Costs: Heavy-duty castings and optimized kinematics mean less wear and tear compared to industry averages.
- Up to 25% Energy Savings: Our advanced motor matching and “more crushing, less grinding” systems drastically cut down your monthly electricity bills.
- 100% On-Spec Aggregates: Precision chamber designs ensure perfect cubical shapes, allowing you to sell your end products at premium market prices.
Why Top Quarries and Miners Choose Dingjoin?
You are buying direct from the manufacturer. At Dingjoin, we control the quality from the raw steel to the final coat of paint.
- Direct Factory Pricing: Cut out the middleman. Get premium, European-standard crushing technology at highly competitive manufacturer-direct prices.
- Heavy-Duty Manufacturing: We don’t cut corners. Our crushers feature thicker steel plates, larger bearings, and forged main shafts to withstand the most brutal crushing environments.
- Custom Engineering Team: You aren’t buying off the shelf. Our in-house R&D team provides complete 3D flowsheets and structural blueprints tailored specifically to your site.
Dingjoin Service Promise
In the crushing business, downtime is your biggest enemy. That’s why Dingjoin doesn’t just sell you a plant and walk away. We are your long-term operational partner.
- Rapid Spare Parts Supply: We stock thousands of high-wear parts (jaw plates, blow bars, mantles) ready for immediate global dispatch. Never wait weeks for a replacement.
- On-Site Installation & Training: Our expert engineers will fly to your site to guide the installation, commission the equipment, and train your local operators to ensure maximum efficiency from day one.
- 24/7 Technical Support: Having a sudden issue? Our global technical team is just a call or WhatsApp message away, providing rapid troubleshooting to get you back up and running.
Your Journey to High-Profit Crushing in 4 Simple Steps
We make upgrading or building your crushing plant completely stress-free:
- Consult & Analyze: Send us your raw material, max feed size, and target capacity. We evaluate it for free.
- Custom Design & Quote: Within 48 hours, you receive a detailed 3D layout, equipment list, and a transparent quotation.
- Manufacture & Test: We build your machines with strict QC and perform rigorous pre-delivery testing.
- Delivery & Commissioning: We ship it globally, and our engineers arrive on-site to build, test, and hand over your running plant.
