Crushing Plant For Sale
“Maximize Aggregate Yield. High-Performance Crushing Solutions for Any Site.“
Ideal for Hard Rock Mining, Quarrying, Aggregate Production, and Construction Waste Recycling.
- Output Capacity: 50 ~ 1000 TPH (Customizable Plant Layouts)
- Configurations: Stationary, Portable (Wheeled), and Tracked Mobile Available
- Core Equipment: Premium Jaw, Cone, Impact, and VSI Crushers
- Turnkey Service: From Plant Design to On-Site Installation & Training
Crushing Plants
Seamlessly combine feeding, crushing, and screening in one highly portable unit. Eliminate expensive material transport costs and complex foundation building. Designed to boost operational efficiency for mining and recycling projects, allowing you to crush and screen continuously directly on-site with minimal setup time.
Max. Output
Power
Max. Feed Size
Final Product
50 ~ 1000 TPH
Diesel Engine (Cummins/Volvo) or Electric Driven
≤ 600mm
0-5mm / 5-10mm / 10-20mm (Adjustable Screen)
Using Applications:
Quarrying & Hard Rock Mining / Construction Waste Recycling / Highway & Railway Construction / Urban Infrastructure Projects.
What Materials Can Our Crushing Plant Process?
A high-performance crushing plant is defined by its versatility. Whether you are dealing with ultra-hard abrasive rocks, medium-soft minerals, or urban construction waste, Dingjoin crushing plants are engineered to process a vast spectrum of materials with precision and efficiency.
Based on material characteristics and industry applications, our crushing plants can effectively handle the following categories:
1. Hard and Abrasive Rocks
- Materials: Granite, Basalt, Quartz, Diabase, Gabbro, etc.
- Overview: These materials have high compressive strength and are highly abrasive. They require heavy-duty equipment like Jaw Crushers and Cone Crushers. Once processed, they provide excellent, durable aggregates for highway, railway, and high-strength concrete construction.
2. Medium-Hard and Soft Minerals
- Materials: Limestone, Dolomite, Gypsum, Calcite, Shale, Coal, etc.
- Overview: Often used in the cement, chemical, and building material industries. Because these materials are softer, Impact Crushers (PF series) are typically used to process them, delivering a high crushing ratio and excellent cubic-shaped end products.
3. Metal Ores (Mining & Beneficiation)
- Materials: Iron ore, Copper ore, Gold ore, Manganese ore, Bauxite, etc.
- Overview: In the mining sector, crushing is the critical first step before grinding. Dingjoin crushing plants effectively break down large ore blocks into smaller, uniform sizes, adopting the “more crushing, less grinding” principle to save energy in downstream processing.
4. Natural River Pebbles & Cobblestones
- Materials: River stone, Cobblestone, Gravel.
- Overview: River pebbles are widespread and inherently smooth but extremely hard. Using a combination of Cone Crushers and VSI (Vertical Shaft Impact) Sand Making Machines, these stones are reshaped and crushed into premium manufactured sand (M-Sand) to replace natural river sand.
5. Construction and Demolition (C&D) Waste
- Materials: Crushed concrete, asphalt rubble, old bricks, and glass.
- Overview: Sustainability is the future of construction. Equipped with magnetic separators to remove steel rebars, our mobile and stationary crushing plants can recycle C&D waste into reusable aggregates for road base and eco-friendly brick production.
2026-2030 Aggregate Crushing Plant Market Outlook
The global crushing equipment market is entering a phase of explosive growth, expanding from USD 6.56 billion in 2026 and projected to reach USD 10.99 billion by 2032. This represents a robust Compound Annual Growth Rate (CAGR) of 8.9%. This upward trajectory is primarily fueled by massive global investments in infrastructure, rapid urbanization in emerging economies, and sustained demand from the hard rock mining and aggregate sectors
Looking toward 2030, the market is experiencing a significant structural shift. B2B investors are increasingly favoring mobile and portable crushing plants. These highly flexible units drastically reduce material transportation costs and eliminate the need for complex, expensive concrete foundations.
Furthermore, driven by stringent environmental regulations and fuel cost optimization, the industry is seeing a rapid adoption of hybrid and electric-driven crushers. For modern contractors and quarry owners, investing in automated, high-mobility crushing solutions is no longer just about meeting daily capacity—it is the ultimate strategy to maximize ROI, ensure operational agility, and maintain a competitive edge in a booming aggregate market.
Major Types For Sale
Best for road construction, recycling, and remote quarrying where high mobility and fast setup are required.

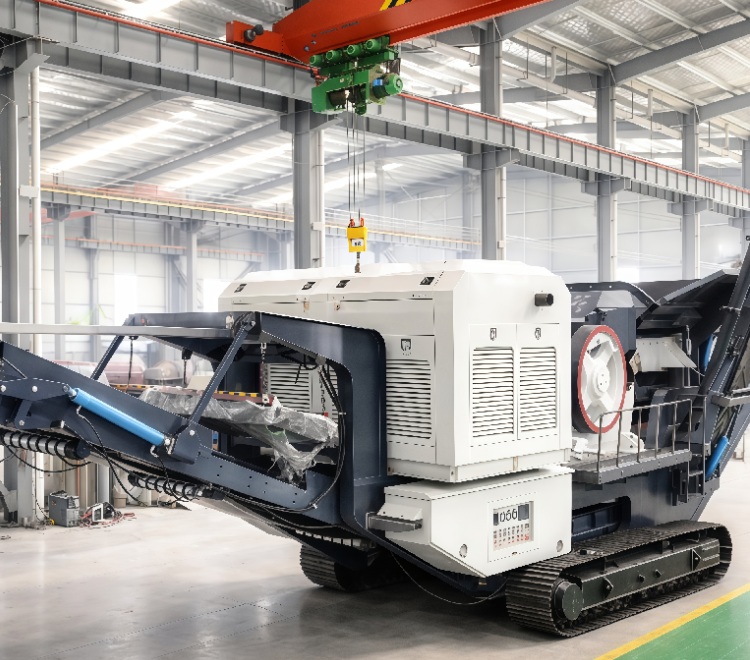

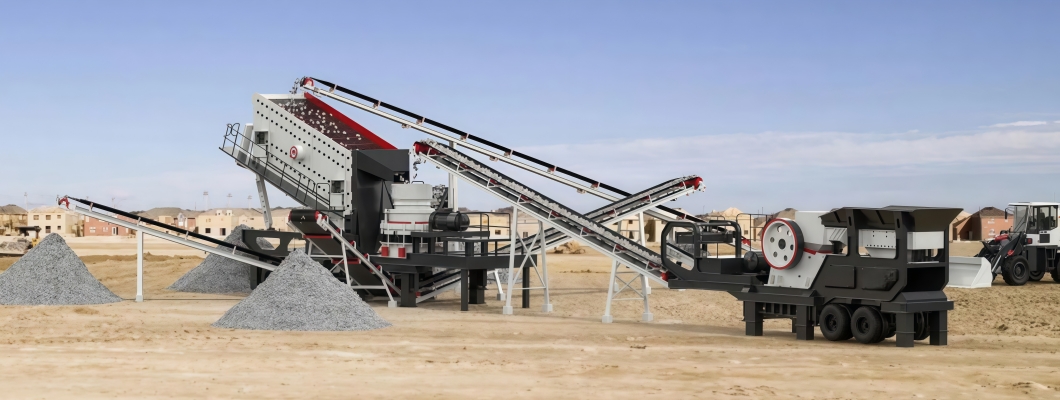

Mobile Crushing Plant
Models: Wheeled Jaw Series / Tracked Cone Series / Mobile Impact Series
Key Specs:
Output: 50 – 650 TPH
Feeding Size: 350-800mm
The ultimate plug-and-play aggregate solution. Powered by premium heavy-duty engines, eliminating foundation costs and allowing you to crush on-site, anytime, anywhere.
Best for large-scale commercial quarries and continuous hard-rock mining operations with fixed sites.

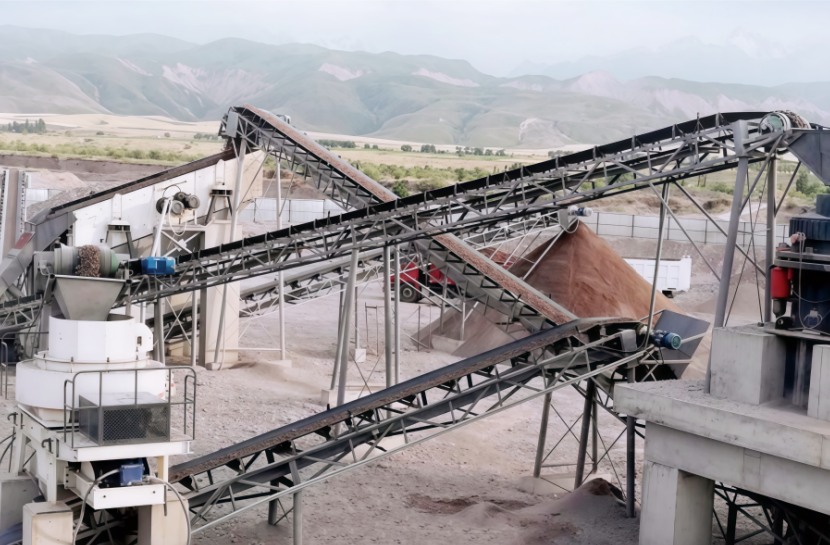

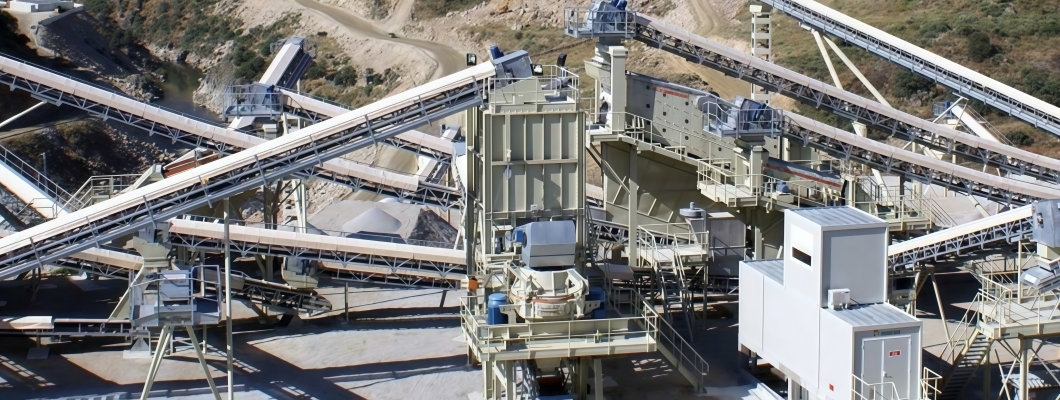

Stationary Crushing Plant
Models: PE Jaw Crusher / CS Symons Cone / PF Impact Crusher
Key Specs:
Output: 100 – 1000 TPH
Feeding Size: Customizable
Heavy-duty, high-capacity aggregate production lines. Custom-designed plant layouts with robust electric drives ensure maximum continuous yield and the lowest operational cost per ton.
Transform Any Rock into High-Profit Aggregates: Find Your Perfect Crushing Match
Don’t let the wrong equipment bottleneck your production and eat into your profits. At Dingjoin, we don’t just sell machines—we design high-ROI (Return on Investment) crushing circuits.
Whether you need to conquer 1,500mm massive boulders or produce premium 0-5mm manufactured sand, we supply the exact powerhouse to match your feed size, output goals, and budget.

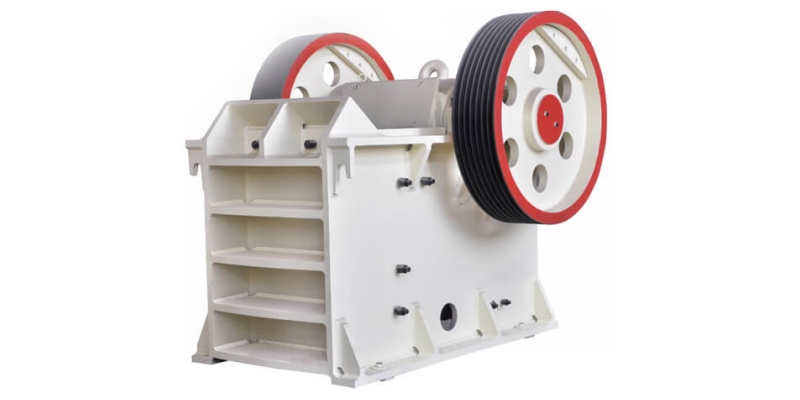

Step 1: Primary Crushing — Unstoppable Power for Massive Boulders
Tackle the toughest blasting materials straight from the quarry face. Built for brutal environments, our primary crushers guarantee maximum uptime and continuous large-feed intake.
- Max Feed Size: Up to 1,500 mm (60″)
- Target Output: 100 mm – 300 mm
- Your Profit Machines: Dingjoin Heavy-Duty Jaw Crushers (High crushing force, low maintenance).
Step 2: Secondary Crushing — High Tonnage, Perfect Shaping
Turn coarse stones into highly marketable, standard construction aggregates. Our secondary crushers are engineered to minimize wear-part costs while maximizing your daily production volume.
- Max Feed Size: 100 mm – 300 mm
- Target Output: 20 mm – 60 mm
- Your Profit Machines:

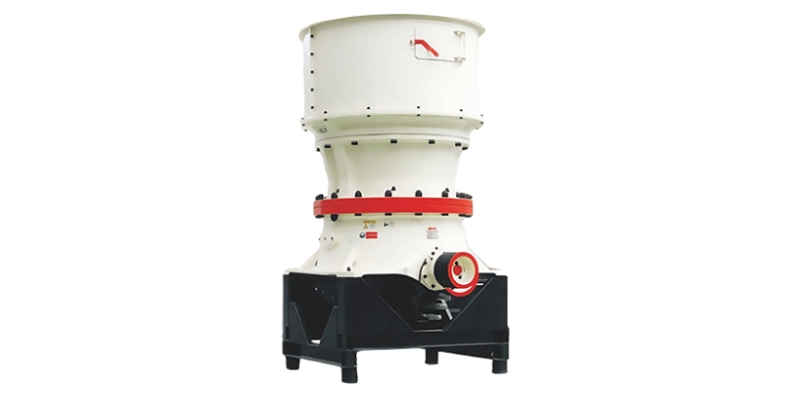

- Dingjoin Hydraulic Cone Crushers (Best for hard rock like granite & iron ore).

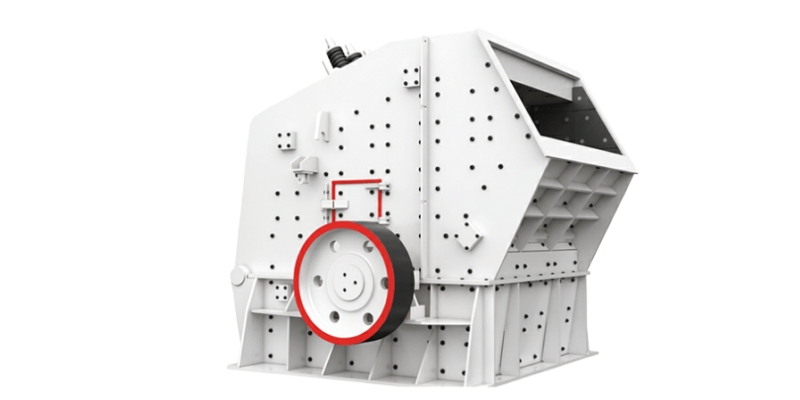

- Dingjoin Impact Crushers / HSI (Best for soft rock & perfect cubical shapes).

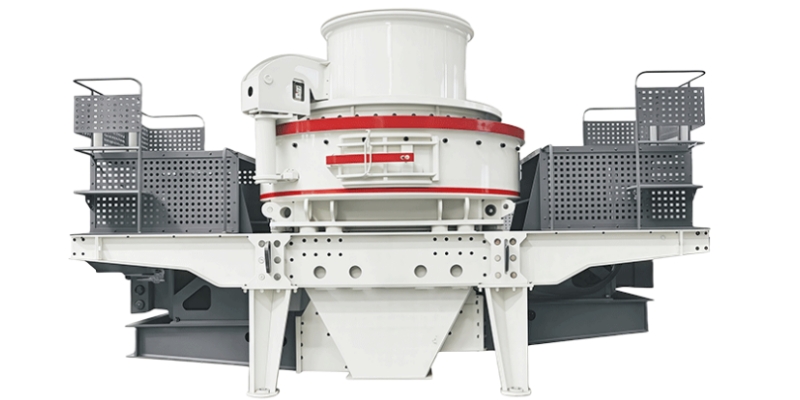

Step 3: Sand Making & Fine Crushing — Unlock Premium Profit Margins
Capitalize on the booming global demand for high-quality manufactured sand (M-Sand). Reshape and crush your aggregates into premium products that sell at top market prices.
- Max Feed Size: Under 50 mm (2″)
- Target Output: 0 – 5 mm (Premium M-Sand) or 5 – 20 mm (Fine Chips)
- Your Profit Machines: Dingjoin VSI Sand Makers (Advanced rock-on-rock technology for superior shaping).
Not Sure Which Setup Fits Your Quarry? Let Us Do the Math!
Stop guessing and start profiting. Tell us your raw material, maximum feed size, and desired hourly capacity. Our senior engineers will design a customized, cost-effective crushing plant layout for you—100% Free of Charge.
Specifications of Crushing Plants
Specifications of Wheeled Jaw Crushing Plant:
| Model | DJ-938HD86 | DJ-1149HD98 | DJ-1349HD110 | DJ-1349HD125 |
| Transportation Length(mm) | 12600 | 13500 | 14500 | 15200 |
| Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
| Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
| Maximum Length(mm) | 12500 | 14000 | 16100 | 16700 |
| Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
| Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
| Weight(t) | 39 | 57 | 62 | 67 |
| Tire Configuration | Dualaxial | triaxial | triaxia | triaxial |
| Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
| Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
| Discharge opening range(mm) | 50-150 | 75-175 | 100-200 | 125-225 |
| Capacity (tn) | 85-275 | 110-350 | 215-510 | 280-650 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | 3800×8.5M | B1000×9.5M | B1000×11M | B1200×11M |
| side-opening Belt conveyor(optional) | B500×3M | B650×3.5M | B650×4M | B650×4M |
| Genset(optional) | 200KW | 250KW | 270KW | 400KW |
| Iron remover(optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
Specifications of Crawler Jaw Crushing Plant
| Model | DJ-96 | DJ-106 |
| Bin Volume | 5m | 8m |
| Feeder | GZDT9538 | GZDT1145 |
| Jaw Crusher | CJ96 | CJ106 |
| Main Conveyor | B800X10m | B1000X11.5m |
| side conveyor(optional) | B500X3.2m | B650X3.5m |
| Iron Remover (optional) | RCYD650 | RCYD800 |
| Caterpillar | 400X3.8m | 500X3.8m |
| Speed | 0-20m/min | 0-20m/min |
| Climbing Ability | ±30 | ±30 |
| Engine Power | 96kw | 106kw |
| Total power | 112.9kw | 141.4kw |
| Overall Dimensions | 3.5mx3.4mx2.8m | 14.4mx3.6mx3.0m |
| Weight | 38t | 52.5t |
| Capacity | 300tph | 450tph |
Specifications of Crawler Impact Crushing Plant
| Model | DJ-96 | DJ-106 |
| Bin Volume | 5m | 8m |
| Feeder | GZDT9538 | GZDT1145 |
| Jaw Crusher | CJ96 | CJ106 |
| Main Conveyor | B800X10m | B1000X11.5m |
| side conveyor(optional) | B500X3.2m | B650X3.5m |
| Iron Remover (optional) | RCYD650 | RCYD800 |
| Caterpillar | 400X3.8m | 500X3.8m |
| Speed | 0-20m/min | 0-20m/min |
| Climbing Ability | ±30 | ±30 |
| Engine Power | 96kw | 106kw |
| Total power | 112.9kw | 141.4kw |
| Overall Dimensions | 3.5mx3.4mx2.8m | 14.4mx3.6mx3.0m |
| Weight | 38t | 52.5t |
| Capacity | 300tph | 450tph |
Discover Your Tailored Crushing Solution
Stop settling for one-size-fits-all setups that limit your profitability. At Dingjoin, we don’t just sell individual crushers—we deliver complete, high-ROI crushing plant solutions. From the first 3D site layout to final commissioning, we customize every circuit to your specific material, terrain, and production goals.
Choose the solution that drives your business forward:
1. High-Capacity Stationary Aggregate Plants
Built for Commercial Quarries & Mega-Projects
If your goal is to dominate the local aggregate market, this is your solution. Designed for 24/7 continuous operation, our stationary plants deliver massive hourly tonnage (up to 1,000+ TPH) with flawless, cubical aggregate shaping that meets the strictest highway and construction standards.
- Best For: River stone, limestone, basalt, granite.
- The Dingjoin Edge: Optimized material flow, automated control panels, and industry-leading low cost-per-ton.
2. Agile Mobile & Tracked Crushing Plants
Built for Contractors, Roadworks & Tough Terrains
Why pay to haul raw materials when you can crush them on-site? Dingjoin mobile crushers (wheel or track-mounted) offer true “plug-and-play” performance. Zero foundation costs, fast setup within hours, and the flexibility to move from job site to job site.
- Best For: Short-term projects, remote mines, multi-site contracting.
- The Dingjoin Edge: Diesel-electric dual power options, compact transport size, immediate ROI.

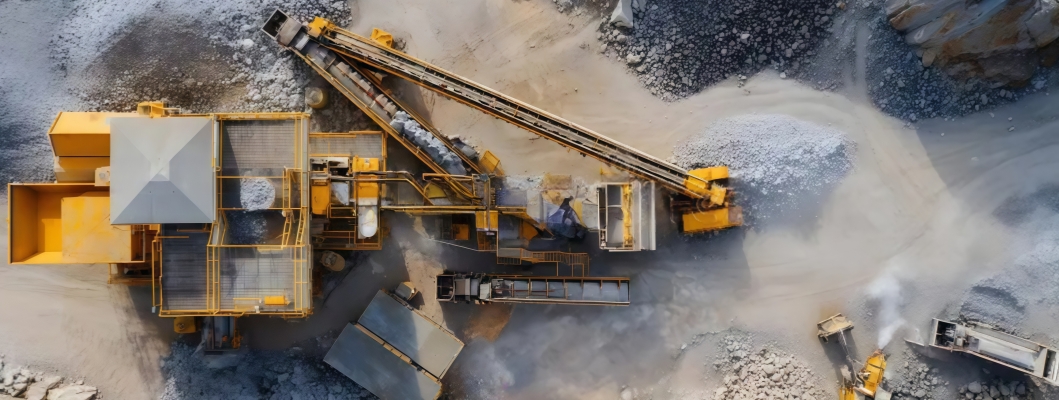

3. Heavy-Duty Mining Ore Crushing Plants
Built for Metal Mines (Gold, Iron, Copper)
In mineral processing, every dollar saved on grinding goes straight to your bottom line. Our mining crushing solutions are built brutally tough to handle extremely hard and abrasive ores. By adhering to the “more crushing, less grinding” principle, we significantly reduce the energy consumption of your downstream ball mills.
- Best For: High-abrasion metal ores and pre-grinding stages.
- The Dingjoin Edge: High-reduction ratios, robust wear parts, and zero-choke cavity designs.

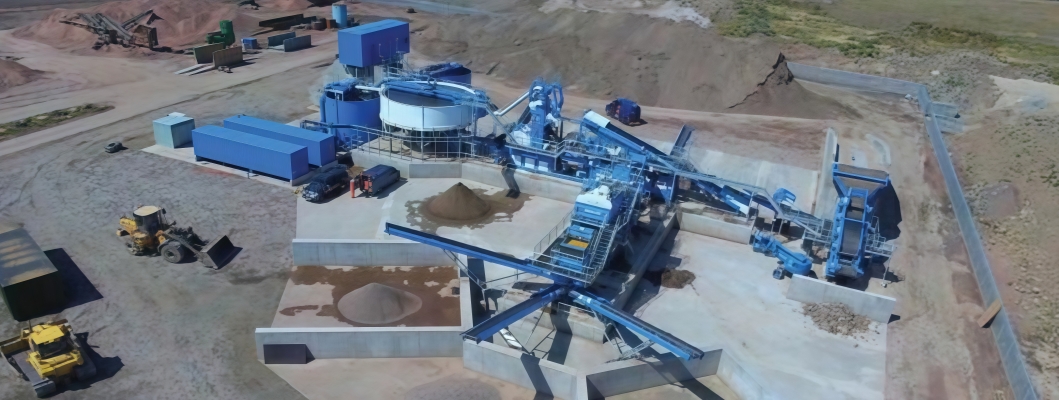

4. Eco-Friendly C&D Waste Recycling Plants
Built for Urban Sustainability & Green Profits
Turn urban trash into cash. With tipping fees rising and natural sand depleting, recycling Construction and Demolition (C&D) waste is highly profitable. Our recycling solutions are equipped with heavy-duty magnetic separators and dust-suppression systems to seamlessly process steel-reinforced concrete and asphalt.
- Best For: Old concrete, bricks, asphalt rubble.
- The Dingjoin Edge: Iron removal technology, noise reduction, and eco-compliant designs.
Your Turnkey Partner, From Blueprint to Profit
We provide a 100% turnkey service. Tell us your raw material, required capacity, and final product sizes, and Dingjoin will deliver a custom flowsheet, precise equipment matching, and a transparent ROI calculation.
Crush On-Site, Rapid Deployment.
The unit ingeniously mounts the vibrating feeder, main crusher, and folding conveyors onto a single robust chassis (wheeled or tracked). This integrated design completely eliminates the need for expensive concrete foundations, minimizing setup time and allowing rapid transition between different quarry and recycling sites.
Maximum Aggregate Yield, Minimal Wear.
Equipped with a premium jaw or impact crusher featuring an optimized V-shaped crushing cavity. This deep-cavity design ensures a massive bite angle and high reduction ratio, effortlessly processing hard rocks while significantly extending the lifespan of the wear liners (jaw plates/blow bars).
Lower Fuel Consumption, Higher Profit.
Offers flexible power options including high-torque diesel engines (Cummins/Weichai) and electric grid plug-ins. The dual-power capability guarantees uninterrupted operation in off-grid remote mining areas while massively reducing energy costs when commercial commercial power is available.
One-Button Operation & Remote Monitoring.
Features an advanced Siemens/Schneider PLC touchscreen panel with remote control capabilities. Operators can easily adjust the discharge opening (CSS), monitor hydraulic pressure, and track production rates from a safe distance, ensuring both maximum efficiency and site safety.
Cut Daily Maintenance Time by 50%.
Engineered with an automated, centralized grease lubrication system covering all critical bearings and pivot points. This significantly reduces daily maintenance labor, prevents premature part failures due to missed greasing, and ensures continuous, high-intensity crushing operations.
Fast Transport & High Stockpiling.
Integrated with high-strength discharge belts that feature a hydraulic folding mechanism for easy highway transport. Once on site, the extended conveyors deploy in minutes, providing massive aggregate stockpiling capacity and reducing the frequent need for wheel loaders.
Features of Crushing Plants
Integrated Portable Design
Crush On-Site, Rapid Deployment.
The unit ingeniously mounts the vibrating feeder, main crusher, and folding conveyors onto a single robust chassis (wheeled or tracked). This integrated design completely eliminates the need for expensive concrete foundations, minimizing setup time and allowing rapid transition between different quarry and recycling sites.
High-Reduction Crushing Chamber
Maximum Aggregate Yield, Minimal Wear.
Equipped with a premium jaw or impact crusher featuring an optimized V-shaped crushing cavity. This deep-cavity design ensures a massive bite angle and high reduction ratio, effortlessly processing hard rocks while significantly extending the lifespan of the wear liners (jaw plates/blow bars).
Dual-Power Drive System
Lower Fuel Consumption, Higher Profit.
Offers flexible power options including high-torque diesel engines (Cummins/Weichai) and electric grid plug-ins. The dual-power capability guarantees uninterrupted operation in off-grid remote mining areas while massively reducing energy costs when commercial commercial power is available.
Smart PLC Control System
One-Button Operation & Remote Monitoring.
Features an advanced Siemens/Schneider PLC touchscreen panel with remote control capabilities. Operators can easily adjust the discharge opening (CSS), monitor hydraulic pressure, and track production rates from a safe distance, ensuring both maximum efficiency and site safety.
Centralized Lubrication System
Cut Daily Maintenance Time by 50%.
Engineered with an automated, centralized grease lubrication system covering all critical bearings and pivot points. This significantly reduces daily maintenance labor, prevents premature part failures due to missed greasing, and ensures continuous, high-intensity crushing operations.
Forced Air Cooling System
Fast Transport & High Stockpiling.
Integrated with high-strength discharge belts that feature a hydraulic folding mechanism for easy highway transport. Once on site, the extended conveyors deploy in minutes, providing massive aggregate stockpiling capacity and reducing the frequent need for wheel loaders.
Dingjoin Crushing Plants Prices & ROI Analysis
Investing in a Dingjoin crushing plant is not just about purchasing machinery—it is about securing a high-yield aggregate production asset. We design our plants to ensure the lowest cost per ton and the fastest return on investment (ROI) in the industry.
Entry-Level Stationary Plants (50-150 TPH)
- Best For: Small quarries, starter aggregate businesses.
- Investment Level: Highly Cost-Effective
- Highlights: Simple foundation, reliable output, lowest initial capital required.
Portable / Wheeled Crushing Plants (100-300 TPH)
- Best For: Mid-sized contractors, multiple-site recycling projects.
- Investment Level: Balanced ROI
- Highlights: Semi-mobile chassis, saves 40% on material transport costs.
Heavy-Duty Tracked Mobile Plants (150-500+ TPH)
- Best For: Large-scale mining, complex terrains, commercial aggregate production.
- Investment Level: Premium Investment
- Highlights: Zero foundation cost, ultimate mobility, highest resale value.
Why Dingjoin clients typically achieve full ROI in 6 to 8 months:
- Reduced Operational Costs: Our optimized jaw and cone chambers, paired with dual-power (Diesel/Electric) systems, cut daily fuel and energy expenses by up to 25%.
- Zero Setup & Transport Fees (Mobile Units): By crushing directly on-site, you eliminate the massive logistics costs of hauling raw materials to a fixed plant.
- High-Value End Products: Precise screening ensures uniform, high-grade aggregates (0-5mm, 5-20mm) that command premium prices in the local construction market.
Tailored Solutions For Every Industry
⛰️ For Quarry Owners & Aggregate Suppliers
Produce premium, cubical aggregates that meet strict concrete and asphalt standards. Designed for quarry owners focused on maximizing daily output and profitability. Our heavy-duty crushing lines (stationary or mobile) reduce your cost-per-ton and ensure continuous uptime, even when processing highly abrasive rocks like granite and basalt.
♻️ For Demolition & Recycling Contractors
Turn urban demolition waste, bricks, and concrete into a profitable new revenue stream. Our portable crushers—equipped with powerful magnetic separators for rebar—allow demolition contractors to crush directly on-site. Eliminate exorbitant landfill tipping fees and heavy haulage costs while selling 100% recycled aggregates.
⛏️ For Mine Operators & Project Investors
Engineered for the extreme demands of gold, iron, and copper ore extraction. Equipment failure is not an option for mine investors. Our crushers feature massive bite angles and ultra-thick wear liners to crush the hardest ores 24/7, accelerating mineral liberation and securing a faster return on your heavy-asset investment.
🚧 For Civil & Earthmoving Contractors
The ultimate off-grid solution for remote road, bridge, and civil projects. Stop paying premium prices for third-party aggregate delivery. Civil contractors can deploy our mobile plants directly to the job site to crush excavated rocks into sub-base materials instantly, speeding up project timelines and drastically improving bidding margins.
🧱 For Precast & Concrete Supply
Perfect for precast yards or starting a micro-batching business. Unlike stationary plants that require high setup costs and land, our mobile unit offers precision weighing for specialized mix recipes (dry-mix or wet). It allows you to produce high-quality concrete blocks, pipes, or barriers on-demand, scaling your production volume without the heavy capital expenditure.
Tailored Solutions For Every Industry
Commercial Quarrying & Aggregates
⛰️ For Quarry Owners & Aggregate Suppliers
Produce premium, cubical aggregates that meet strict concrete and asphalt standards. Designed for quarry owners focused on maximizing daily output and profitability. Our heavy-duty crushing lines (stationary or mobile) reduce your cost-per-ton and ensure continuous uptime, even when processing highly abrasive rocks like granite and basalt.
C&D Waste Recycling
♻️ For Demolition & Recycling Contractors
Turn urban demolition waste, bricks, and concrete into a profitable new revenue stream. Our portable crushers—equipped with powerful magnetic separators for rebar—allow demolition contractors to crush directly on-site. Eliminate exorbitant landfill tipping fees and heavy haulage costs while selling 100% recycled aggregates.
Hard Rock & Mineral Mining
⛏️ For Mine Operators & Project Investors
Engineered for the extreme demands of gold, iron, and copper ore extraction. Equipment failure is not an option for mine investors. Our crushers feature massive bite angles and ultra-thick wear liners to crush the hardest ores 24/7, accelerating mineral liberation and securing a faster return on your heavy-asset investment.
Highway & Infrastructure
🚧 For Civil & Earthmoving Contractors
The ultimate off-grid solution for remote road, bridge, and civil projects. Stop paying premium prices for third-party aggregate delivery. Civil contractors can deploy our mobile plants directly to the job site to crush excavated rocks into sub-base materials instantly, speeding up project timelines and drastically improving bidding margins.
Why Dingjoin Crushing Plants Outperforms the Competition
We don’t just build machinery; we engineer profitable aggregate solutions. While others compromise on steel quality to cut prices, Dingjoin focuses on what truly matters to your bottom line: Maximum Uptime and Lowest Cost-Per-Ton.
1. Armor-Grade Wear Resistance
We use premium high-manganese steel for jaw plates, blow bars, and cone mantles. Our wear parts last up to 30% longer than standard market alternatives, drastically reducing your replacement frequency and maintenance costs.
2. Up to 25% Lower Operating Costs
Optimized hydraulic systems and intelligent Dual-Power (Diesel/Electric) drives ensure maximum crushing force with minimal energy waste. Crush more tons per gallon of diesel compared to legacy equipment.
3. Zero-Downtime Reliability
In the mining and aggregate business, downtime kills profits. Dingjoin plants feature centralized lubrication and smart PLC monitoring to prevent breakdowns before they happen, keeping your operation running 24/7.
4. Rapid Global Parts & Support
Buying a Dingjoin means you are never left in the dark. We maintain a robust inventory of critical spare parts ready for immediate global dispatch, backed by expert online technical support to keep your project on track.
How Can Crushing Plants Work With Other Mining Machinery
A crushing plant is the processing heart of any mining or aggregate operation, but it never works in isolation. To achieve maximum productivity, reduce downtime, and lower operating costs, a crushing plant must integrate seamlessly with various other mining equipment. Together, they form a highly efficient, continuous production loop.
Here is how crushing plants collaborate with other key mining machinery:
1. Excavators and Haul Trucks: The Upstream Feeders
The entire process begins at the mining face. Excavators load blasted raw ores into heavy-duty haul trucks, which transport the materials to the crushing plant’s hopper. For optimal synergy, the payload capacity and frequency of the trucks must match the crusher’s hourly throughput. In the case of mobile crushing plants, excavators or wheel loaders can feed materials directly into the crusher, eliminating the need for haul trucks entirely.
2. Vibrating Feeders: Regulating the Flow
Situated between the hopper and the crusher, vibrating feeders play a crucial role in machine coordination. They prevent the crusher from choking or idling by feeding raw stones into the crushing chamber evenly and continuously. Advanced feeders can automatically adjust their vibration frequency based on the crusher’s real-time load, ensuring the crushing plant always operates at peak efficiency.
3. Screening Equipment: The Perfect Partners
Crushing and screening always go hand-in-hand. After primary or secondary crushing, the material is sent to a vibrating screen. The screen sorts the crushed stones by size: properly sized products move to the finished stockpile, while oversized materials are sent back to the crusher. This collaboration forms a closed-circuit crushing system, ensuring strict product size control and zero material waste.
4. Belt Conveyors: The Circulatory System
If the crusher is the heart, belt conveyors are the veins of the mining site. They connect crushers, screens, washing plants, and stockpiles. Modern conveyors are synchronized with the crushing plant; if the crusher stops or overloads, the upstream conveyors automatically pause to prevent material spills, showcasing a high level of mechanical coordination.
5. Grinding Mills: Downstream Processing
In metal mining (such as gold, copper, or iron ore), crushing plants act as the preliminary stage. By following the “more crushing, less grinding” principle, crushers reduce the ore to a specific fine size before sending it to ball mills or vertical roller mills. This synergistic workflow significantly reduces the energy consumption of the downstream grinding process.
6. Intelligent Automation Systems: The Brain of the Operation
Today, crushing plants and other machinery are unified under centralized smart control or IoT (Internet of Things) systems. Sensors monitor oil temperature, vibration, and motor loads across all equipment. This allows for one-button sequential start/stop of the entire production line and enables machines to “communicate” with each other, automatically adjusting processing speeds to avoid bottlenecks.

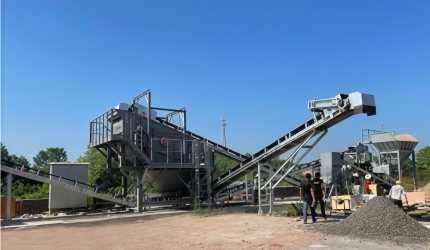

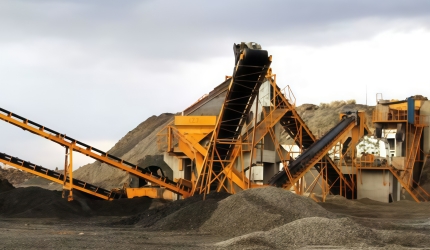

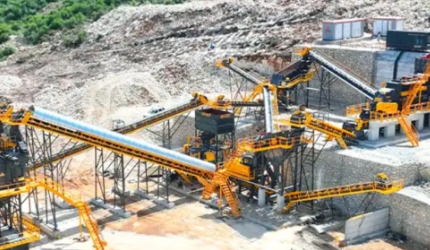

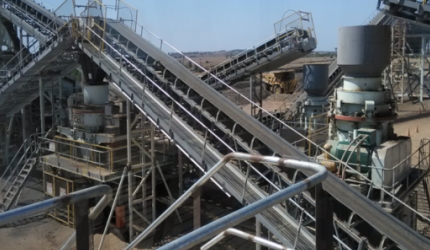

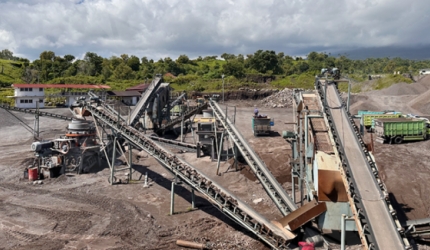

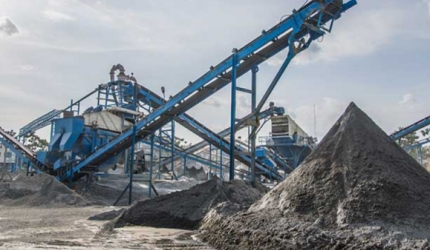

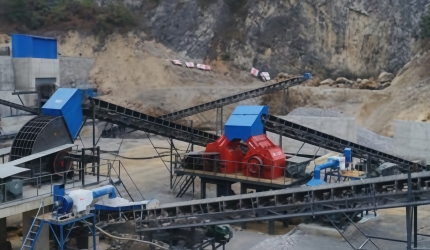

Global Cases of Crushing Plants
A global footprint built on proven results. Dingjoin’s crushing equipment has empowered countless aggregate producers and mining operators across continents. Every project represents our commitment to customized solutions, robust machinery, and seamless service. Dive into our global success stories to see how Dingjoin crushing plants are driving productivity worldwide.
Built to Perform. Proven to Profit.
Don’t just take our word for it. See how Dingjoin crushing plants are delivering measurable results for site owners worldwide:
- 30% Lower Maintenance Costs: Heavy-duty castings and optimized kinematics mean less wear and tear compared to industry averages.
- Up to 25% Energy Savings: Our advanced motor matching and “more crushing, less grinding” systems drastically cut down your monthly electricity bills.
- 100% On-Spec Aggregates: Precision chamber designs ensure perfect cubical shapes, allowing you to sell your end products at premium market prices.
Why Top Quarries and Miners Choose Dingjoin?
You are buying direct from the manufacturer. At Dingjoin, we control the quality from the raw steel to the final coat of paint.
- Direct Factory Pricing: Cut out the middleman. Get premium, European-standard crushing technology at highly competitive manufacturer-direct prices.
- Heavy-Duty Manufacturing: We don’t cut corners. Our crushers feature thicker steel plates, larger bearings, and forged main shafts to withstand the most brutal crushing environments.
- Custom Engineering Team: You aren’t buying off the shelf. Our in-house R&D team provides complete 3D flowsheets and structural blueprints tailored specifically to your site.
Dingjoin Service Promise
In the crushing business, downtime is your biggest enemy. That’s why Dingjoin doesn’t just sell you a plant and walk away. We are your long-term operational partner.
- Rapid Spare Parts Supply: We stock thousands of high-wear parts (jaw plates, blow bars, mantles) ready for immediate global dispatch. Never wait weeks for a replacement.
- On-Site Installation & Training: Our expert engineers will fly to your site to guide the installation, commission the equipment, and train your local operators to ensure maximum efficiency from day one.
- 24/7 Technical Support: Having a sudden issue? Our global technical team is just a call or WhatsApp message away, providing rapid troubleshooting to get you back up and running.
Your Journey to High-Profit Crushing in 4 Simple Steps
We make upgrading or building your crushing plant completely stress-free:
- Consult & Analyze: Send us your raw material, max feed size, and target capacity. We evaluate it for free.
- Custom Design & Quote: Within 48 hours, you receive a detailed 3D layout, equipment list, and a transparent quotation.
- Manufacture & Test: We build your machines with strict QC and perform rigorous pre-delivery testing.
- Delivery & Commissioning: We ship it globally, and our engineers arrive on-site to build, test, and hand over your running plant.
