Self Loading Concrete Mixer For Sale
“Produce Concrete Anywhere, Anytime. Cost-Effective Mobile Batching Plant.“
Perfect for Road Construction, Building Projects, and Concrete Rental Businesses.
- CE/ISO Certified
- Parts Available Globally
- Engine: Cummins/Yuchai Optional
Self Load Concrete Mixer
Turn your job site into an independent batching plant. Our self-loading concrete mixer is a 4-in-1 machine: it self-loads, weighs, mixes, and discharges automatically. No need for a separate loader, mixer, or extra crew.
Capacity Range
Power
Steering
Climbing Ability
1.2-6.5m³
Yuchai engine options.
4×4 Off-road drive
30% Gradeability
Using Applications:
Remote infrastructure, road, bridges Construction / Mining / Paving /Tunneling
2026-2030 Self Loading Concrete Mixer Market Analysis
The global shift toward autonomous construction is accelerating. According to Fact.MR, the self-loading mixer market is projected to surge to USD 16.5 billion by 2030, expanding at a robust 7.5% CAGR. This growth is not accidental; it is a direct industry response to the urgent need for cost-efficiency.
For contractors, the data presents a clear mandate: adoption is key to profitability.
The integrated loading-mixing-transporting capability is data-proven to reduce labor costs by 30% and improve operational efficiency by 40% compared to traditional methods. As infrastructure projects across Asia-Pacific and Africa intensify—fueled by initiatives like the Belt and Road—reliance on static batching plants is becoming a liability.
Furthermore, owning this asset hedges against raw material volatility. You stop paying for ‘waiting time’ and rigid commercial concrete pricing, effectively lowering your cost-per-cubic-meter by an estimated 20-30%. In a bidding environment where margins are razor-thin, the ability to produce certified concrete on-demand is not just a convenience; it is a competitive necessity. Investing now means securing your project’s independence and profitability for the next decade.
Major Types For Sale
Best for road paving, foundations, and remote infrastructure projects.

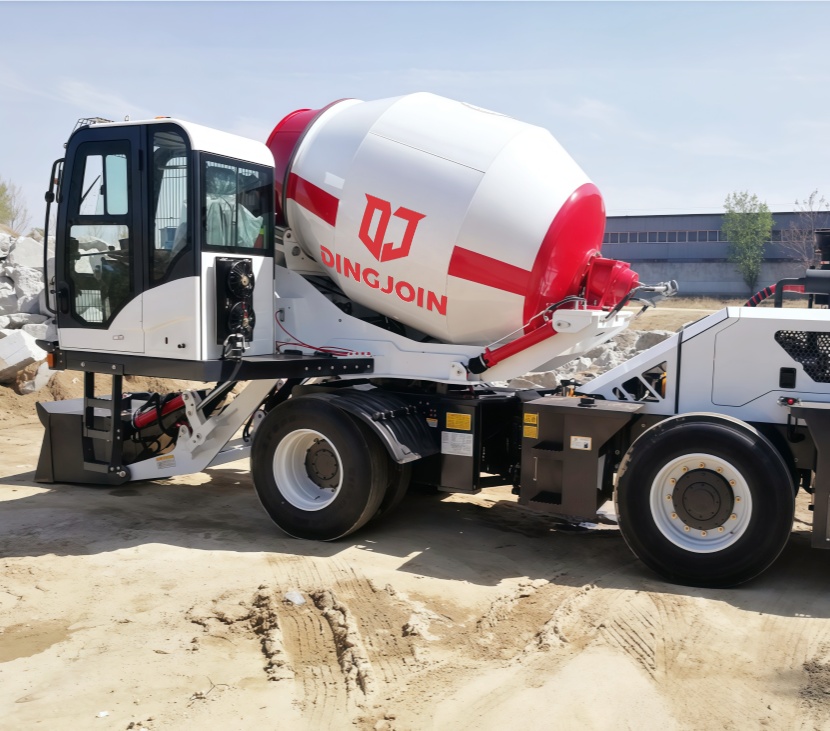

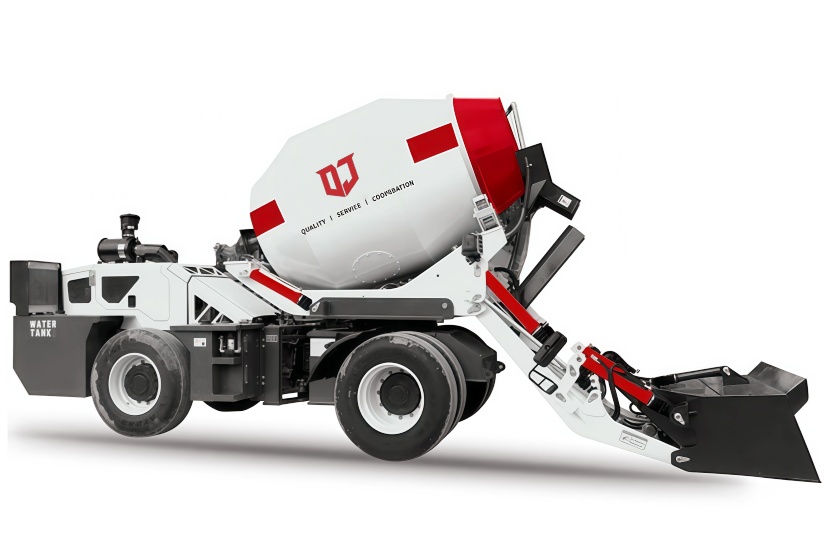

Self Loading Concrete Mixer (Drum Type)
Models: DJ-1.2 / DJ-2.0 / DJ-3.5 / DJ-4.0 / DJ-5.5 / DJ-6.5
Key Specs:
Capacity: 1.2 – 6.5 m³
Steering: 4×4 Off-Road Drive
The flagship 4-in-1 mobile batching plant. Features a 270° slewing drum (on models 2.0m³ and up) for flexible discharge. It automatically loads, weighs, mixes, and transports concrete, making it the perfect replacement for loaders and static mixers on open construction sites.
Specialized for tunnels, underground mines, and precast yards requiring low-profile equipment.

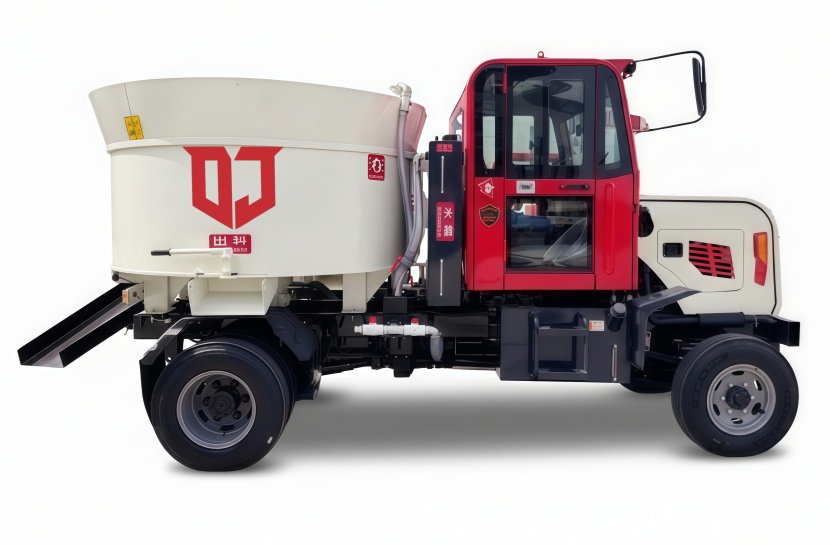

Self Loading Pan Mixer (Flat Type)
Models: DJP-1.2 / DJP-1.6 / DJP-2.0
Key Specs:
Capacity: 1.2 – 2.0 m³
Mixer Type: Flat Pan (Forced Mixing)
Designed for height-restricted environments where standard drums cannot fit. The flat pan mixer offers a lower profile for entering tunnels and mines. It utilizes forced mixing action (like a batching plant) to produce higher homogeneity concrete, ideal for precast components and structural tunnel lining.
Specifications of Self Loading Mixer
Specifications of Drum mix self loaded mixer
| Equipment Model | DJ-1.2 | DJ-1.8 | DJ-2.0 | DJ-2.6 | DJ-3.5 | DJ-4.0 | DJ-5.5 | DJ-6.5 |
| Discharge Capacity | 1.2m3 | 1.8m3 | 2m3 | 2.6m3 | 3.5m3 | 4m3 | 5.5m3 | 6.5m3 |
| Output/Capacity | 5~10m3/h | 8~12m3/h | 10m3/h | 11~17 m3/h | 14~18m3/h | 16~20m3/h | 22~25m3/h | 26~30m3/h |
| Engine Model | YUNNEI supercharged engine | Yuchai 4102 Turbo-charged | Yuchai 4105 Turbo-charged | Yuchai 4108 Turbo-charged | Yuchai Turbo-charged | Weichai deutz 6105 Pressure boost | ||
| Rated Power | 58KW | 78KW | 78KW | 78KW | 85KW | 91KW | 92KW~110KW | 92KW~110KW |
| Gear | 4 forward 4 back | 4 forward 4 back | 4 forward 4 back | 4 forward 4 back | 4 forward 4 back | 4 forward 4 back | 4 forward 4 back | 4 forward 4 back |
| Oil Tank | 16 liters | 16 liters | 16 liters | 16 liters | 16 liters | 16 liters | 16 liters | 16 liters |
| Water Tank | 400L | 500L | 500L | 500L | 780L | 850L | 1200L | 1465L |
| Water Supply | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay |
| Overall dimensions(L*W*H) | 6400*2550*2450 | 7300*2650*3750 | 7300*2650*3750 | 7800*2720*3000 | 7800*2720*3300 | 8450*3100*4580 | 8450*3100*4580 | 8450*3050*3860 |
| Curb Weight (kg) | 4185 | 6500 | 6500 | 6500 | 7200 | 8500 | 11200 | 12520 |
| Drum Rotate | 270º | 270º | 270º | 270º | 270º | 270º | 270º | 290º |
Specifications of self loading pan mixer
| Equipment Model | DJP-1.2 | DJP-1.6 | DJP-2.0 |
| Engine Model | CHANGFA490 TURBO-CHARGED | YUNNEI 4102 | YUNNEI 4102 |
| Rated Power | 55-60kw | 76-78kw | 76-78kw |
| Drum Speed (R/M) | 8-20 | 8-20 | 8-20 |
| Gear Box Model | ZL-265 power shift gearbbox | ZL-265 power shift gearbbox | ZL-265 power shift gearbbox |
| Gear | 4 forward 4 back | 4 forward 4 back | 4 forward 4 back |
| Total Hydraulic System Capacity | 60 liters | 60 liters | 60 liters |
| Oil Tank | 16 liters | 16 liters | 16 liters |
| Water Tank | 550L | 550L | 550L |
| Water Supply | Time relay | Time relay | Time relay |
| Overall Dimensions(L*W*H) | 4750*2750*1870 | 4950*2950*1870 | 5500*2100*2900 |
| Wheelbase (mm) | 2900 | 2900 | 2900 |
| Curb Weight (kg) | 4000 | 4000 | 4000 |
| Drive Form | Torque converter | Torque converter | Torque converter |
| Max.Speed (km/h) | 30 | 30 | 30 |
| Maximum Grade | 30º | 30º | 30º |
| Maximum Turning Radius (mm) | 5300 | 5300 | 5300 |
| Minimum Ground Clearance (mm) | 380 | 380 | 380 |
The Freedom to Pour Anywhere.
The mixing drum is engineered on a heavy-duty slew ring that rotates 270 degrees horizontally. Coupled with hydraulic tilting, this allows the operator to discharge concrete at heights over 2 meters on all four sides of the vehicle. This capability drastically reduces truck repositioning time, making it indispensable for narrow tunnels, trench filling, and crowded urban foundation sites where maneuvering space is zero.
Unstoppable on Rough Terrain.
Designed specifically for extreme environments, the chassis features a full-time 4-wheel drive system paired with high-flotation steel wire tires. Whether facing deep mud, slippery mining roads, or 30% steep gradients, the articulated body and high-torque transmission ensure consistent traction. Unlike standard transit mixers that get stuck easily, this machine powers through the toughest job site conditions without needing a tow.
Laboratory-Grade Concrete Quality.
Forget guesswork. Our unit integrates a proprietary electronic weighing system with hydraulic load cells located on the loading arm. The operator can monitor the exact weight of aggregate, cement, and water in real-time via the cabin display. This ensures strict adherence to mix recipes with ±2% accuracy, allowing you to produce certified structural concrete comparable to commercial batching plants.
Built for Abrasive Environments.
Durability is in our DNA. The entire mixing drum is constructed from 5-8mm thick high-strength Q345B manganese steel, offering superior wear resistance compared to standard carbon steel. Inside, the double-screw logarithmic variable pitch blades ensure homogenous mixing in minutes while minimizing residual material during discharge, extending the drum’s service life by over 30%.
Master Operation in 15 Minutes.
Complex operations are simplified into a single hydraulic pilot joystick. This intuitive “all-in-one” control manages the bucket loading, arm lifting, drum mixing, and rotation. The ergonomic design significantly reduces operator fatigue during long shifts and lowers the skill barrier, allowing even inexperienced drivers to operate the machine efficiently with minimal training.
Replace Your Wheel Loader.
The hydraulic loading bucket is not just a shovel; it is a precision tool. Equipped with high-pressure cylinders for rapid lifting and pre-installed cement bag cutting blades, it streamlines the feeding process. The bucket design prevents material spillage and ensures a full load cycle is completed in under 60 seconds, completely eliminating the need for an auxiliary wheel loader on site.

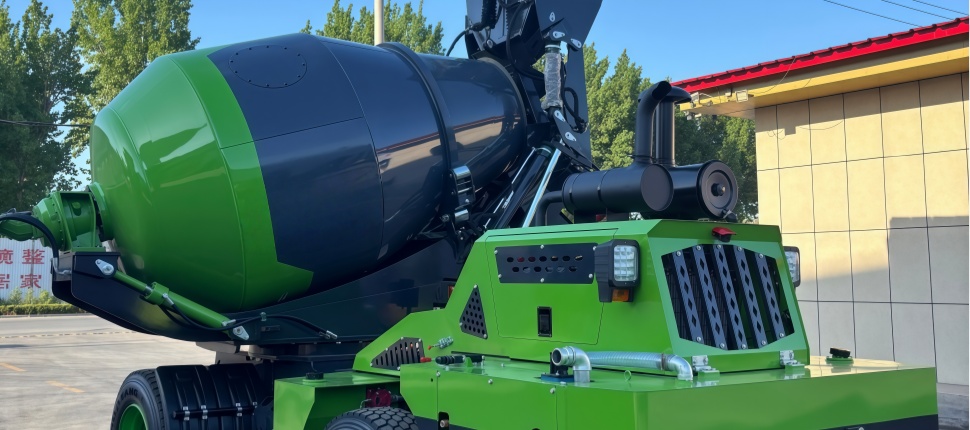

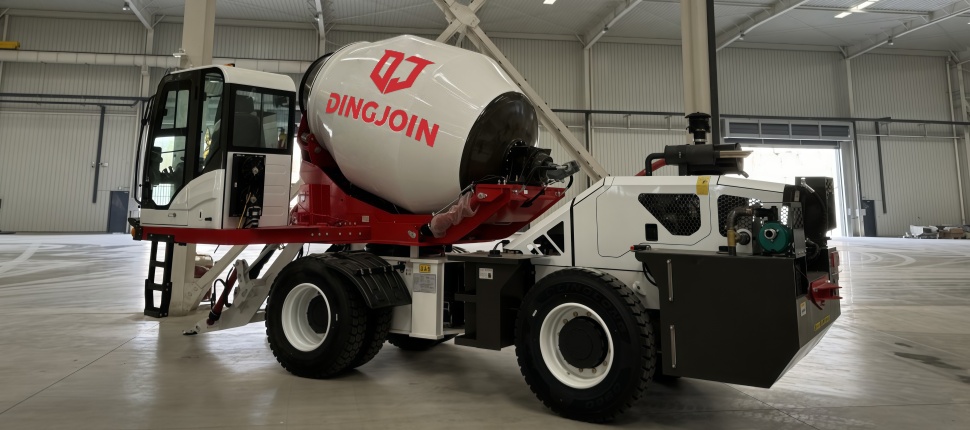

Features of Self Load Mixer
270° Horizontal Slewing Drum
The Freedom to Pour Anywhere.
The mixing drum is engineered on a heavy-duty slew ring that rotates 270 degrees horizontally. Coupled with hydraulic tilting, this allows the operator to discharge concrete at heights over 2 meters on all four sides of the vehicle. This capability drastically reduces truck repositioning time, making it indispensable for narrow tunnels, trench filling, and crowded urban foundation sites where maneuvering space is zero.

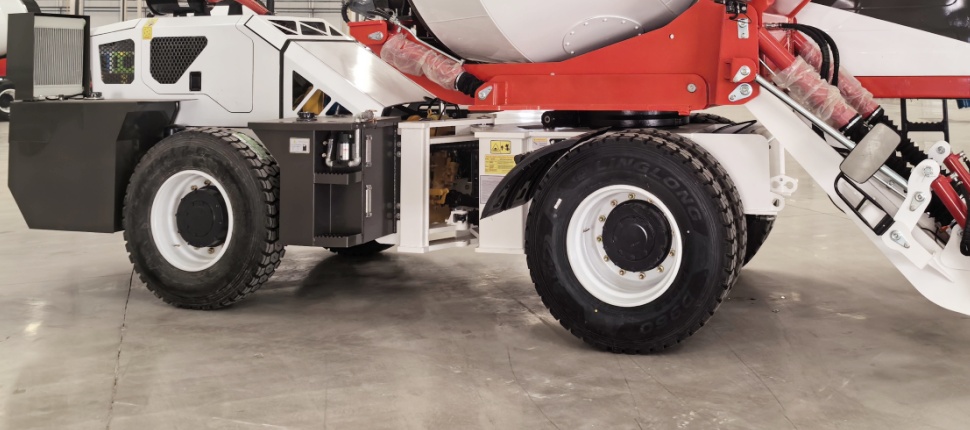

Full-Time 4×4 Off-Road Drive
Unstoppable on Rough Terrain.
Designed specifically for extreme environments, the chassis features a full-time 4-wheel drive system paired with high-flotation steel wire tires. Whether facing deep mud, slippery mining roads, or 30% steep gradients, the articulated body and high-torque transmission ensure consistent traction. Unlike standard transit mixers that get stuck easily, this machine powers through the toughest job site conditions without needing a tow.
High-Precision Electronic Weighing
Laboratory-Grade Concrete Quality.
Forget guesswork. Our unit integrates a proprietary electronic weighing system with hydraulic load cells located on the loading arm. The operator can monitor the exact weight of aggregate, cement, and water in real-time via the cabin display. This ensures strict adherence to mix recipes with ±2% accuracy, allowing you to produce certified structural concrete comparable to commercial batching plants.

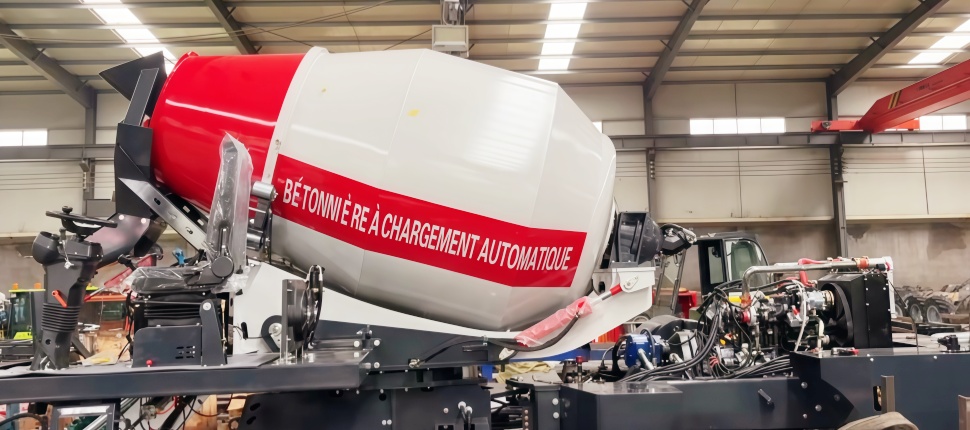

Heavy-Duty Manganese Steel Drum
Built for Abrasive Environments.
Durability is in our DNA. The entire mixing drum is constructed from 5-8mm thick high-strength Q345B manganese steel, offering superior wear resistance compared to standard carbon steel. Inside, the double-screw logarithmic variable pitch blades ensure homogenous mixing in minutes while minimizing residual material during discharge, extending the drum’s service life by over 30%.
Single-Joystick Pilot Control
Master Operation in 15 Minutes.
Complex operations are simplified into a single hydraulic pilot joystick. This intuitive “all-in-one” control manages the bucket loading, arm lifting, drum mixing, and rotation. The ergonomic design significantly reduces operator fatigue during long shifts and lowers the skill barrier, allowing even inexperienced drivers to operate the machine efficiently with minimal training.

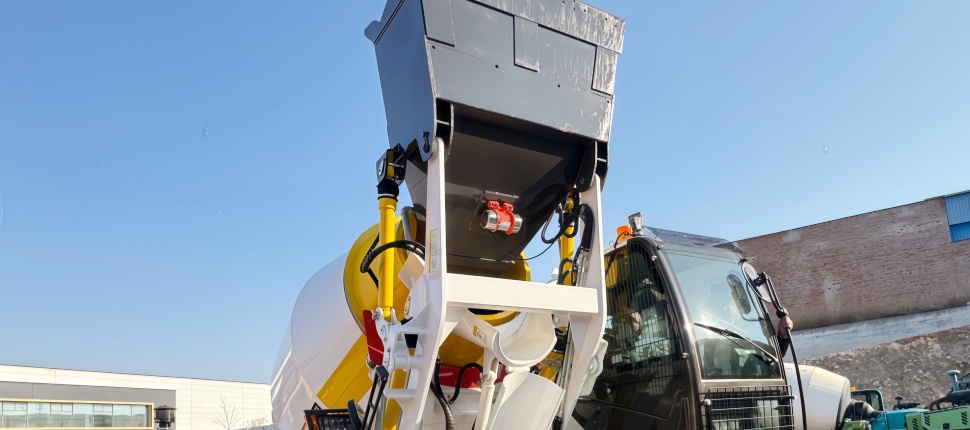

High-Efficiency Loading Bucket
Replace Your Wheel Loader.
The hydraulic loading bucket is not just a shovel; it is a precision tool. Equipped with high-pressure cylinders for rapid lifting and pre-installed cement bag cutting blades, it streamlines the feeding process. The bucket design prevents material spillage and ensures a full load cycle is completed in under 60 seconds, completely eliminating the need for an auxiliary wheel loader on site.
Dingjoin Self Loading Concrete Mixer Truck Prices & ROI Analysis
Transparent Pricing Structure
Unlike trading companies that add 20-30% markups, Dingjoin offers Factory-Direct Pricing. We manufacture every unit in-house, ensuring you pay only for the machine, not for middlemen commissions.
Our pricing is tiered to fit your project scale:
- Entry-Level (1.2-2.0m³): Comparable to the cost of a standard small wheel loader.
- Pro-Series (2.6-4.0m³): Priced significantly lower than purchasing a separate loader + mixer truck + batching plant.
- Heavy-Industry (5.5-6.5m³): A fraction of the cost of setting up a stationary concrete plant.
ROI Breakdown: The “Profit Formula”
The Dingjoin Self-Loading Mixer Truck is engineered to pay for itself within 3 to 6 months of operation. Here is the math based on global construction standards:
A. Material Cost Savings (The Biggest Win)
Commercial ready-mix concrete includes transport fees, waiting charges, and supplier profits. By mixing on-site with a Dingjoin unit, you only pay for raw materials (cement, sand, aggregate).
- Average Saving: $15 – $30 per cubic meter (depending on local cement prices).
- Daily Impact: If you pour 50m³ per day, you save $750 – $1,500 daily just on materials.
B. Labor & Equipment Consolidation
Eliminate the rental fees for wheel loaders, mixer trucks, and generator sets.
- Traditional Crew: 1 Loader Operator + 1 Mixer Driver + 3 Laborers = 5 Wages.
- Dingjoin Method: 1 Operator = 1 Wage.
- Result: Slash monthly payroll expenses by 80%.
Visual Comparison Table
Cost Comparison: 1000m³ Project
| Cost Factor | Traditional Ready-Mix / Batching Plant | Dingjoin Self-Loading Mixer | Your Profit |
| Equipment Required | Wheel Loader + Mixer Truck + Pump | 1 Unit (All-in-One) | Save 60% on Capex |
| Labor Force | 4-5 Workers | 1 Operator | Save 4 Wages |
| Concrete Cost | ~$100/m³ (Market Price) | ~$70/m³ (Raw Material Cost) | Save $30/m³ |
| Logistics | Dependence on Supplier Schedule | Zero Waiting Time | Project Speed +40% |
Tailored Solutions For Every Industry
🏗️ For General Construction
For contractors facing tight deadlines and rising labor costs, Dingjoin mixers are the ultimate force multiplier. By combining loading, weighing, and mixing into one machine, you can reduce your on-site crew by 3-5 workers. Ideal for foundations, floor slabs, and urban renovation, giving you the independence to pour concrete whenever the schedule demands, without waiting for supplier trucks.
🛣️ For Road & Infrastructure
Linear projects like highways, canals, and drainage systems require a concrete supply that moves with you. Our self-loading mixers eliminate the logistical nightmare of transporting wet concrete over long distances. The 4×4 off-road capability allows the unit to drive alongside the paving crew, delivering fresh concrete instantly at the pour point, ensuring zero waste and continuous operation.
⛰️ For Mining & Remote Areas
When your project is miles from the nearest batching plant, self-sufficiency is survival. Engineered with heavy-duty engines (Cummins/Weichai) and reinforced manganese steel drums, our machines thrive in harsh mining environments and off-grid locations. They turn locally sourced aggregate into certified concrete on-site, saving you huge logistics costs and preventing project stoppages.
🤝 For Rental & Leasing
A high-ROI asset for your rental fleet. The Dingjoin mixer appeals to a wide range of customers, from small DIY builders to large infrastructure firms, ensuring high utilization rates. With its simple single-joystick control (learnable in 15 minutes) and rugged minimal-maintenance design, it maximizes rental uptime and holds excellent resale value after years of service.
🧱 For Precast & Concrete Supply
Perfect for precast yards or starting a micro-batching business. Unlike stationary plants that require high setup costs and land, our mobile unit offers precision weighing for specialized mix recipes (dry-mix or wet). It allows you to produce high-quality concrete blocks, pipes, or barriers on-demand, scaling your production volume without the heavy capital expenditure.
Tailored Solutions For Every Industry
Civil Contractors & Builders
🏗️ For General Construction
For contractors facing tight deadlines and rising labor costs, Dingjoin mixers are the ultimate force multiplier. By combining loading, weighing, and mixing into one machine, you can reduce your on-site crew by 3-5 workers. Ideal for foundations, floor slabs, and urban renovation, giving you the independence to pour concrete whenever the schedule demands, without waiting for supplier trucks.
Road & Infrastructure Projects
🛣️ For Road & Infrastructure
Linear projects like highways, canals, and drainage systems require a concrete supply that moves with you. Our self-loading mobile concrete mixers eliminate the logistical nightmare of transporting wet concrete over long distances. The 4×4 off-road capability allows the unit to drive alongside the paving crew, delivering fresh concrete instantly at the pour point, ensuring zero waste and continuous operation.
Mining & Remote Sites
⛰️ For Mining & Remote Areas
When your project is miles from the nearest batching plant, self-sufficiency is survival. Engineered with heavy-duty engines (Cummins/Weichai) and reinforced manganese steel drums, our machines thrive in harsh mining environments and off-grid locations. They turn locally sourced aggregate into certified concrete on-site, saving you huge logistics costs and preventing project stoppages.
Equipment Rental Companies
🤝 For Rental & Leasing
A high-ROI asset for your rental fleet. The Dingjoin mixer appeals to a wide range of customers, from small DIY builders to large infrastructure firms, ensuring high utilization rates. With its simple single-joystick control (learnable in 15 minutes) and rugged minimal-maintenance design, it maximizes rental uptime and holds excellent resale value after years of service.
Precast & Small Batch Suppliers
🧱 For Precast & Concrete Supply
Perfect for precast yards or starting a micro-batching business. Unlike stationary plants that require high setup costs and land, our mobile unit offers precision weighing for specialized mix recipes (dry-mix or wet). It allows you to produce high-quality concrete blocks, pipes, or barriers on-demand, scaling your production volume without the heavy capital expenditure.
Why Dingjoin Self Mixing Concrete Mixer Outperforms the Competition
1. Heavier Curb Weight = Stronger Build
We don’t sell ‘lightweight’ toys.
Check the specs carefully: a Dingjoin mixer is typically 500-800kg heavier than average market competitors. Why? Because we use thicker Q345B Manganese Steel for the chassis and drum, not standard carbon steel. More steel means higher stability on slopes and a machine that won’t crack under heavy loads after 2 years.
2. True Weighing Accuracy (±2%)
Concrete quality you can certify.
Many competitors offer weighing systems that drift or fail on rough terrain. Dingjoin uses a proprietary Dynamic Hydraulic Weighing System calibrated with advanced algorithms. We ensure your mix ratio is accurate within ±2%, allowing you to pour structural-grade concrete that passes engineering inspections—something cheap mixers simply cannot guarantee.
3. “Leak-Free” Hydraulic Standards
Say goodbye to messy leaks.
Hydraulic failure is the #1 nightmare for self-loader owners. We solve this by using premium Eaton/Parker seals and upgraded high-pressure hoses with double-crimped joints. Our distinct closed-circuit design ensures consistent pressure and prevents the “bleeding” issues common in lower-tier brands.
4. The 48-Hour “Torture Test”
Tested in mud, not just on paper.
While others simply paint and ship, every Dingjoin unit undergoes a mandatory 48-hour continuous load test in our proving grounds. We simulate full-load climbing, mixing, and pumping to identify and fix any potential defect before it leaves the factory. If it’s not perfect, it doesn’t ship.

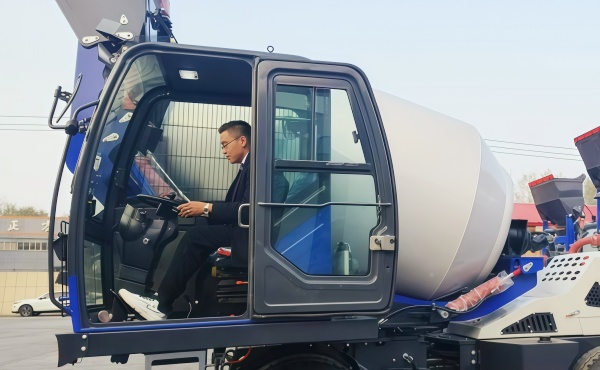

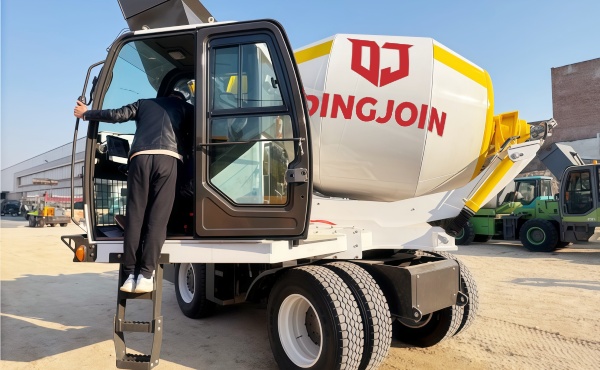

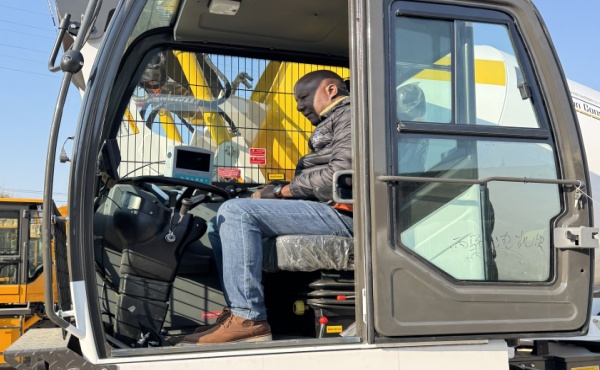

Operator Comfort Design of Our Self Load Mixer
Single-Joystick Pilot Control
We replaced the complex clutter of old-fashioned levers with a single Hydraulic Pilot Joystick. This “All-in-One” control manages bucket loading, arm lifting, and drum rotation with smooth precision. It drastically lowers the learning curve—new operators can master the machine in minutes, not days.
Climate-Controlled Cabin (A/C & Heater)
Whether in the scorching heat of Africa or the freezing winters of Siberia, our high-power Air Conditioning and Heating system creates the perfect working environment. A sealed, pressurized cabin also keeps dust and noise out, allowing the operator to focus entirely on the mixing process during long shifts.
High-Back Suspension Seat
Self-loading mixers work on bumpy, unpaved sites. We equip every unit with an adjustable Air-Suspension Seat with damping technology. It absorbs shocks and vibrations from the 4×4 driving, significantly reducing operator back fatigue and ensuring safety during off-road transport.
360° Visibility & Smart Display
The cabin features expansive curved glass for a panoramic view. Coupled with a High-Definition Reverse Camera and an integrated Weighing System Display, the operator has full situational awareness. They can monitor the rear environment and concrete mix ratios simultaneously without leaving the seat.
How Can Self Load Mixer Work With Other Construction Machinery

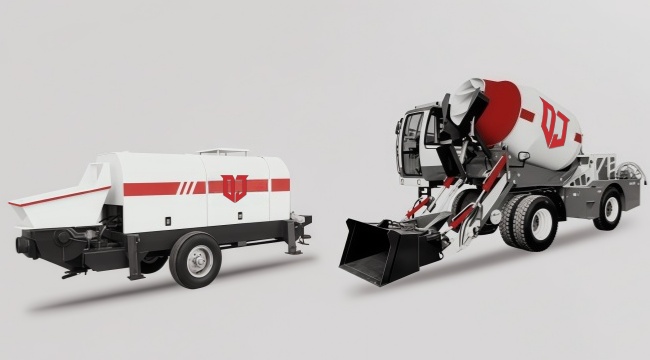

1. Self Loading Mixer + Concrete Pump = Continuous Mobile Batching Station.
Best for: High-rise buildings, Tunnels, Long-distance pouring
This is the most popular combination in the industry. The Self propelled concrete mixer acts as a mobile batching plant, discharging fresh concrete directly into the hopper of a Trailer Pump or Line Pump.
- The Benefit: Allows you to pump concrete vertically to upper floors or horizontally into tunnels without setting up a static batching plant. One mixer can feed a small pump continuously.
2. Self Loading Mixer + Excavator = Zero Waiting Time for Foundations.
Best for: Foundations, Trenching, Pipe Laying
As your Excavator digs trenches or pits, the Self mix concrete truck follows immediately behind to pour the foundation or bedding.
- The Benefit: Eliminates the gap between digging and pouring. You don’t need to coordinate with external ready-mix trucks, preventing the trenches from collapsing due to rain or delay.

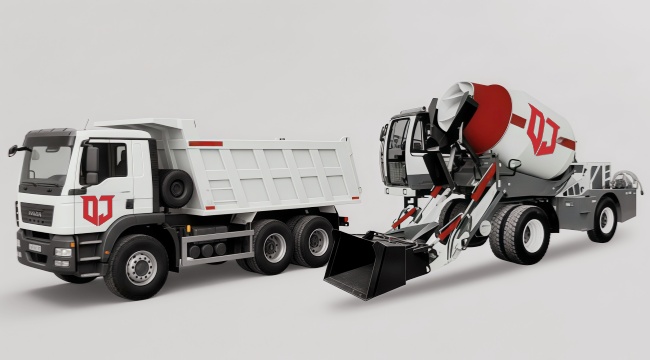

3. Self Loading Mixer + Dump Truck = Non-Stop Production Loop.
Best for: Large-scale Remote Sites
For massive projects where aggregate stockpiles are far from the pour site, use Dump Trucks to transport sand and stone to the mixer’s location.
- The Benefit: The self loading rough terrain concrete mixers stays at the pouring point (doing what it does best), while dump trucks handle the raw material logistics. This ensures maximum daily output of 100m³+.
4. Self Loading Mixer + Road Roller = Instant Road Repairs.
Best for: Road Repair, Floor Hardening
For road maintenance or factory flooring, the mixer discharges the base concrete, followed immediately by leveling and compaction with a Road Roller.
- The Benefit: Ideal for patch repairs on highways or remote roads where bringing in a large commercial mixer truck is too expensive or logistically impossible.

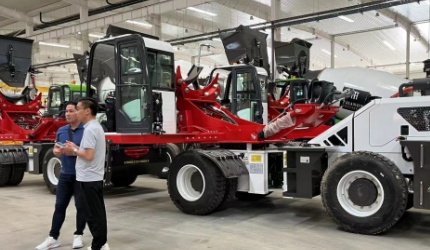

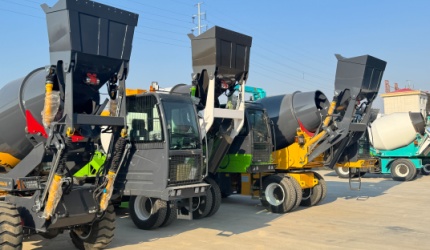

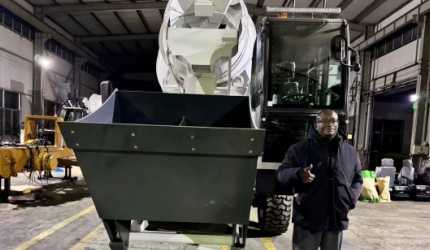

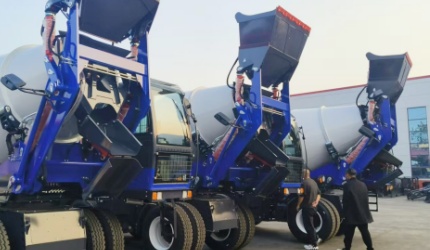

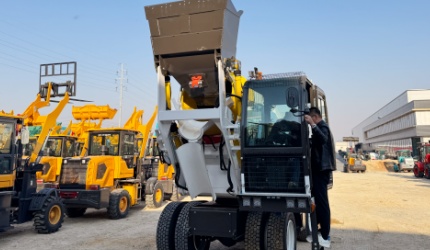

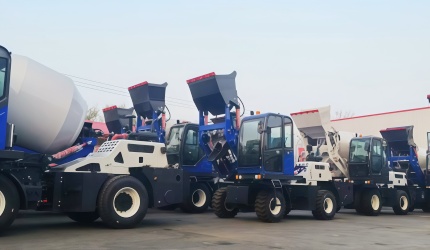

Global Cases of Self Loading Mixer Machine
While Dingjoin has established a commanding market leadership across Latin America and Africa—conquering some of the world’s toughest high-altitude and off-road environments—our success is truly global. Our self-loading feed mixers are also widely deployed and highly rated by contractors throughout Asia and beyond. No matter the continent, from remote mining sites to fast-paced urban projects, customers worldwide trust Dingjoin for uncompromised performance and seamless international logistics.
